Briggs & Stratton 326400 - Manual (Page 23)

326400
6179−23

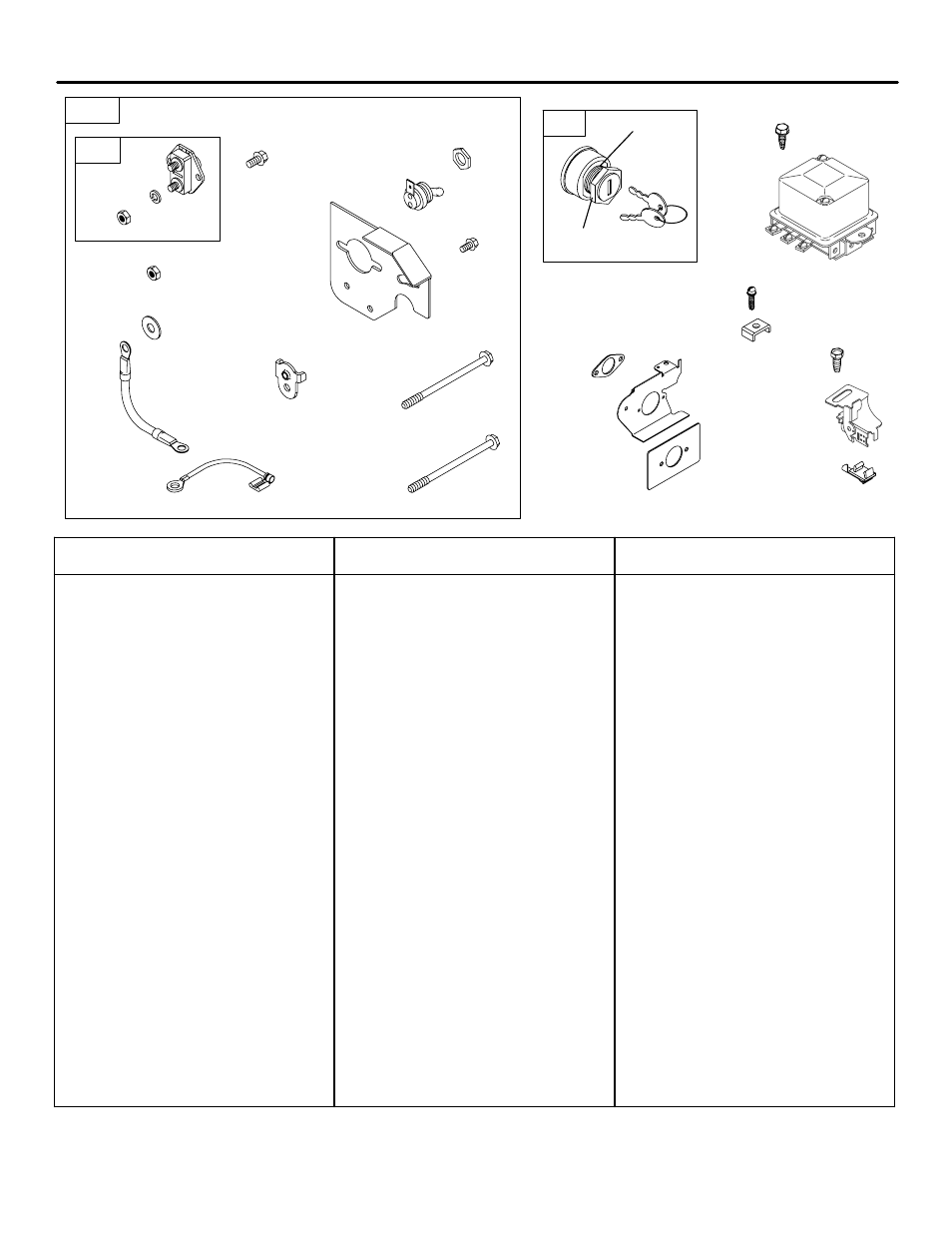

Assemblies include all parts shown in frames.
03/18/2009
23
478A
1113
577
795A
945A
578C
501A
310A
526
892
990
775
627
621
215A
51
51B
497
265
267A
840A
500
664
641
575
636
462
310
361
1225
51 27381 Gasket−Intake
51B 692917 Gasket−Intake
215A 291871 Guide−Air
265 692179 Clamp−Casing
267A 93107 Screw
(Casing Clamp)
−−−−−−− Note −−−−−
691044 Screw
(Casing Clamp)
Used on Type No(s).
0644, 0672.
310 690323 Screw
(Starter Motor)
(4” Long)
310A 692329 Screw
(Starter Motor)
(5” Long)
361 93415 Screw
(Starting Switch)
462 690282 Washer
(Starter Cable)
478A 395410 Panel
497 692198 Screw
(Stopswitch Bracket)
500 691086 Washer
(Key Switch)
501A Regulator
(Flat Mount)
(Delco Remy No.
1118988)
(NO LONGER
AVAILABLE)
Used on Type No(s).
0199.
526 690297 Screw
(Regulator)
575 692303 Switch−Starting
577 690630 Cable−Starter
578C 690647 Wire Assembly
621 297472s Switch−Stop
627 Bracket−Stopswitch
(NO LONGER
AVAILABLE)
636 696198 Nut
(Starting Switch)
(Terminal)
641 691075 Washer
(Starting Switch)
664 691087 Nut
(Key Switch)
775 690315 Nut
(Toggle Switch)
795A 496590 Switch−Toggle
840A 395408 Kit−Panel
(Toggle Switch)
−−−−−−− Note −−−−−
395409 Kit−Panel
(Key Switch)
892 392833 Switch−Key
945A 692132 Bracket−Starter Motor
990 691959 Key Set
1113 691681 Screw
(Panel)
1225 691029 Nut
(Starting Switch)
Engine Gasket Set−Reference 358
Carburetor Overhaul Kit−Reference 121
Valve Gasket Set−Reference 1095
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
