Page 7: Operating weight and ground pressure
R 9350 Arctic
7
Shovel Attachment
with Shovel Boom 6,75 m/22’2” and Stick 4,20 m/13’8”
T
0
2
4
6
8
10
12
14
m
0 ft
10
20
30
40
50
0
-2
-4
0
-10
2
4
6
8
10
12
14
16
m
10
20
30
40
50
ft
17
60
Bottom Dump Bucket
Cutting width SAE
mm/in 4100/161
1)
4100/161
1)
4100/161
1)
Capacity SAE heaped
m
3
/yd
3
15,30/20
17,00/22.2
18,00/23.5
Weight
kg/lb 30000/66,140
31000/68,340
31500/69,450
Suitable for material up to a specific weight of
t/m
3
/lb/yd
3
2,10/3,570
1,90/3,230
1,80/3,000
Wear kit level
II
II
II
1)
Bottom dump bucket with delta cutting edge and tooth system Posilok size S 95.
Wear kit level II: For heavy rock, not deteriorated or cracked. Has to be shot to be dug.
Additional bottom dump buckets on request.

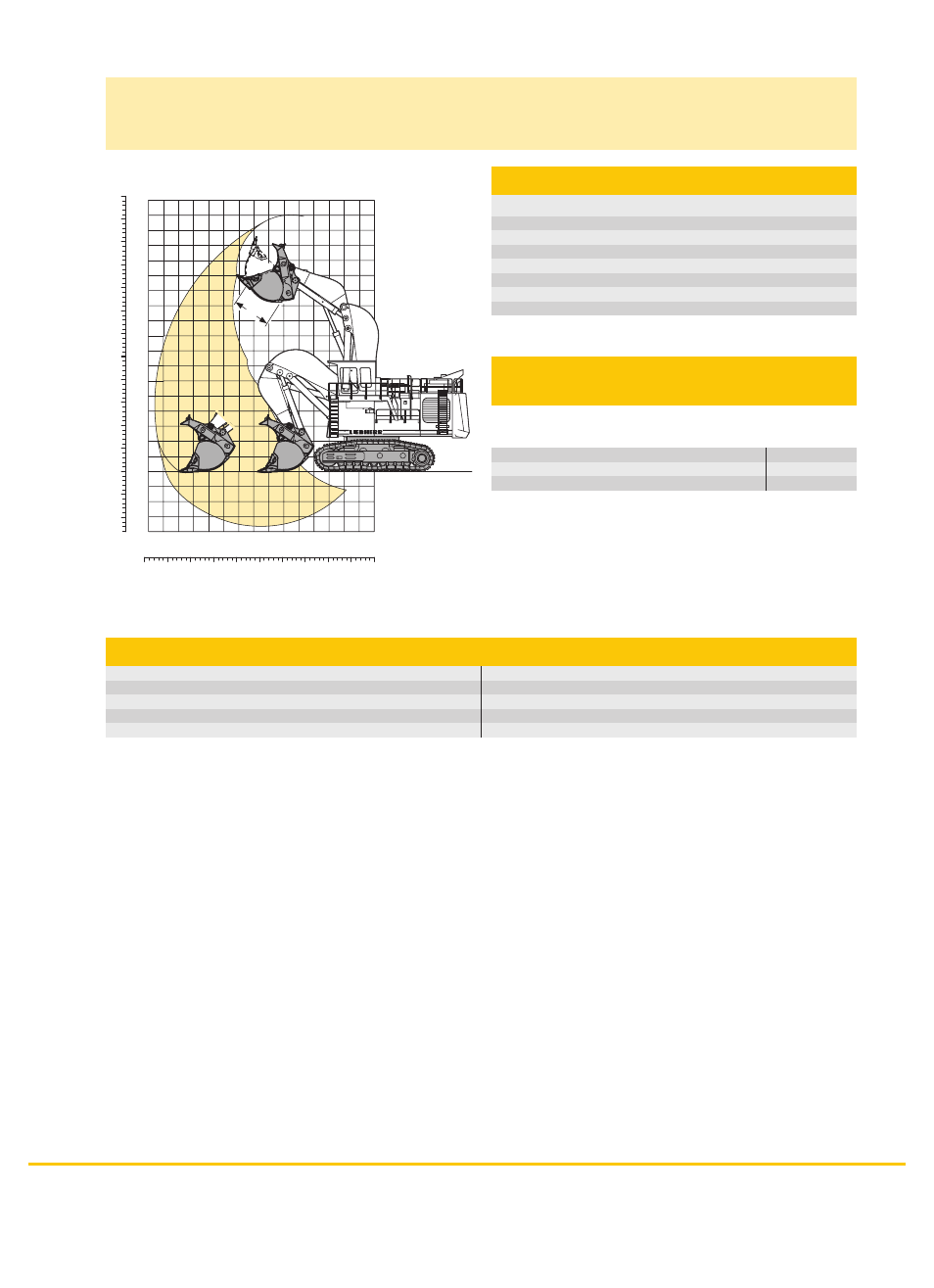

Digging Envelope
Max. reach at ground level
13,75 m/45’1”
Max. dump height
11,20 m/36’9”
Max. crowd length
5,20 m/17’1”
Bucket opening width T
2500 mm/98”
Crowd force at ground level 1040 kN (106,0 t)/233,801 lbf (233,690 lb)
Max. crowd force
1300 kN (132,5 t)/292,252 lbf (292,110 lb)
Max. breakout force
1060 kN (108,0 t)/238,297 lbf (238,100 lb)
Operating Weight
and Ground Pressure
The operating weight includes the basic machine with shovel attach-
ment and a 18,00 m
3
/23.5 yd
3
bucket.
Pad width
mm/in 850/34
Weight
kg/lb 310000/683,400
Ground pressure
kg/cm
2
/psi 2,58/36.69
