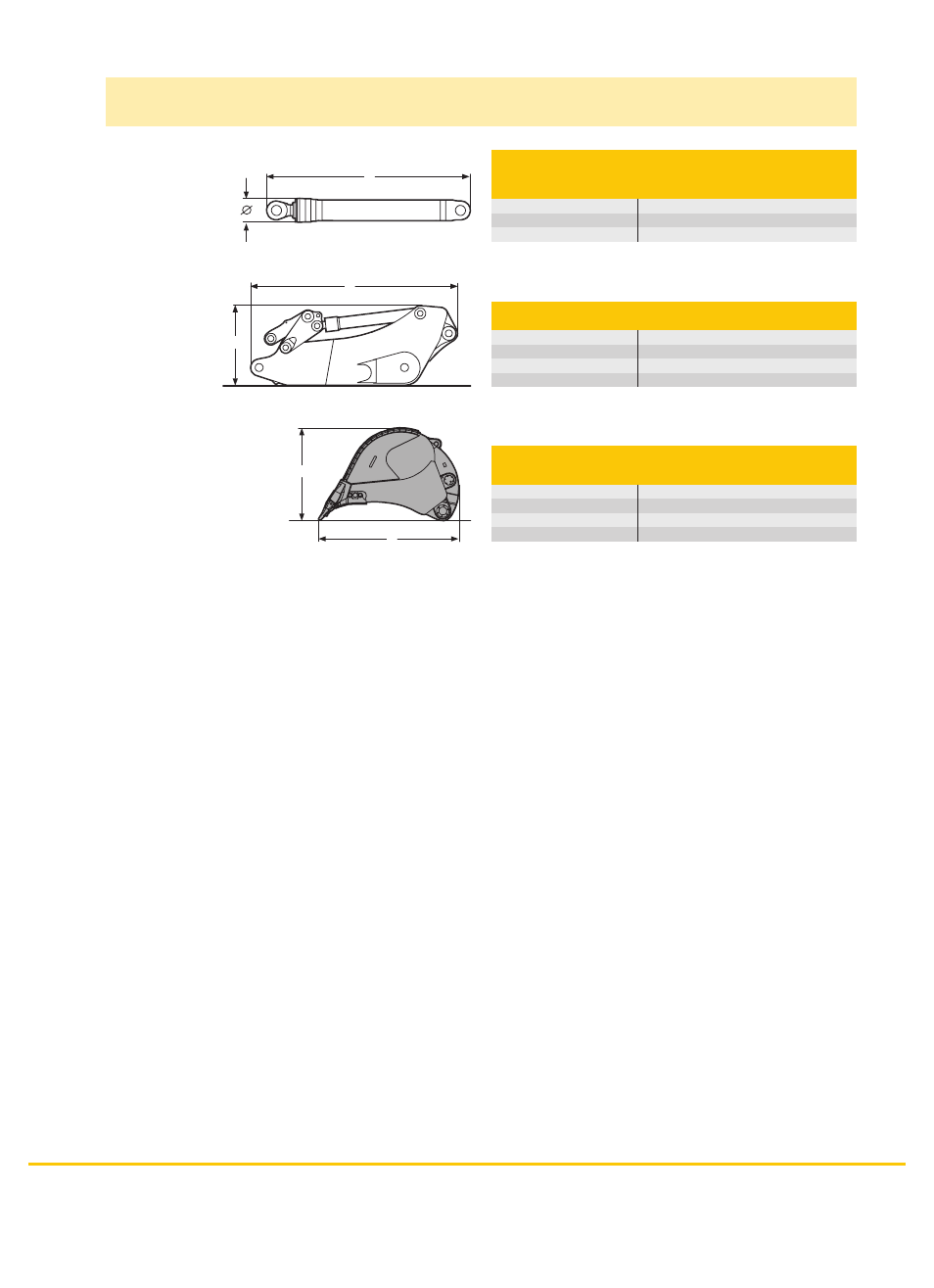

Component Dimensions and Weights
L
L
H
L
H
Stick with Bucket Cylinders
L Length mm/ft in 6000/19’ 8”
H Height mm/ft in 2400/ 7’10”
Width mm/ft in 1750/ 5’ 9”
Weight kg/lb 18940/41,670
Hoist Cylinders (two)
for Backhoe Attachment
L Length mm/ft in 4680/15’ 4”
Ø Diameter mm/in 550/ ’ 22”
Weight kg/lb 2 x 3800/2 x 8,380
Backhoe Bucket 15,30 m 3 / 17,00 m 3 / 18,00 m 3 /
20.0 yd 3 22.2 yd 3 23.5 yd 3
L Length mm/ft in 4000/13’ 1” 4000/13’1” 4200/13’9”
H Height mm/ft in 2700/ 8’10” 2800/ 9’2” 2800/ 9’2”
Width mm/ft in 3500/11’ 6” 3500/11’6” 3500/11’6”
Weight kg/lb 17000/37,480 17790/39,220 18155/40,020
