The more R 600a refrigerant there is in the appliance, the
larger the room in which the appliance is standing needs to
be. In rooms that are too small, a flammable mix of gas and
air may be created if there is a leak. According to the EN
378 standard, every 11 g of R 600a refrigerant requires at
least 1 m 3 space in the room for the appliance. The amount
of refrigerant in your appliance is on the type plate inside the
appliance.
u Detach the connecting cable from the rear of the appliance,
removing the cable holder at the same time because other-
wise there will be vibratory noise!
u Remove the protective film from the decorative trims and
drawer fronts.
u Remove all transit supports.
The spacers supplied with some appliances must be used to
achieve the stated energy consumption. These will extend the
depth of the appliance by approx. 35 mm. The appliance is fully
functional if the spacers are not used, but does have a slightly
higher energy consumption.
u In the case of an appliance with
enclosed wall spacers, mount the
wall spacers on the back of the
appliance at the top left and right.
u Dispose of packaging material (see 4.5) .
u Align the appliance so that it
stands firmly and on a level by
applying the accompanying
spanner to the adjustable-
height feet (A) and using a
spirit level.
u Then support the door: Extend
the adjustable foot at the turn
hinge (B) until it rests on the
floor and then make a further
90° turn.
Note
u Clean the appliance (see 6.2) .
If the appliance is installed in a very damp environment,
condensate may form on the outside of the appliance.
u Always see to good ventilation at the installation site.
4.3 Changing over the door hinges
WARNING
Risk of injury and damage due to pieces of broken glass!
The glass door is heavy. If it falls or there is impact on the glass
edges, the glass pane may shatter.
u Protect the door properly when detaching it!
u Detach the glass door working in a team of two.
u Put the door down on a soft mat.
Ensure that the following tools are to hand:
q
Torx® 25
q Torx® 15
q Screwdriver
q Cordless screwdriver, if necessary
q
A soft mat
4.3.1 Detaching the upper soft stop mecha-
nism

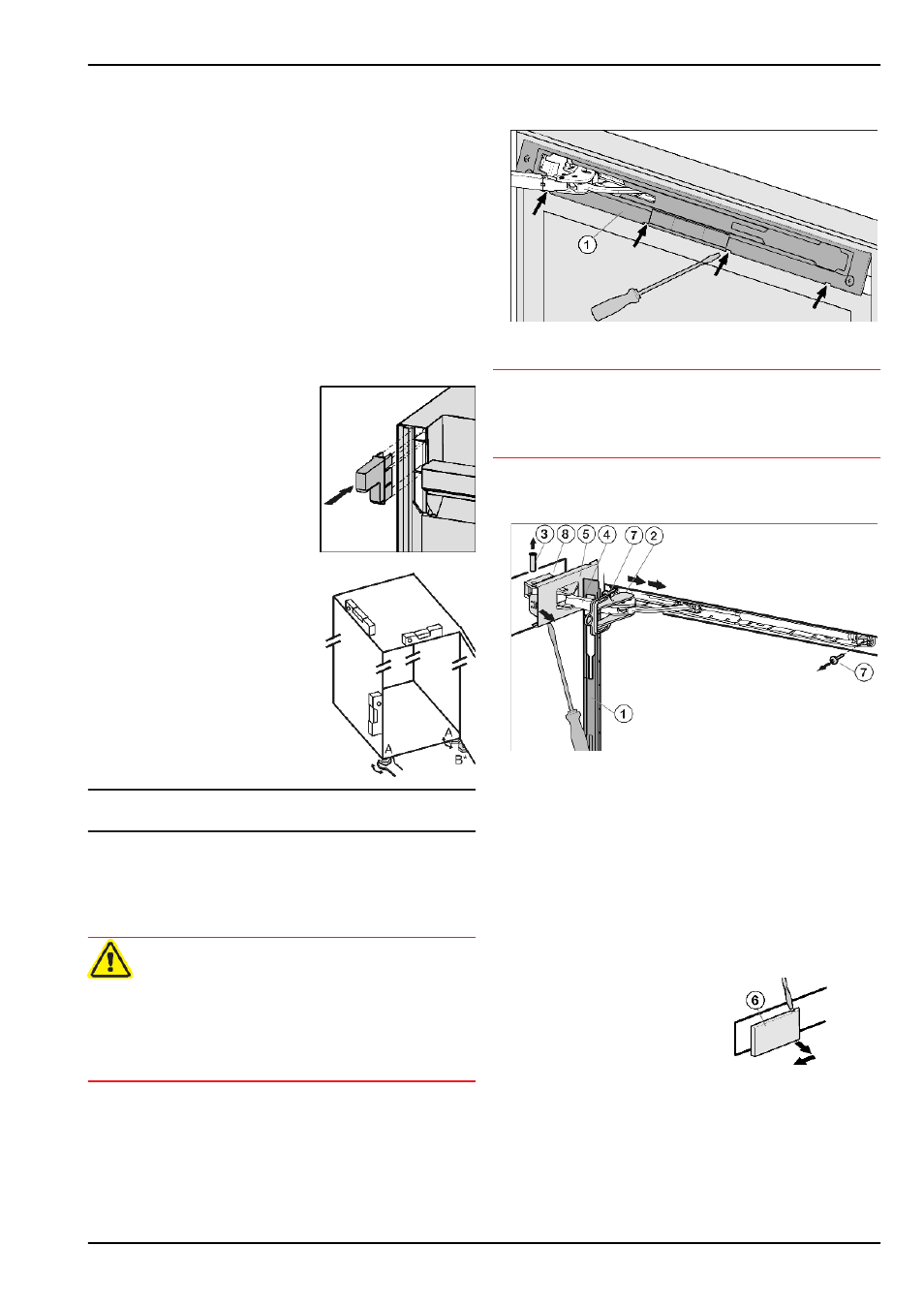

Fig. 4
u Open the upper door.
NOTICE
Risk of damage!
If the door seal is damaged, the door may fail to close properly
and the cooling will be inadequate.
u Do not damage the door seal with the screwdriver!
u Disengage and remove the faceplate Fig. 4 (1) using a flat-
blade screwdriver.
w The faceplate is attached over the soft stop bracket.
Fig. 5
u Slide the faceplate forwards over the soft stop bracket
Fig. 5 (4) in the direction of the appliance.
u Snap the accompanying safety lock Fig. 5 (2) into the
oblong hole.
w The safety lock prevents the hinge from snap-closing.
u Using a screwdriver, detach the cover Fig. 5 (5) on the hinge
side as far as the first detent.
w The pin becomes visible.
u Press the pin Fig. 5 (3) out from underneath.
u Press the soft stop bracket Fig. 5 (4) towards the door.
u Fully detach the cover Fig. 5 (5) on the hinge side and
remove it.
u Remove the faceplate Fig. 5 (1) .
u Using a screwdriver, detach the
cover on the handle side
Fig. 6 (6) and remove it outwards.
Fig. 6
u Unscrew the soft stop unit (2x Torx® 15) Fig. 5 (7) .
u Pull the soft stop unit out a little, push it in the direction of the
handle side and swing it out.
u Set the soft stop unit aside.
