R 954 C Litronic Machine for Industrial Applications 29

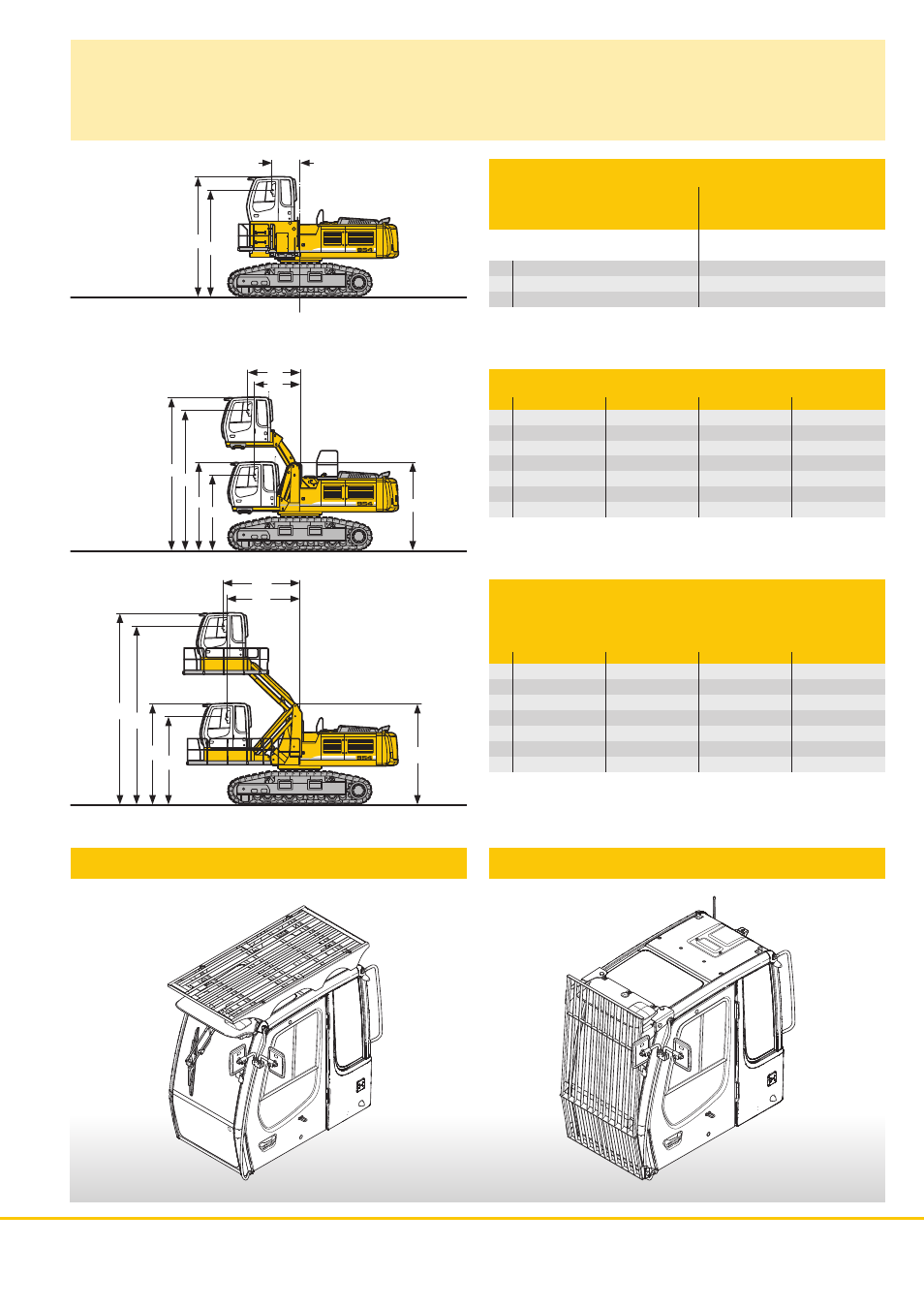

ChoiceofCabElevation
andCabProtection
D
B
C
D1
B1
E C1
B2
D2
C2
D1
B1
E
C1
B2
D2
C2
RigidCabElevation
HD-W EW S-EW S-EW HD-W EW S-EW S-EW
HD HD
mm mm mm mm mm mm mm mm
Height
1,200 1,200 1,200 1,200 2,000 2,000 2,000 2,000
B 4,020 4,165 4,405 4,485 4,820 4,965 5,205 5,285
C 4,515 4,660 4,900 4,980 5,315 5,460 5,700 5,780
D 1,105 1,105 1,105 1,105 1,105 1,105 1,105 1,105
Additional weight with fixed cab elevation 2,000 mm in relation to cab
elevation 1,200 mm: 400 kg
HydraulicCabElevation
HD-W mm EW mm S-EW mm S-EWHD mm
B1 2,815 2,960 3,200 3,280
B2 5,315 5,460 5,700 5,780
C1 3,315 3,460 3,700 3,780
C2 5,815 5,960 6,200 6,280
D1 1,800 1,800 1,800 1,800
D2 2,050 2,050 2,050 2,050
E 3,255 3,400 3,640 3,720
Additional weight in relation to cab elevation 1,200 mm: 500 kg
FOPSGuard FrontGuard
HydraulicCabElevation
(Parallelogram)
+IntermediatePiece0.5m
HD-W mm EW mm S-EW mm S-EWHD mm
B1 3,320 3,465 3,705 3,785
B2 6,890 7,035 7,275 7,355
C1 3,815 3,960 4,200 4,280
C2 7,385 7,530 7,770 7,850
D1 2,890 2,890 2,890 2,890
D2 3,040 3,040 3,040 3,040
E 3,805 3,950 4,160 4,240
Additional weight in relation to cab elevation 1,200 mm: 1,600 kg
