R 954 C Litronic Machine for Industrial Applications
IndustrialAttachment
withIndustrial-TypeGooseneckBoom12.50m

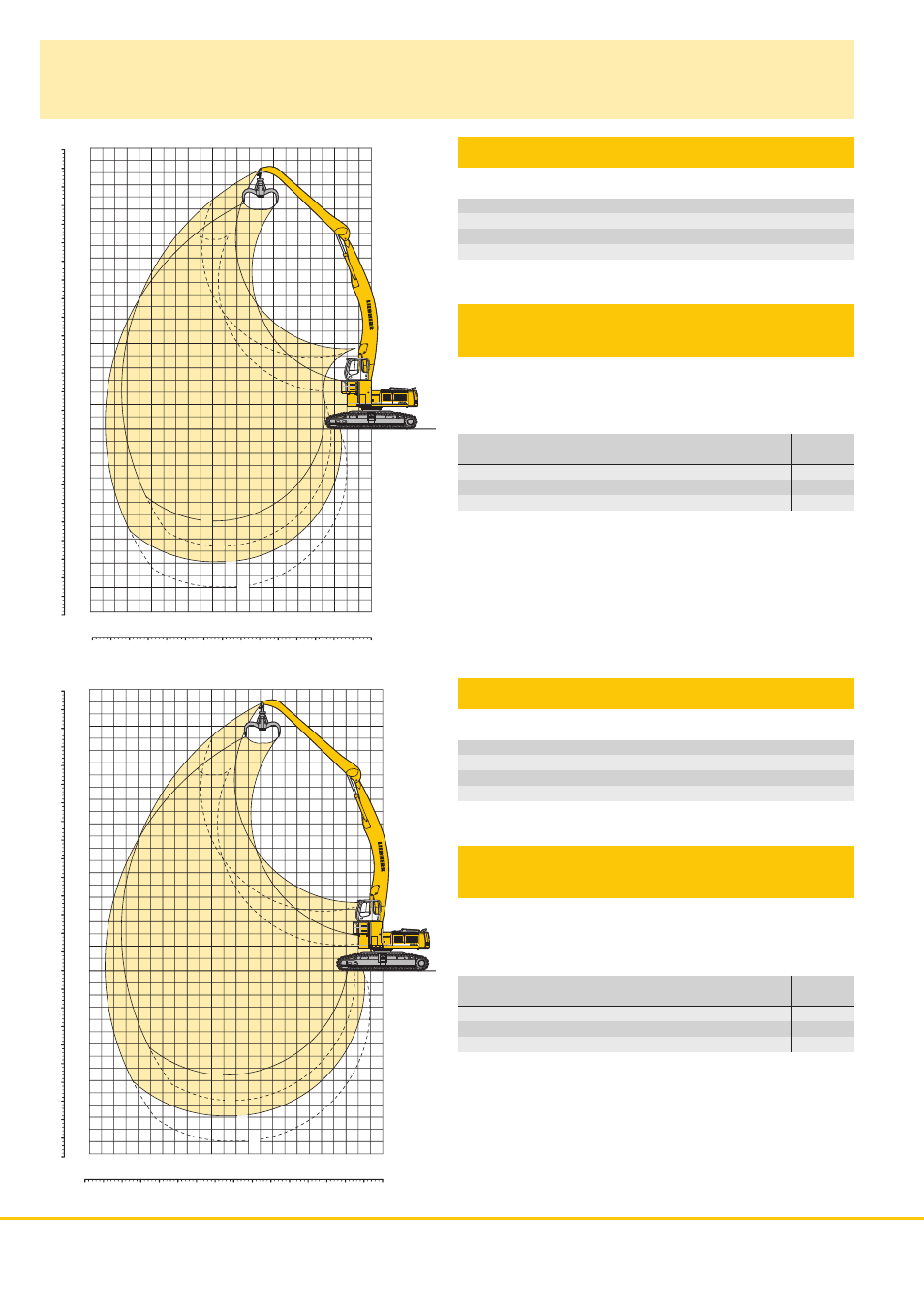

AttachmentEnvelope
Kinematic variants 3C/3D
1 with industrial stick 10.00 m (3D)
2 with industrial stick 10.00 m and grapple model 72 C (3D)
3 with industrial stick 10.00 m (3C)
4 with industrial stick 10.00 m and grapple model 72 C (3C)
OperatingWeight
andGroundPressure
Operating weight includes basic machine with rigid cab elevation
2.00 m, counterweight 14.5 t, industrial-type gooseneck boom
12.50 m, industrial stick 10.00 m and grapple model 72 C with 5 semi-
closed tines 1.20 m
3
.
Undercarriage
S-EW HD
Pad width
mm 750*
Weight
kg 87,000
Ground pressure
kg/cm
2
0.91
* flat pads
AttachmentEnvelope
Kinematic variants 3C/3D
1 with industrial stick 9.00 m (3D)
2 with industrial stick 9.00 m and grapple model 72 C (3D)
3 with industrial stick 9.00 m (3C)
4 with industrial stick 9.00 m and grapple model 72 C (3C)
OperatingWeight
andGroundPressure
Operating weight includes basic machine with rigid cab elevation
2.00 m, counterweight 14.5 t, industrial-type gooseneck boom
12.50 m, industrial stick 9.00 m and grapple model 72 C with 5 semi-
closed tines 1.20 m
3
.
Undercarriage
S-EW HD
Pad width
mm 750*
Weight
kg 86,600
Ground pressure
kg/cm
2
0.90
* flat pads
