R 954 C Litronic Machine for Industrial Applications
21
IndustrialAttachment
withIndustrial-TypeGooseneckBoom10.50m

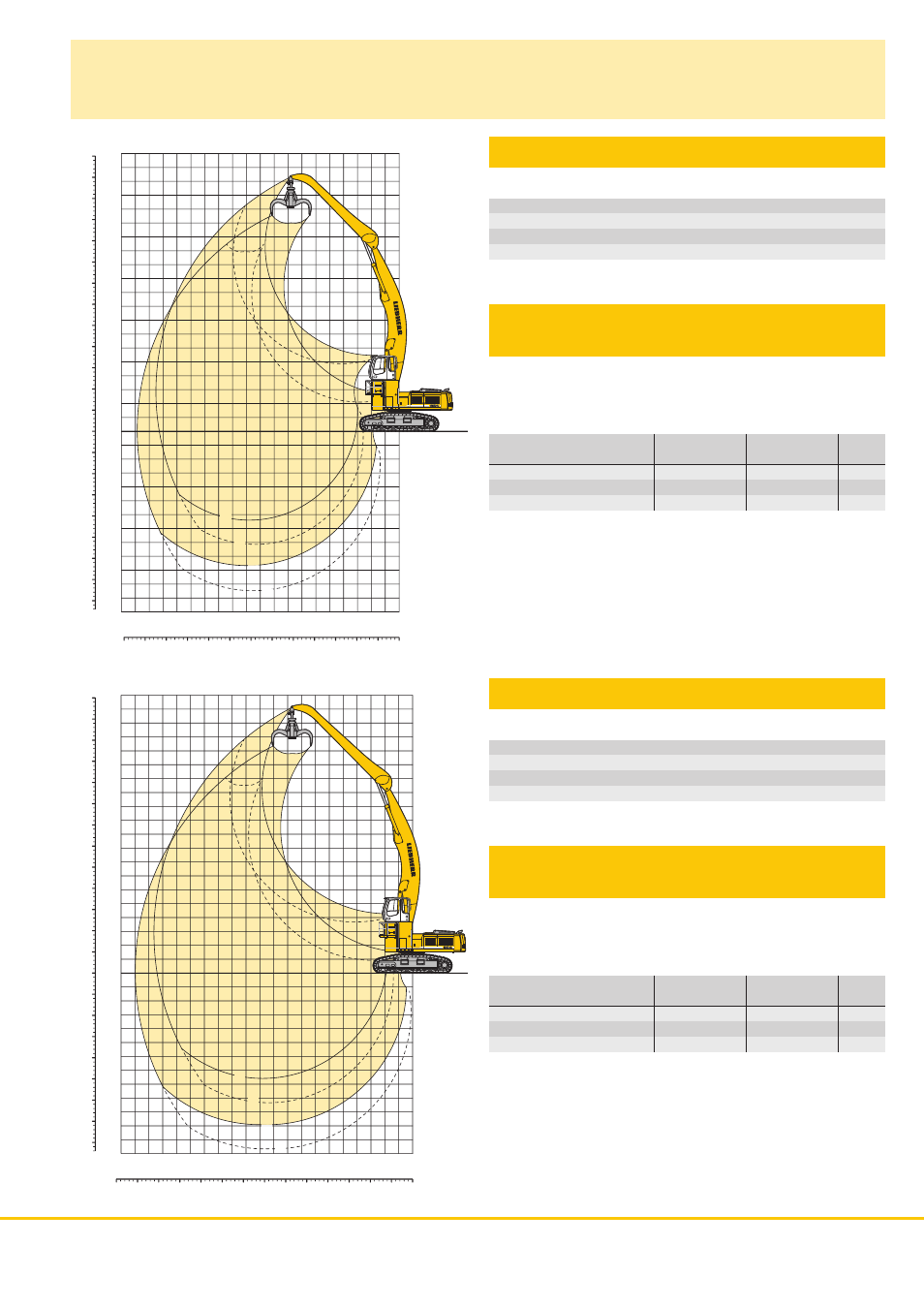

AttachmentEnvelope
Kinematic variants 3C/3D
1 with industrial stick 7.80 m (3D)
2 with industrial stick 7.80 m and grapple model 72 C (3D)
3 with industrial stick 7.80 m (3C)
4 with industrial stick 7.80 m and grapple model 72 C (3C)
AttachmentEnvelope
Kinematic variants 3C/3D
1 with industrial stick 9.00 m (3D)
2 with industrial stick 9.00 m and grapple model 72 C (3D)
3 with industrial stick 9.00 m (3C)
4 with industrial stick 9.00 m and grapple model 72 C (3C)
OperatingWeight
andGroundPressure
Operating weight includes basic machine with rigid cab elevation
2.00 m, counterweight 14.5 t, industrial-type gooseneck boom
10.50 m, industrial stick 7.80 m and grapple model 72 C with 5 semi-
closed tines 1.20 m
3
.
Undercarriage
HD-W
EW
S-EW
Pad width
mm 600
750
600
750
750
Weight
kg 64,100 65,400 70,500 71,500 75,600
Ground pressure
kg/cm
2
1.21
0.99
1.29
1.04
0.84
OperatingWeight
andGroundPressure
Operating weight includes basic machine with rigid cab elevation
2.00 m, counterweight 14.5 t, industrial-type gooseneck boom
10.50 m, industrial stick 9.00 m and grapple model 72 C with 5 semi-
closed tines 1.20 m
3
.
Undercarriage
HD-W
EW
S-EW
Pad width
mm 600
750
600
750
750
Weight
kg 64,500 65,800 70,900 71,900 76,000
Ground pressure
kg/cm
2
1.22
1.00
1.29
1.05
0.84
12
14
16
18
20
10
8
6
4
2
0
0 m
2
4
6
8
10
12
14
16
18
20
0 ft
10
20
30
40
50
60
-2
-4
-6
-8
-10
-12
40
50
60
m
ft
30
20
10
0
-10
-20
-30
-40
1
2
4
3
12
14
16
18
20
10
8
6
4
2
0
0 m
2
4
6
8
10
12
14
16
18
20
0 ft
10
20
30
40
50
60
70
-2
-4
-6
-8
-10
-12
40
50
60
m
ft
30
20
10
0
-10
-20
-30
-40
1
2
4
3
