6
Multi-tine grapples

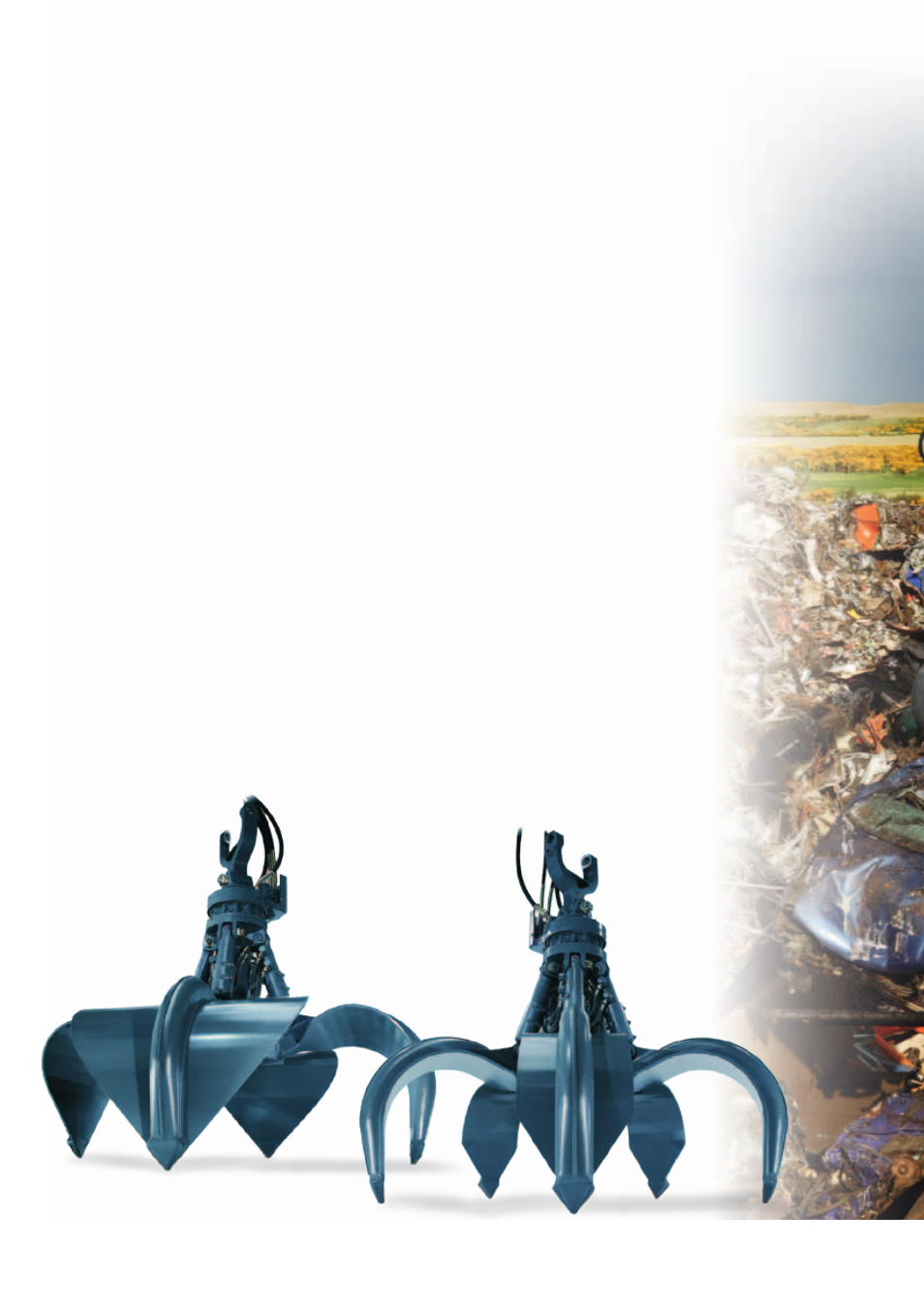

Closed tines Half-closed tines
Closed tines Half-closed tines The tried-and-trusted multi-tine grapples are es-
sential tools for every Liebherr hydraulic excavator. Thanks to their carefully de-
signed geometry, Liebherr multitine grapples are ideally matched to Liebherr ma-
chines – resulting in excellent loading behaviour and high productivity.
Multi-tine grapples (technical data on page 20/21)
• Capacity from 0.4 to 4.5 m³
• Four or five tines
• Open/half-closed/closed tines
Tines in special designs
• Open forms:
Large unit items, scrap, automobiles, etc.
• Half-closed tine forms:
Universally applicable
• Closed forms:
Bulk-goods loading, small scrap
Features
• Reinforcement with wear-resistant material
• Robust processing
• 360° endless rotation
• Optimum maintenance and servicing characteristics
• Grapples can be extended in modular format
Benefits
• Multi-tine grapples are perfectly matched to the type of excavator
• Versatile in application
• High closing power
