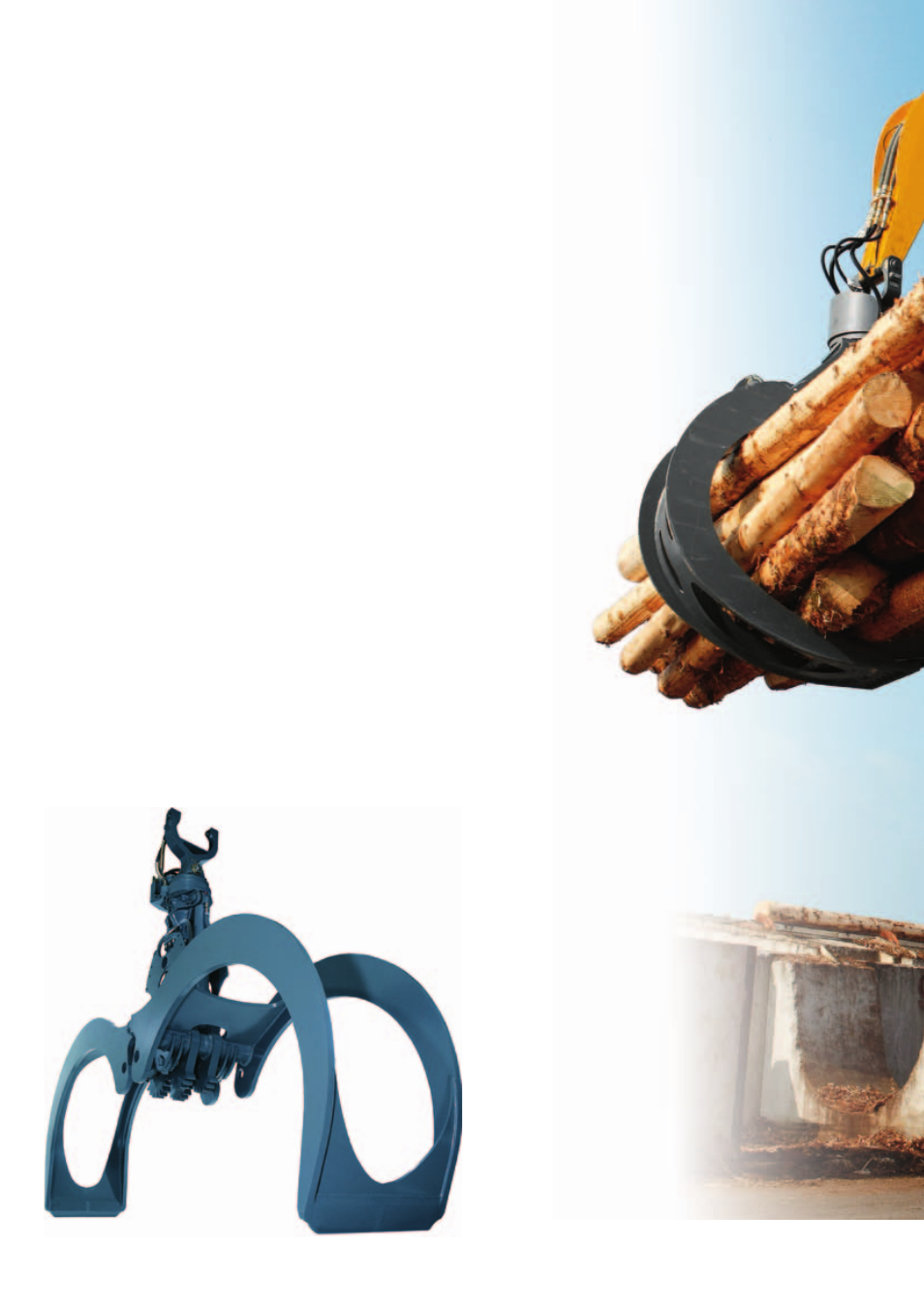

Grapples for wood handling
The wood grapple is a hydraulic attachment for hydraulic excavators, used for pick-
ing up and transporting logs and round wood. It is used mainly in open country or
on timber yards. The wood grapple has a large opening width and is specially de-
signed so that large quantities of logs and round wood can be transported, as well
as individual tree trunks.
Wood grapple (technical data on page 24)
• Size from 0.8 to 4.0 m²
• across round shells, across cutoff shells, heart-shaped shells
Job reports
• Handling of logs and round wood
• Loading and offloading of trucks, railway wagons, and ships
• Loading and emptying of transverse conveyors
• Operations in sorting plants
Features
• Robust, service-friendly rotary drive
• Long mechanical service life
• High closing force
• 360° endless rotation
Benefits
• The claw for virtually every application
• Optional wagon unloading design
• Allows for rapid load cycles
• Precise and safe placement of logs and round woods
• Optimum filling and clamping performance
Wood grapple
