LB 16 7
23.6´´
8´2´´
8´2´´
11.6´´
11´3´´
21´4´´ 16´4´´ 18´6´´
56´2´´
39´´
Dimensions and weights
Length 56.2 ft
Weight complete without counterweight 91,275 lbs
Transport CFA drilling
includes the basic machine (ready for operation) with leader, without
working tools (such as rotary, Kelly bar etc.) and without counter-
weight.
Weights can vary with the final configuration of the machine. The figures in this brochure may include options which are not within the standard
scope of supply of the machine.
7´1´´
50´5´´
18´1´´
8´1´´
8´5´´
6´5´´
4´8´´
5´1´´
35.4´´
Dimensions and weights
Length 50.39 ft
Weight complete 28,660 lbs
Lower part of the leader 2,425 lbs
Upper part of the leader with
leader top
10,140 lbs
Transport leader
includes the leader without working tools (such as
rotary, Kelly bar etc.)
Rotary
Transport weight
BAT 180 10,800 lbs

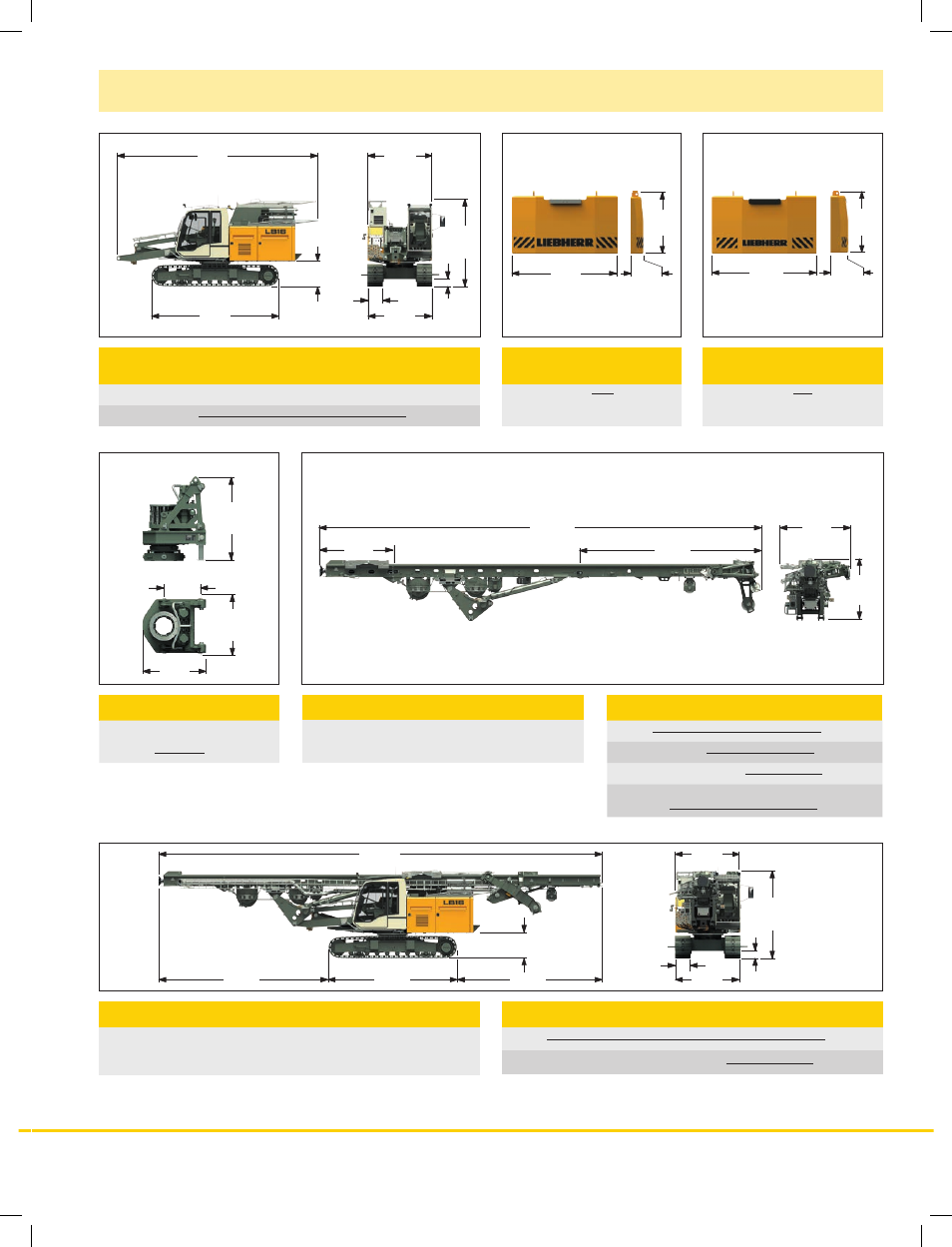

Transport dimensions and weights
25´9´´
16´4´´
39´´
23.6´´
8´2´´
8´2´´
11.8´´
11´3´´
4´9´´
11.4´´ 8´2´´
4´9´´
16.5´´ 8´2´´
Counterweight
(standard)
Counterweight 8,820 lbs
Counterweight
( optional equipment )
Counterweight 13,230 lbs
Transport basic machine
ready for operation, without counterweight.
Transport weight 54,680 lbs
