6 LB 16

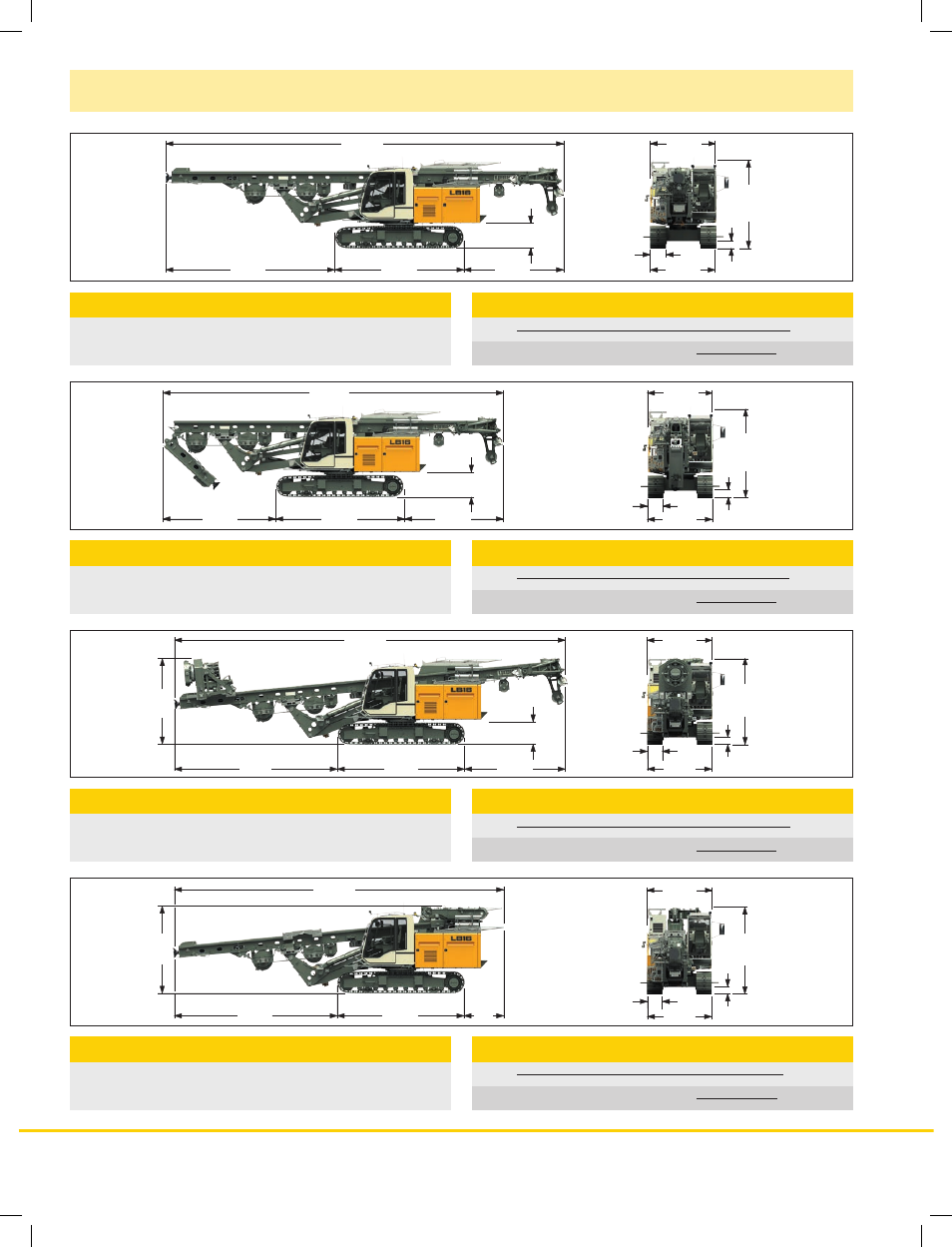

Transport dimensions and weights
21´4´´ 16´4´´ 12´9´´
50´5´´
39´´
23.6´´
8´2´´
8´2´´
11.8´´
11´3´´
Transport standard
includes the basic machine (ready for operation) with leader, without
working tools (such as rotary, Kelly bar etc.) and without counter-
weight.
Dimensions and weights
Length 50.4 ft
Weight complete without counterweight 83,335 lbs
14´4´´ 16´4´´ 12´8´´
43´4´´
39´´
23.6´´
8´2´´
8´2´´
11.8´´
11´3´´
Transport option leader folded
includes the basic machine (ready for operation) with leader, without
working tools (such as rotary, Kelly bar etc.) and without counter-
weight.
Dimensions and weights
Length 43.3 ft
Weight complete without counterweight 83,335 lbs
20´11´´ 16´4´´ 5´
42´3´´
11´2´´
23.6´´
8´2´´
8´2´´
11.8´´
11´3´´
Transport Low Head
includes the basic machine (ready for operation) with leader, without
working tools (such as rotary, Kelly bar etc.) and without counter-
weight.
Dimensions and weights
Length 42,25 ft
Weight complete without counterweight 81,350 lbs
20´11´´ 16´4´´ 13´2´´
50´5´´
39´´
11´
23.6´´
8´2´´
8´2´´
11.8´´
11´3´´
Transport with equipment
includes the basic machine (ready for operation) with leader and
rotary, without other working tools (such as Kelly bar etc.) and
without counterweight.
Dimensions and weights
Length 50.4 ft
Weight complete without counterweight 94,360 lbs
