Page 5
LB 16
5
90.1´
13´5´´
11´8´´
10´2´´
35.4´´
23.6´´
12´2´´
16´4´´
R 11´10´´
73,86´

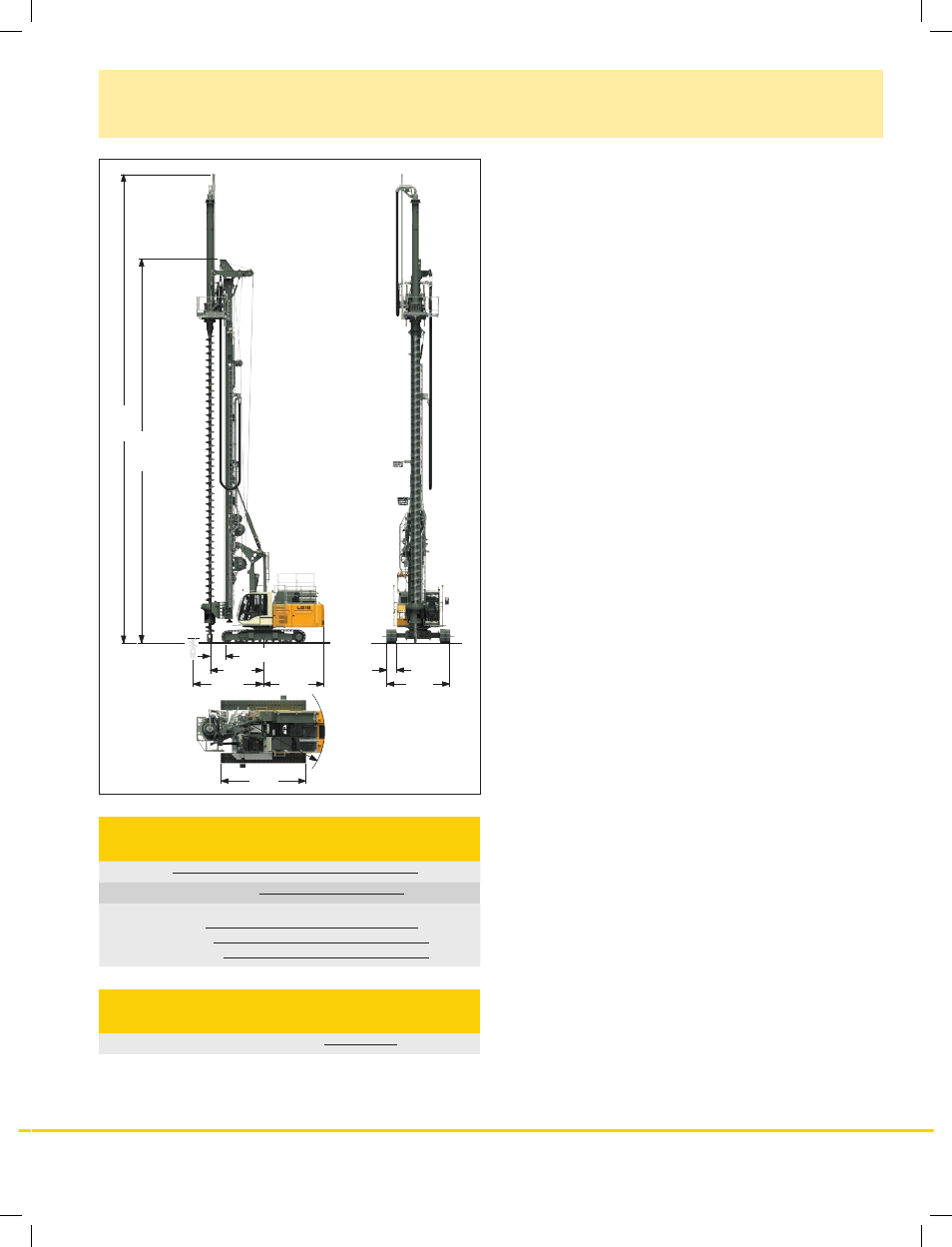

Dimensions
Basic machine LB 16 continuous flight auger drilling
Technical data
LB 16 CFA drilling
Total height
90.1 ft
Max. pull, leader on ground
94,420 lbf
Continuous rig inclination adjustment
Lateral inclination
± 3°
Forward inclination
3°
Backward inclination
3°
Operating weight
LB 16 CFA drilling
Total weight with 600 mm 3–web shoes
162,360 lbs
The operating weight includes the basic machine LB 16 (with
rotary, auger of 23.6 inch diameter, auger cleaner) and 13,230 lbs
counterweight, without equipment for casing oscillator.
