12 t 12 t 12 t
LTM 1055-3. 2
13

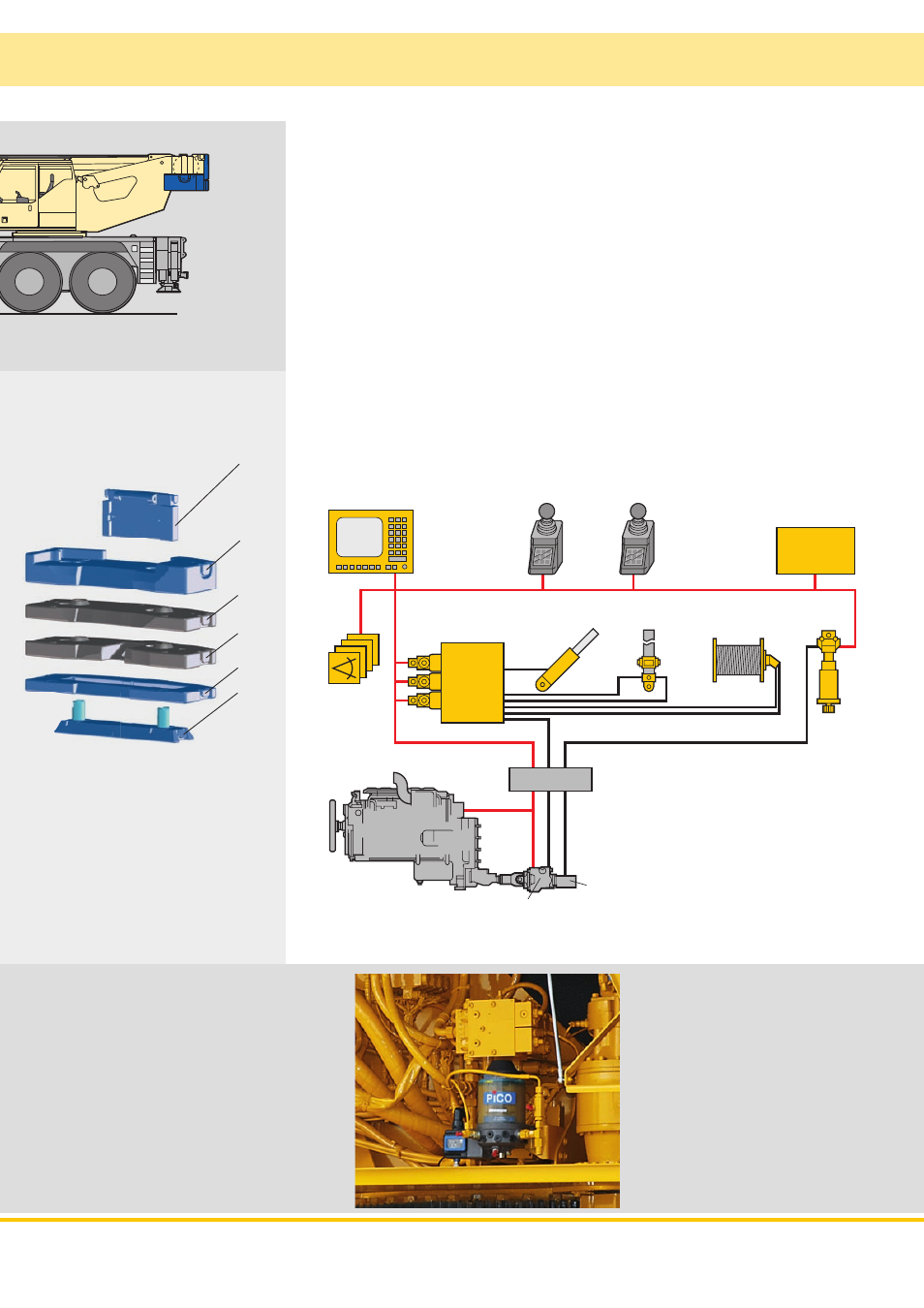

With proven components
The drive components for the crane operation are designed for high performance
and provide for sensitive and precise handling of the load. They are specially tuned
for the crane operation and proved in severe long-term tests.
• Crane drive from diesel engine in chassis
• Optimized fuel consumption by electronic engine management
• Diesel-hydraulic crane drive, open hydraulic circuits with electric „LOAD
SENSING“-control, 4 working motions simultaneously possible
• Electric/electronic SPS-crane control via the LICCON-computer system
• Comfortable armrest controls with 2 self-centering 4-fold multifunctional joy-
sticks, stepless control of all crane motions, with winch and slewing gear indica-
tors, electronic precontrol
• Slewing gear standard reversible from open to hydraulically locked, so the slew-
ing motion can be optimal adapted for the different operation conditions, e. g.
sensitive for installation work or fast for cycle work
Powerful crane drive
The slewing gear
• Planetary gearbox, spring loaded multi disk
brake
• Reversible open or hydraulically locked as
standard
• Slewing speed from 0 to 1.6 min -1 infi nitively
variable
The central greasing
• Standard central greasing device for
slewing bearing, boom bearing, luffi ng
cylinder and winch bearing
• Even supply of grease
• Filling quantity visible at any time in
transparent reservoir
4,1 t
0,6 t
0,8 t
1,5 t
2,6 t
LICCON-
monitor
Control sensor with touch displays
Control unit
Telescoping
cylinder
Luffi ng
cylinder
Control block
Hoist
gear
Slewing
gear
Hydraulic swivel
Gear type pump
Variable
displacement
pump
Liebherr diesel
engine
Sensors
2,4 t
Basic counterweight 7.0 t
Additional counterweight 5.0 t
Total
12.0 t
