LTM 1055-3. 2
11
Powerful, long telescopic boom and functional
lattice extensions
The telescopic boom consists of the base section and 4 telescopic sections,
which can be comfortably and automatically extended and pinned to the re-
quested length by the thousand fold proven single cylinder telescoping system
TELEMATIK.
• 40 m long telescopic boom
• 9.5 m – 16 m long double swing-away jib, attachable at 0°, 20° and 40°
• Rooster sheave, foldable sidewise
• 2.5 m long assembly jib.
High capacities with full counterweight as well
as with partial counterweight offer a wide
application of operations
• High lateral stability due to the oval boom profi le
• Optimized capacities due to the numerous extension variations
• Capacity 10.1 t at 40 m long telescopic boom

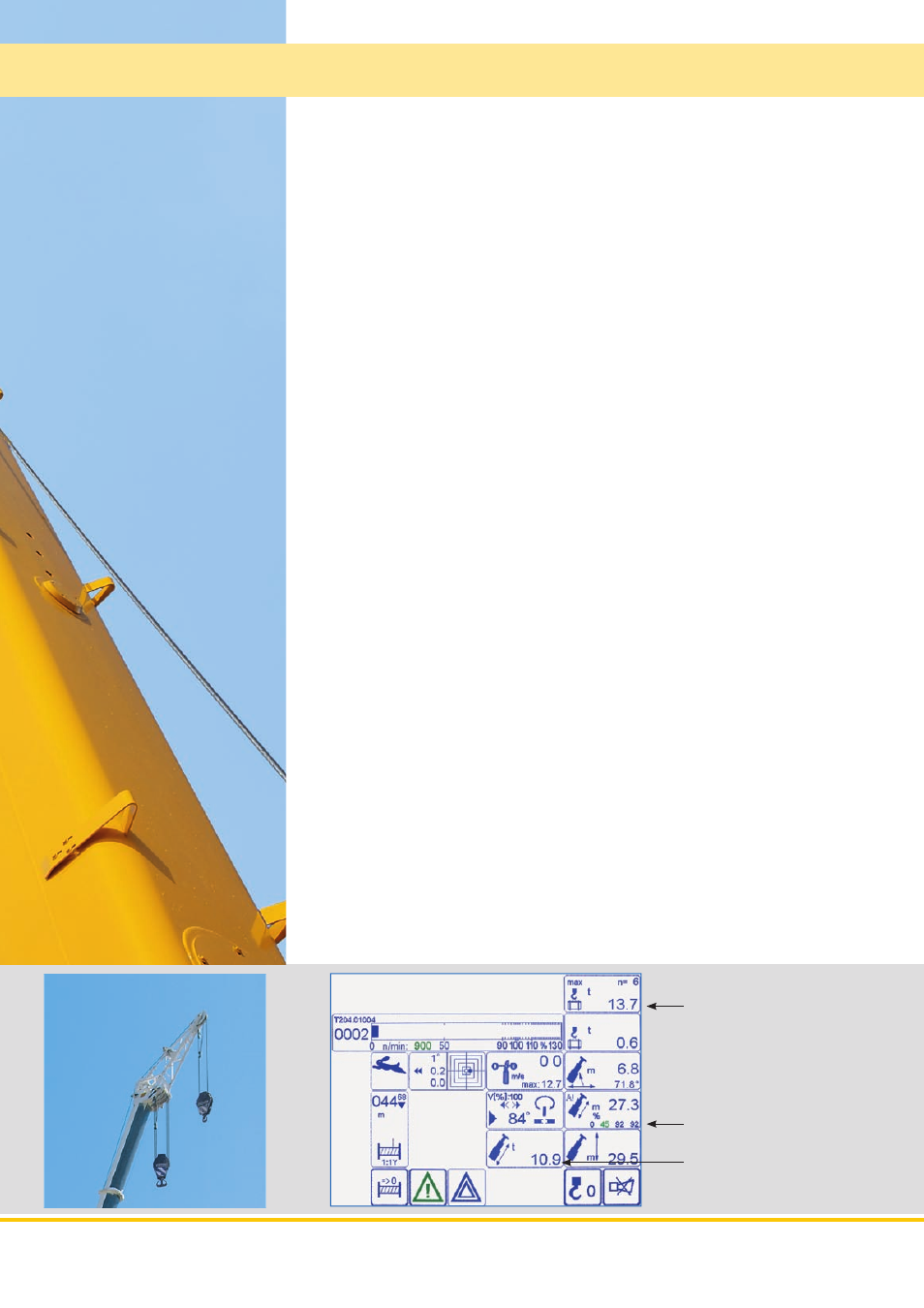

High capacities at the unpinned telescopic boom
• High telescopable capacities due to interpolation
• Separate charts for holding of loads at unpinned telescopic lengths
• Display at LICCON monitor
High lifting capacities and fl exible boom system
2,5 m long assembly jib
Holding capacity
Unpinned boom length
Telescopable capacities
