LR 1300 sx ANSI/ANSE B 30.5 7
Crawler 2x
Track pads 47.2 inch
Width 47.2 inch
Weight 50,710 lbs
9´10´´
11´6´´
38.1´´
10´9´´ 40´4´´
31´9´´
4´10´´
Option 55.7´´ Opt t i i ion i 55.7´´

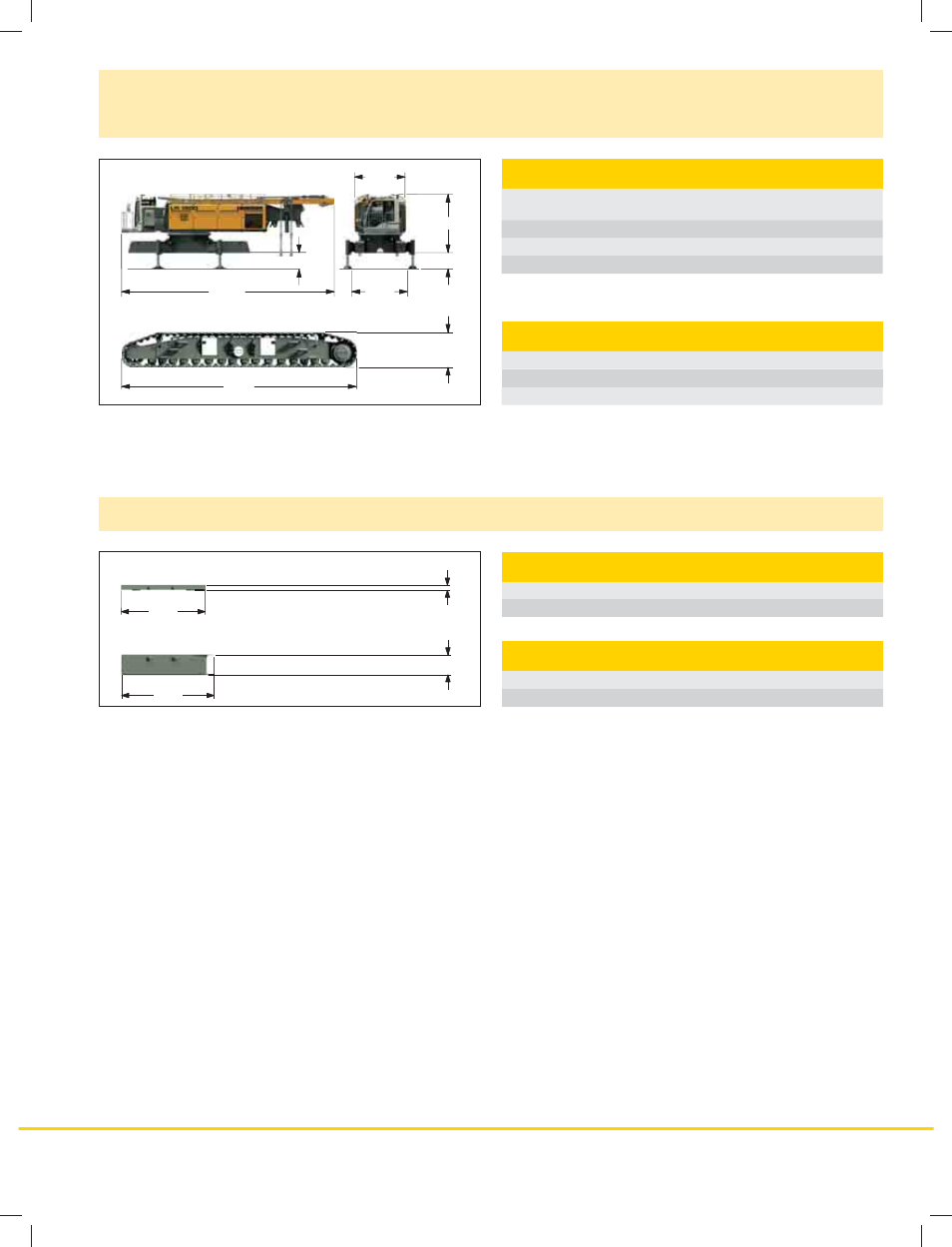

Transport dimensions and weights
(optional)
Basic machine
Carbody counterweight 2x
Width 5´11´´
Weight 44,315 lbs
Carbody counterweight 2x
Width 5´11´´
Weight 13,670 lbs
11´7´´
30.3´´
7.9´´ 10´5´´
Carbody counterweights
(optional)
Basic machine
with A-frame, 2x 33,725 lbf crane winches, without boom foot, basic
counterweight and crawlers
Width 9´10´´
Weight without hoist rope 102,515 lbs
Weight of hoist rope 2.75 lbs/ft
