LR 1300 sx ANSI/ANSE B 30.5
3

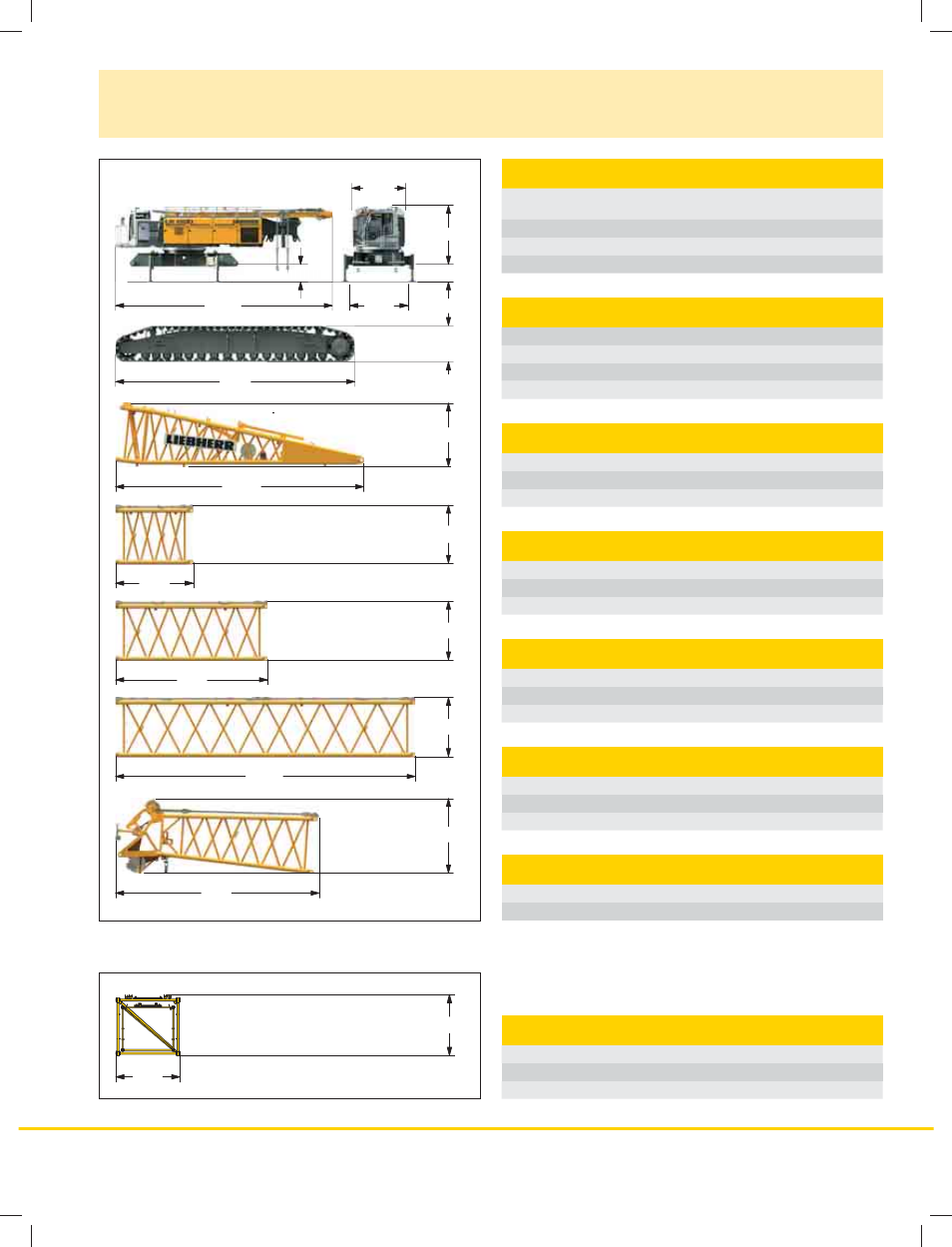

Transport dimensions and weights
Basic machine and boom
(No. 2821.xx)
Basic machine
with A-frame, 2x 33,725 lbf crane winches, without boom foot, basic
counterweight and crawlers
Width
9´10´´
Weight without hoist rope
101,450 lbs
Weight of hoist rope
2.75 lbs/ft
Boom foot
(No. 2821.30)
Width
2970 mm
Weight without winch
5700 kg
Weight incl. winch and rope
7400 kg
Boom section
(No. 2821.30)
10 ft
Width
9´9´´
Weight incl. main boom pendants
3,090 lbs
Weight incl. main boom and luffing jib pendants
3,310 lbs
Boom section
(No. 2821.30)
20 ft
Width
9´9´´
Weight incl. main boom pendants
4,700 lbs
Weight incl. main boom and luffing jib pendants
5,100 lbs
Boom section
(No. 2821.30)
40 ft
Width
9´9´´
Weight incl. main boom pendants
8,290 lbs
Weight incl. main boom and luffing jib pendants
9,090 lbs
Boom head
(No. 2821.24)
Width
9´9´´
Weight incl. main boom pendants
11,905 lbs
8´1´´
40´2´´
10´2´´
26´11´´
33´10´´
8´1´´
20´6´´
8´1´´
9´10´´
10´10´´
38.4´´
11´2´´
40´
Оption 55.7´´
31´8´´
57.7´´
8´8´´
10´8´´
Оption
on
on
on
on
o
on
o
o
on
o
n
o
on
o
o
on
n
55.7´´
9´9´´
8´1´´
Boom - luffing jib transport option
No. 2821.xx/2316.xx
40/40 20/20 10/10 ft
Length
41´ 20´6´´ 10´8´´
Weight*
13,060 7,200 4,635 kg
*
) Weights depend on the equipment installed
Crawler
2x
Optional
Standard
Flat track shoes
59 inch
47.2 inch
Width
59 inch
55.1 inch
Weight
57,765 lbs 49,275 lbs
