Bloomfield 8572 - Manual (Page 23)

INTERNAL PLUMBING COMPONENTS

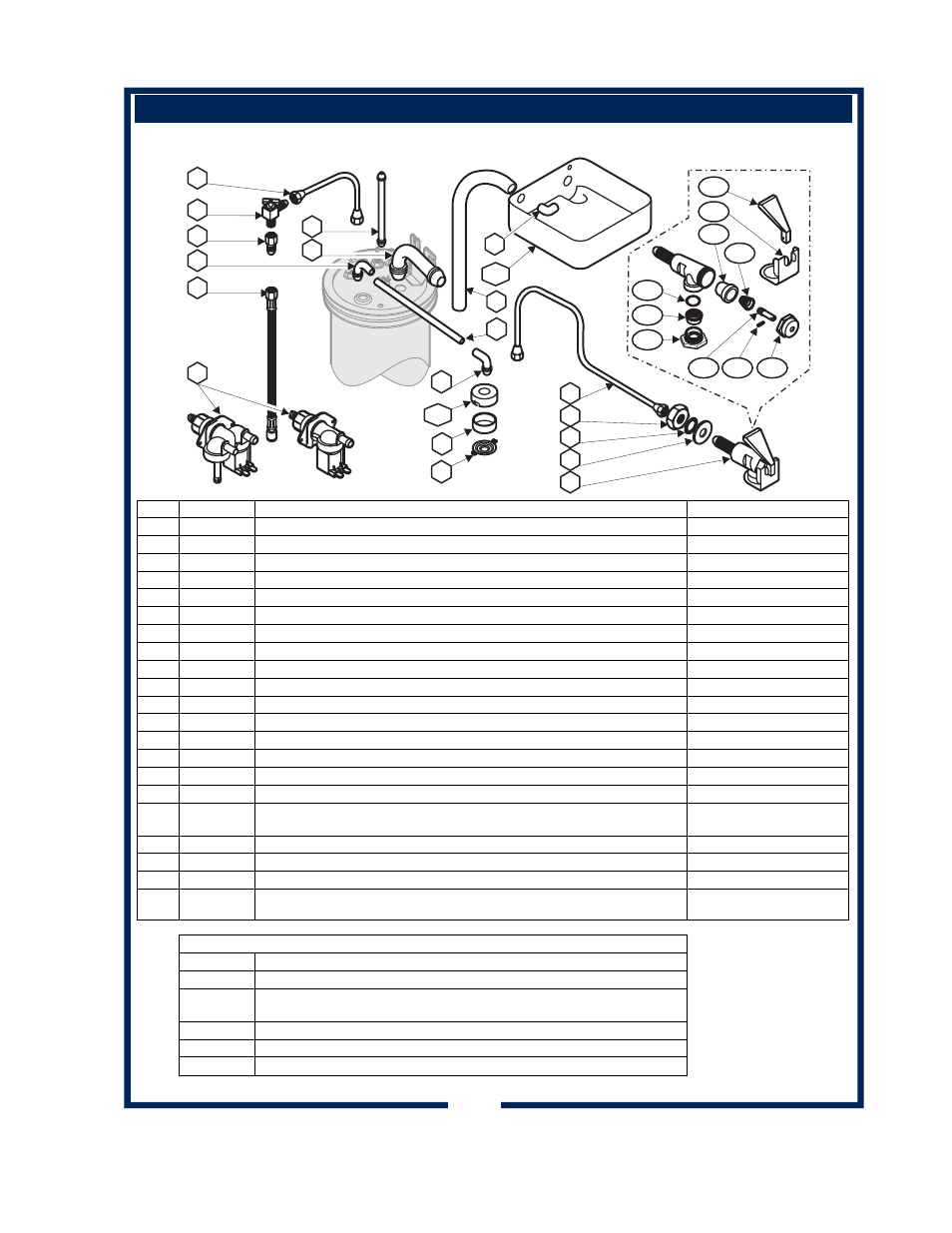

Koffee-King™ EXPLODED VIEW & PARTS LIST (continued)
21
M
611 75804
Owne
rs M
anual
Koffee-K
ing™ B
rewers
ITEM PART NO. DESCRIPTION USED ON
8 8540-3 FORMED TUBE, FAUCET OUTLET ASSEMBLY 10-7/8" LONG 8540, 8572, 8574
9 8540-4 FORMED TUBE, FAUCET COIL INLET ASSEMBLY 8540, 8572, 8574
10 8551-30 ADAPTER, 1/4" MALE FLARE x 1/8" FPT BRASS 8540, 8572, 8574
11 8514-26 VALVE, FAUCET SHUT OFF, NEEDLE SEAT 8540, 8572, 8574
12 85681 BRAIDED TUBE, FAUCET INLET 6MM x 299MM (11-3/4") LONG 8540, 8572, 8574
18 8540-30 ELBOW, BASIN INLET DIVERTER POLYPROPYLENE 8540, -41, -72, -73, -74
24 8043-26 TUBE, BREW OUTLET, METAL 4-3/4" LONG ALL
25 8043-13 ELBOW, SPRAYER, SILICONE ALL
27 8551-100B LOCK WASHER 7/16" EXT SEMS (FAUCET) 8540, 8572, 8574
28 82681 WASHER, FLAT 15/32" x 1-1/8" x 1/16" SS 8540, 8572, 8574
29 82556 FAUCET ASSEMBLY, PRESSURE 8540, 8572, 8574
33 8543-42 GASKET, SPRAY HEAD ALL
34 82727 SPRAY DISK, EMBOSSED ALL
34a 8543-45 RETAINER, SPRAY HEAD (REQUIRES DRILL/RIVETS TO INSTALL) ALL
43 8541-46 TUBE, BASIN INLET, SILICONE 13" 8540, -41, -72, -73, -74
45
83612
85685 SOLENOID, SINGLE, 120V, .75 GPM
SOLENOID W/BYPASS, 120V, .75 GPM 8541, 8573
8540, 8572, 8574
59 8043-8 TUBE, BASIN OUTLET/TANK INLET, SILICONE ALL
60 8043-15 TUBE, VENT, SILICONE ALL
61 8043-11 ELBOW, TANK OUTLET, SILICONE ALL
108
8541-21
8543-29 BASIN PAN (AUTOMATIC)
BASIN PAN (POUR-OVER) 8540, -41, -72, -73, -74
8542, 8543, 8571
FAUCET REPAIR KITS
82573 HANDLE, FAUCET RED (29a)
82575 SEAT CUP (29c)
82576
FAUCET REPAIR KIT, INCL: HANDLE (29a), SEAT CUP (29c),
SPRING (29d), STEM (29h), PIN (29j) & BONNET (29k)
82682 RETAINER CLIP (29b)
84804 AERATOR REPLACEMENT, INCL: O-RING (29e), DISK (29f) & CAP (29g)
84870 AERATOR REPAIR KIT, INCL: O-RING (29e) & DISK (29f)
26 82680 LOCK NUT, HEX 7-16-20 8540, 8572, 8574
33
34
25
24
34a
108
43
26
28
27
29
8
12
29d
29e
29f
29g
29h 29j 29k
TANK ASSY
see PAGE 20
61
59
18
11
60
10
9
29a
29b
29c
45
