Check
Fluid Levels
Check the Engine Oil Level
1. Use the engine oil dipstick (A, Figure 5) to check the
engine oil level. If necessary add engine oil. Check
the engine manufacturer’s owner’s manual for the oil
recommendations.
Check / Fill Transmission Oil
Oil Type: 20W-50 conventional detergent motor oil
1. Check the oil level when the unit is cold. Raise the
seat plate to gain access to the transmission oil
reservoirs (B, Figure 5). The oil should be up to the
“FULL COLD” mark (C). If the oil is below this level,
proceed to step 2.
2. Before removing the reservoir cap, make sure the
area around the reservoir cap and fill neck of the
reservoir is free of dust, dirt and other debris.
Remove the transmission oil caps.
3. Add oil up to the “FULL COLD” mark (C).
4. Reinstall the reservoir cap.
Figure 6. Checking Tire Pressure
Tire Pressure
Front 40 psi (2,76 bar)
Rear 15 psi (1,03 bar)
Check Tire Pressures
Tire pressure should be checked periodically, and
maintained at the levels shown in the chart. Note that
these pressures may differ slightly from the “Max
Inflation” stamped on the side-wall of the tires. The
pressures shown provide proper traction, improve the
cut quality, and extend the tire life.

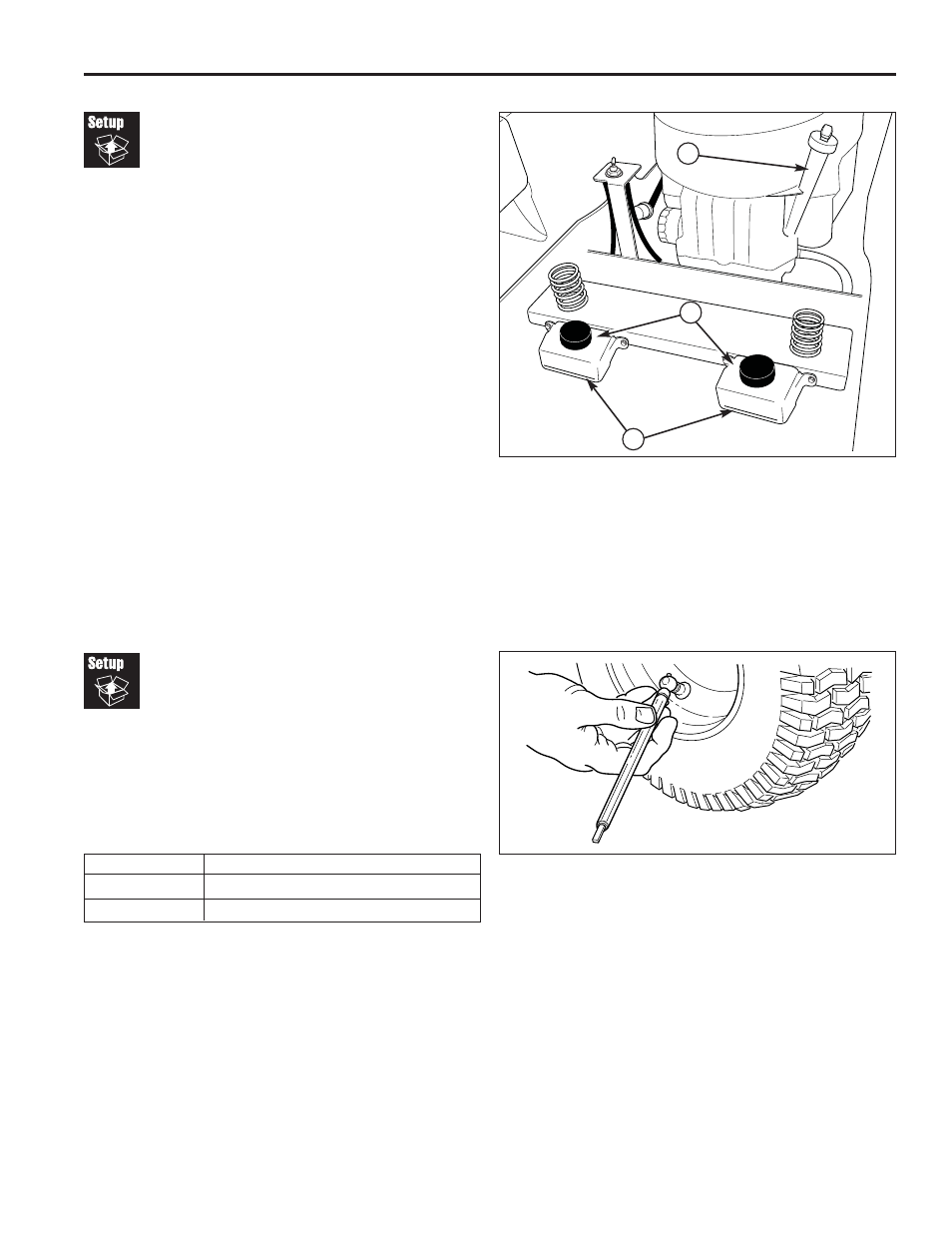

Figure 5. Checking the Fluid Levels
A. Engine Oil Dipstick
B. Hydraulic Oil Reservoir
C. “FULL COLD” Mark
