Functional Description and Specifications

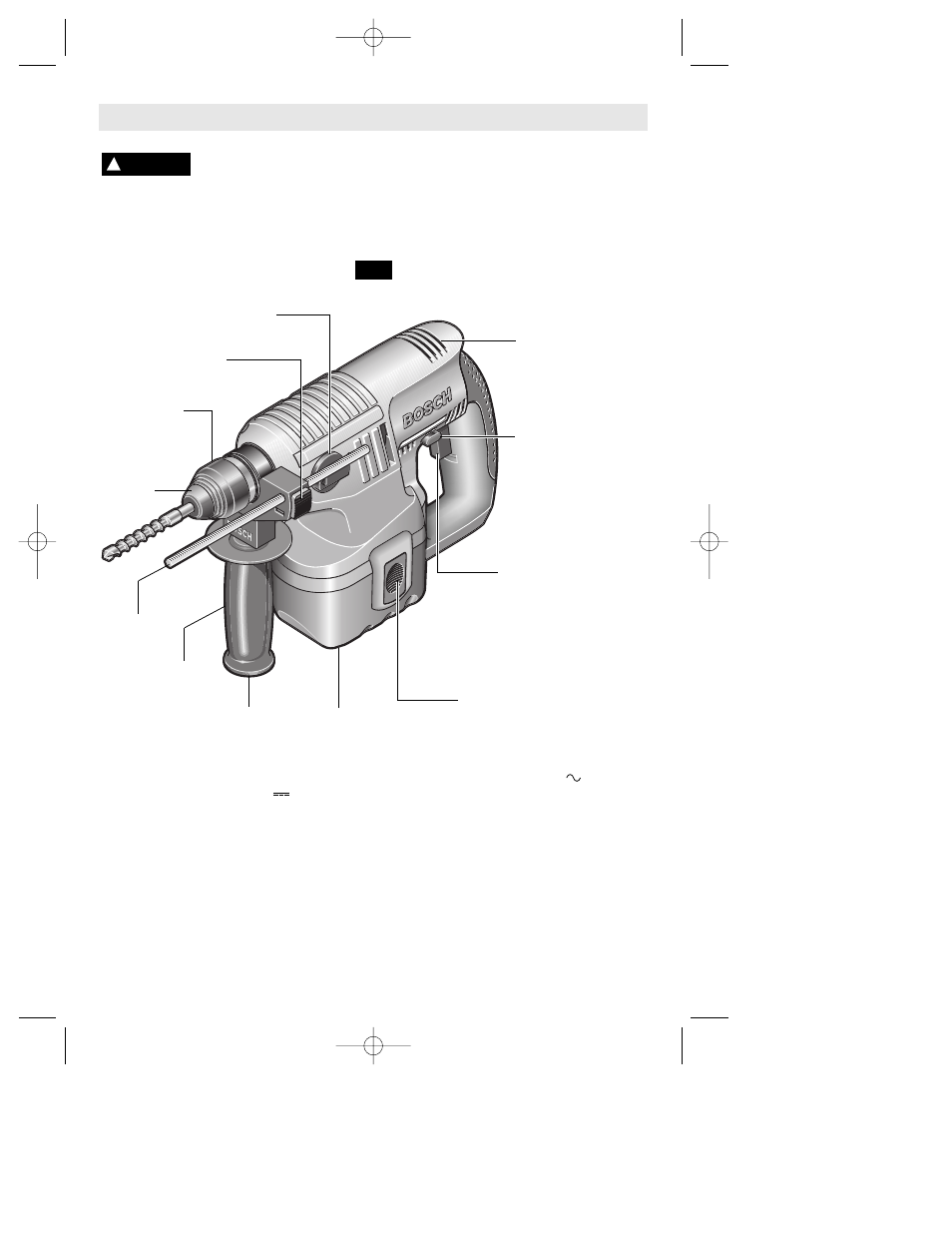

VENTILATION
OPENINGS
BATTERY
PACK
AUXILIARY
HANDLE
DUST
SHIELD
LOCKING
SLEEVE
DRILL/HAMMER DRILL
SELECTION DIAL
DEPTH
GAUGE
VARIABLE SPEED
TRIGGER SWITCH
Disconnect battery pack from tool or place the switch in the locked or
off position before making any assembly, adjustments or changing
accessories. Such preventive safety measures reduce the risk of starting the tool
accidentally.
! WARNING
NOTE: For tool specifications refer to the nameplate on your tool.
FIG. 1
DEPTH GAUGE
RELEASE
BUTTON
Tool
Model Number
11524
Voltage rating 24 V
Shank style SDS-Plus ®
Charge time 15 min.
Charger BC004, BC006, BC015
& BC016
Battery pack BAT031
Voltage rating 120 V 60 Hz
Maximum Capacities:
Material
Concrete
3/4"
Steel 1/2"
Wood
3/4"
FORWARD/REVERSING
LEVER & TRIGGER
LOCK
BATTERY RELEASE
TABS
HAND
GRIP
Cordless Rotary Hammer
BC006 charger requires 12 V DC input
NOTE: ONLY USE CHARGERS LISTED ABOVE
