Plug charger cord into your standard power
outlet. Before inserting battery pack, remove
protective cap (Fig. 6), then insert battery
pack into charger (Fig. 7).
The charger’s green indicator light will begin
to “BLINK”. This indicates that the battery is
receiving a fast charge. Fast-charging will
automatically stop when the battery pack is
fully charged.
When the indicator light stops “BLINKING”
(and becomes a steady green light) fast
charging is complete, and an acoustical
signal sounds for a period of approximately
2 seconds which indicates that the battery is
completely charged.
The battery pack may be used even though
the light may still be blinking. The light may
require more time to stop blinking
depending on temperature.
The purpose of the green light is to indicate
that the battery pack is fast-charging. It
does not indicate the exact point of full
charge. The light will stop blinking in less
time if the battery pack was not completely
discharged.
When charging several batteries in
sequence, the charge time may slightly
increase.
When the battery pack is fully charged,
unplug the charger (unless you're charging
another battery pack) and slip the battery
pack back into the tool.
To prevent fire or injury when batteries are
not in tool or charger, always place
protective cap onto end of battery pack
(Fig. 6).

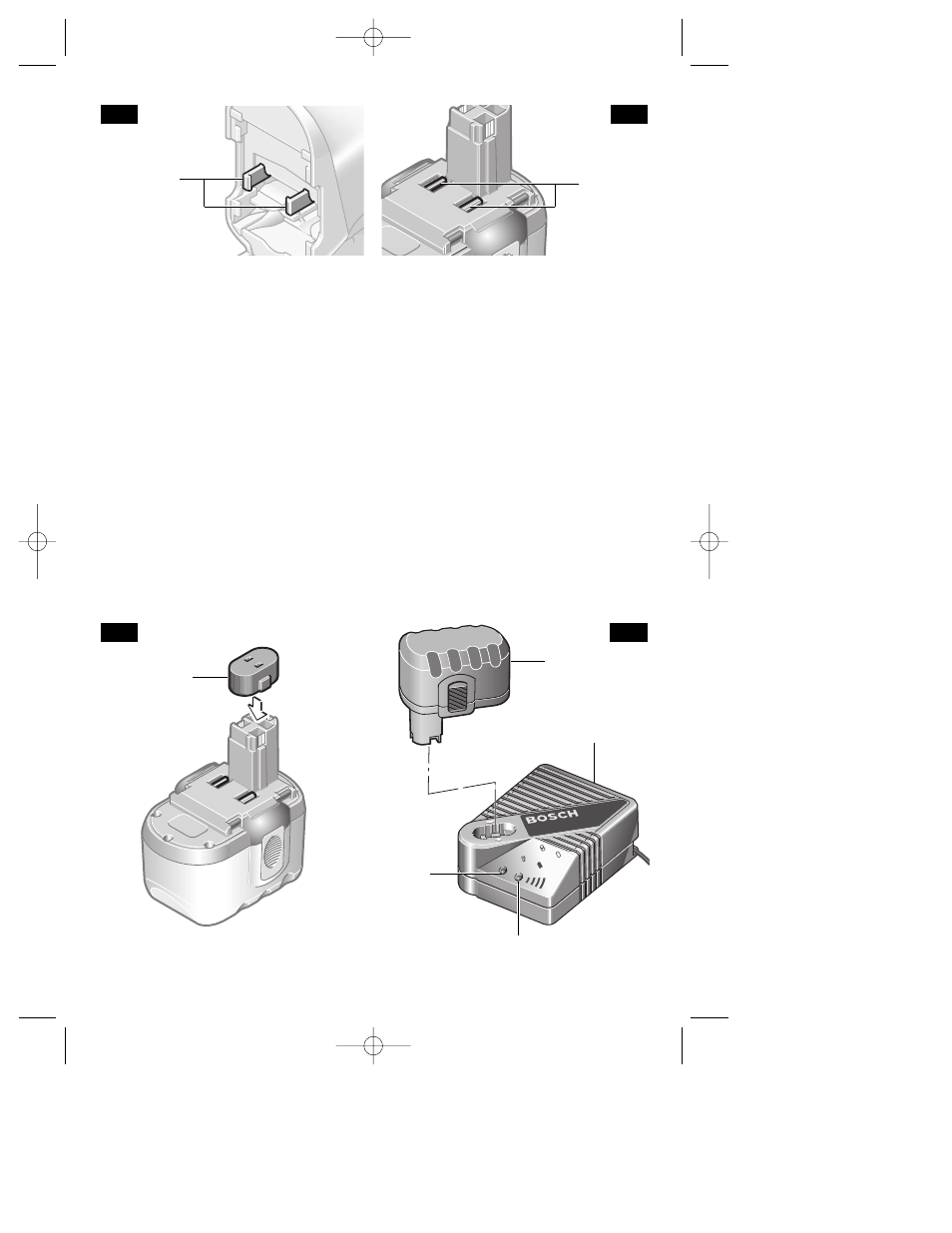

CHARGING BATTERY PACK
LOCKING
LATCHES
LOCKING
LATCHES
FIG. 4 FIG. 5
PROTECTIVE
CAP
BATTERY
PACK
CHARGER
RED
LIGHT
GREEN
LIGHT
FIG. 6 FIG. 7
