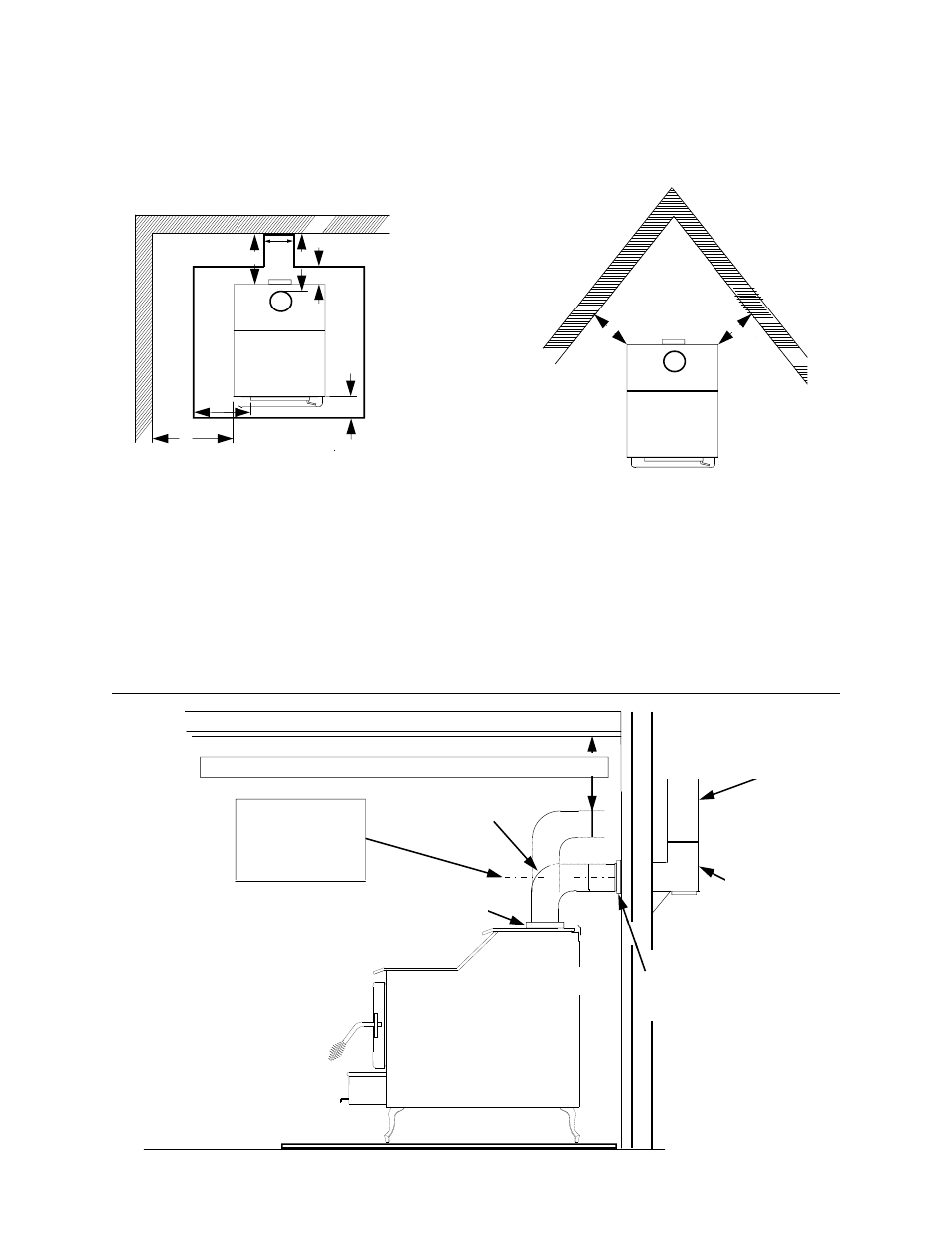

Figure 9.
D. Vertical wall exit using (6" DVL Close Clearance pipe with elbow) ,
and any listed 2100° UL 103 HT. TYPE Chimney).
With standard close clearance shield and pipe shield.
Model 261 minimum clearance to combustibles.
IN
SIDE
WALL
Figure 10.
CEILING
WALL
PASS-THROUGH
CONNECTOR
LISTED 2100° UL 103 HT TYPE
CHIMNEY REEFER TO
MANUFACTURERS
INSTALLATION INSTRUCTION
DVL CLOSE
CLEARANCE
PIPE
C
C
C C
A B C D E F G H
MODEL 261 14”
4" 14" 7" 8" 3" 16"
BACK WALL
A
E
B
F
D
G
A
E
B D
F
BACK WALL
SIDE WALL
PROTE
C
TO
R
G
CENTER LINE
OF ELBOW
MARK PLUMB
LINE ON WALL
NEW BUCK CAST COLLAR
Part # MA6CHIMCNB
LISTED 2100° UL 103 HT
TYPE CHIMNEY T-BOX
ASSEMBLY REEFER TO
MANUFACTURERS
INSTALLATION
INSTRUCTION
Maintain Manufactures Minimum Clearances
NOTE: All clearances are to combustibles with all low clearance shields and double wall pipe
with elbow, and minimum floor protector.NOTE: Floor protector must extend length of
horizontal flue pipe to wall. NOTE: Model 261 comes standard with low clearance shields.
H
NOTE:
