KnoWInG yoUR RoUTeR
H� Connection to Modem – yellow
This port is for connection to your cable or DSL modem. Use the cable that
was provided with the Router to connect the modem to this port. Use of a
cable other than the cable supplied with the Router may not work properly.
I� Connections to Computers – Gray
Connect your wired (non-wireless) computers to these ports. These ports
are RJ45, 10/100 auto-negotiation, auto-uplinking ports for standard UTP
category 5 or 6 Ethernet cable. The ports are labeled 1 through 4.
J� Power Jack
Connect the included 9V/1A DC power supply to this jack.
K� Reset button
The “Reset” button is used in rare cases when the Router may function
improperly. Resetting the Router will restore the Router’s normal operation
while maintaining the programmed settings. You can also restore the factory
default settings by using the “Reset” button. Use the restore option in
instances where you may have forgotten your login password.
a� Resetting the Router
Push and release the “Reset” button. The lights on the Router will
momentarily flash. The “router” light will begin to blink. When the
“router” light becomes solid again, the reset is complete.
b� Restoring the factory defaults
Press and hold the “Reset” button for at least 10 seconds, then release it.
The lights on the Router will momentarily flash. The “router” light will begin
to blink. When the “router” light becomes solid again, the reset is complete.

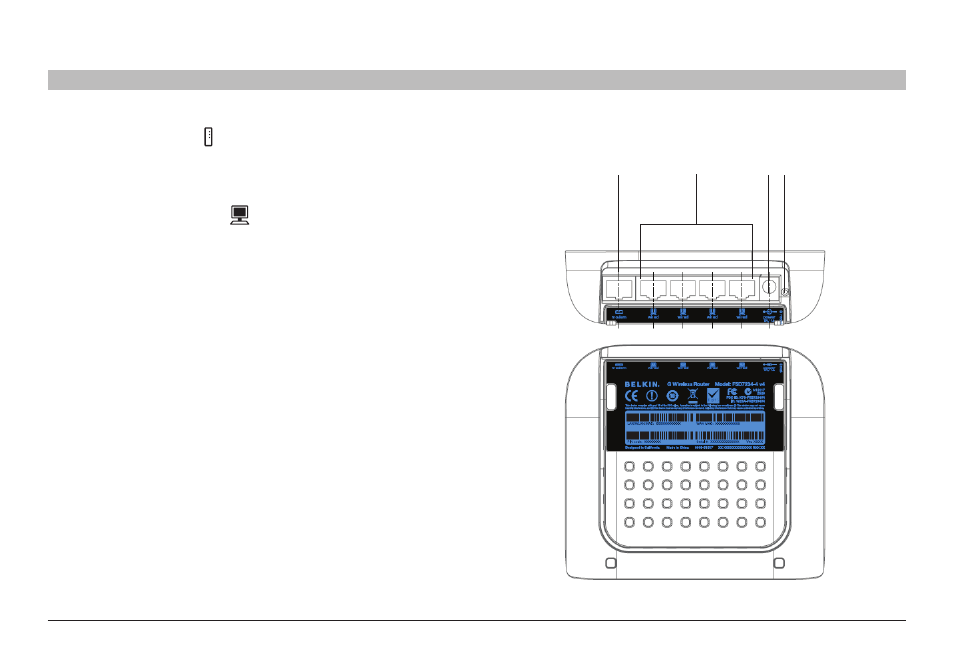

(I) (J) (H) (K)
