Replacing Pilot and Control Valve Series GWU501E, GWU511A, GWU512A LP Gas 606030

15

For assistance call 1.800.762.1142.

Step 13

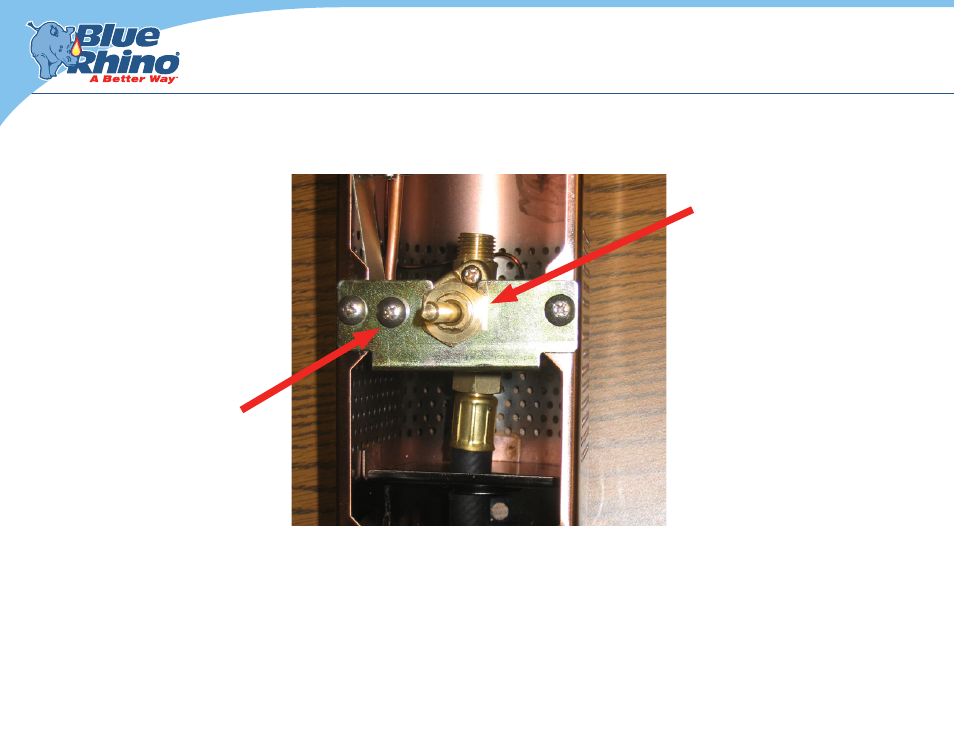

A. On the front of the control valve you will see a large nut. Using a 3/4” open end wrench, remove this nut.

B. To the left of that nut, you will see a phillips head screw holding the tip switch bracket to the valve mounting bracket. Remove this

screw.

C. You should now be able to remove the control valve and pilot assembly from the valve housing.
