ASSEMBLY
225 Series 09/10
Assembly Section 3-3
© 2010 Alamo Group Inc.
ASSEMBL
Y

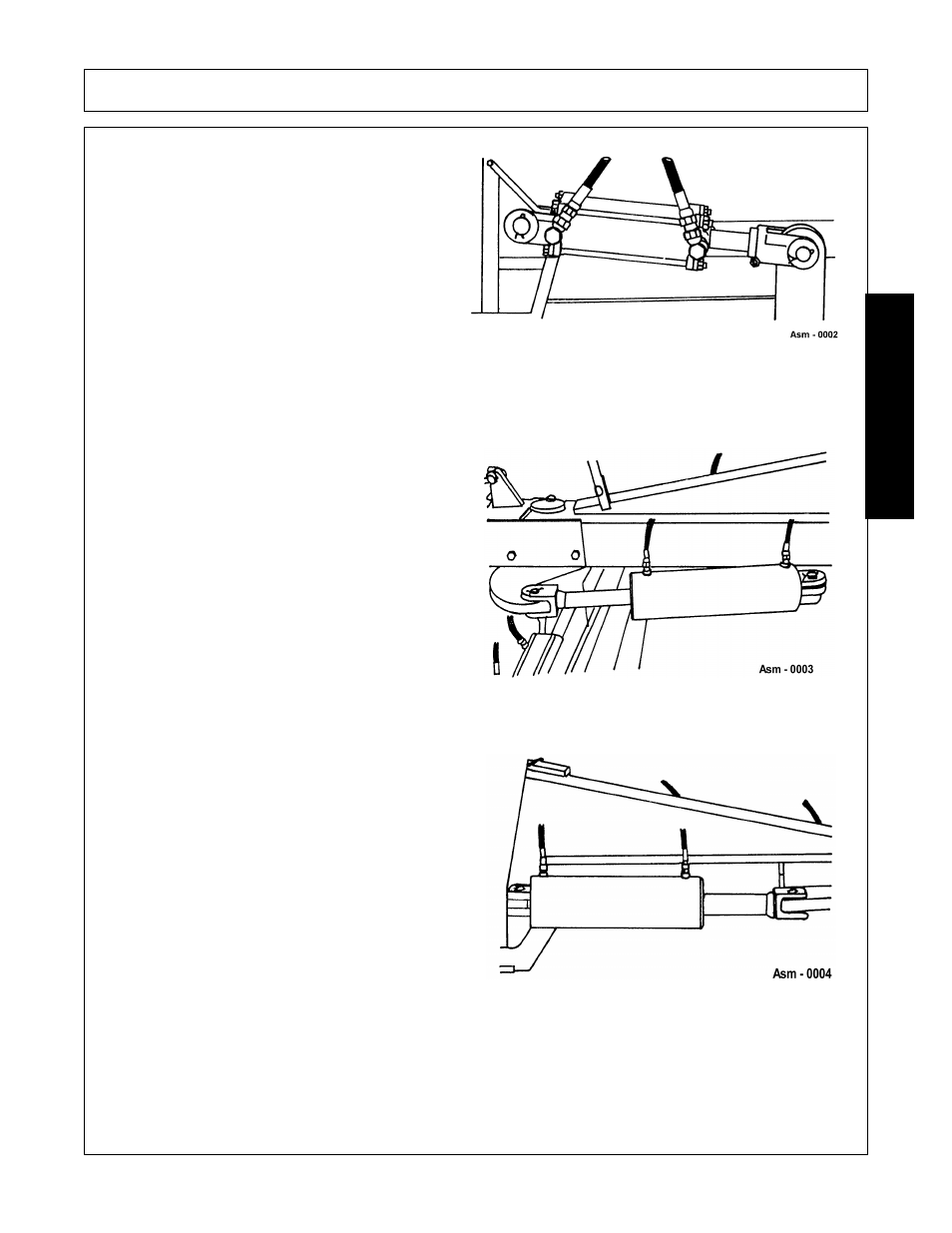

Attach Moldboard Tilt Cylinder with the Rod End
attached to the Moldboard as shown in Figure
Asm-0001.
Attach the Moldboard Pivot Cylinder as shown in
Figure Asm-0003
Attach the Mainframe Swing Cylinder as shown in
Figure Asm-0004 or optional Manual Adjusting
Links.
