Page 9
7
Assembly

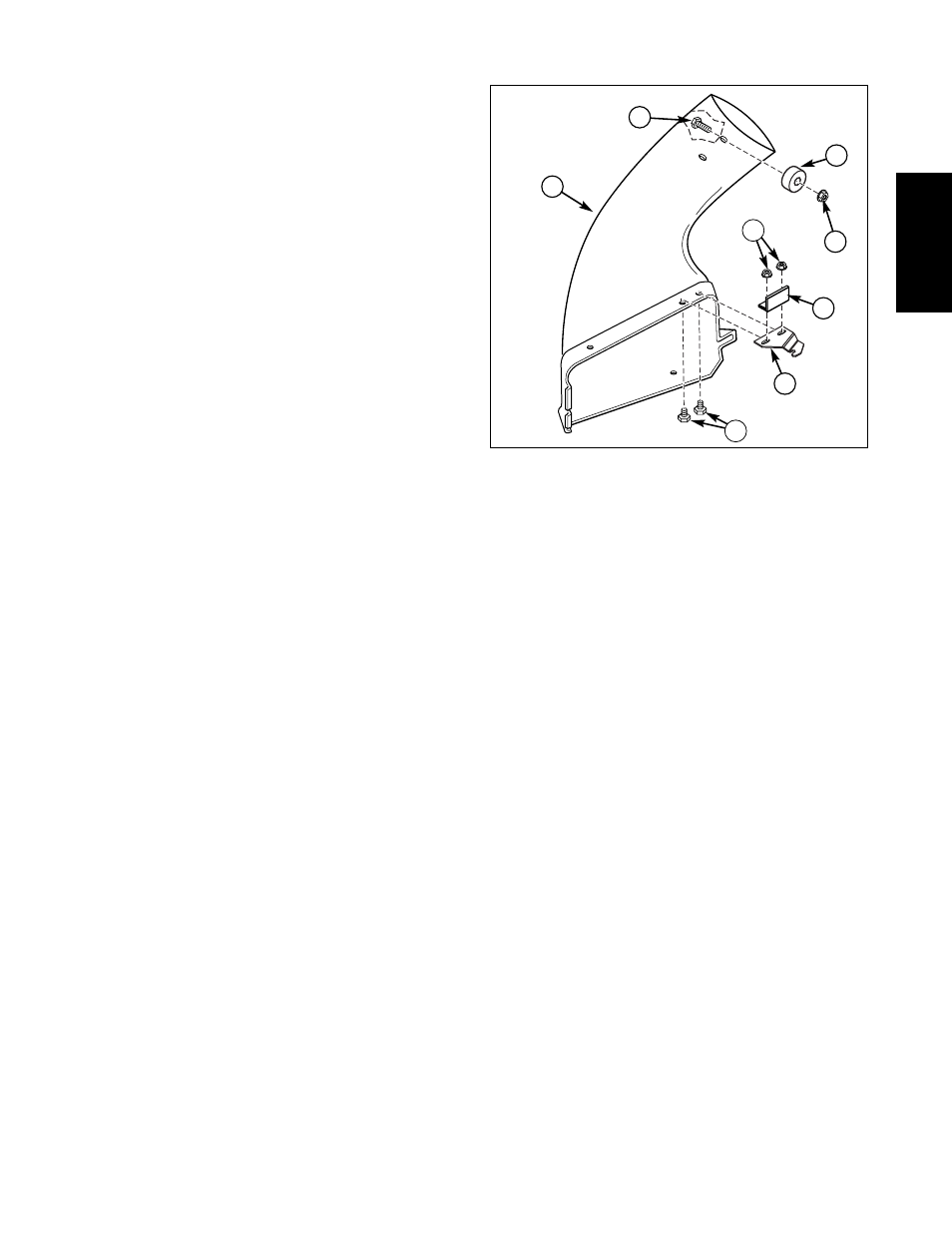

Figure 6. Install Pin and Bracket
A. Lower Chute
B. Locknut, 1/4-20
C. Puck, Metal
D. Capscrews, Thin Head, 5/16-18 x 3/4
E. Locknuts, 5/16-18
F. Bracket
G. Defflector Prop
A
C
F
G
D
D
E
Install Lower Chute Components
INSTALL BRACKET AND PIN ON LOWER CHUTE
1. Secure the puck (C, Figure 6) to lower chute (A)
using 5/16-18 x 3/4 capscrew (D) and 5/16-18
locknut (E).
2. Install bracket (F) and deflector prop (G) to lower
chute (A) using 5/16-18 x 3/4 capscrews (D) and
5/16-18 locknuts (E).
F
