10
INSTALL DISCHARGE TUBE
1.Slide discharge tube (B, Figure 12) into seal (C). It
may be necessary to lengthen several slits (F) in
order for tube (A) to fit into seal (B)
2. Attach the discharge tube (B and Inset) to boot (A)
and secure the tube by moving wire form (E) down
over metal puck (D).
Assembly
D
A
B
C

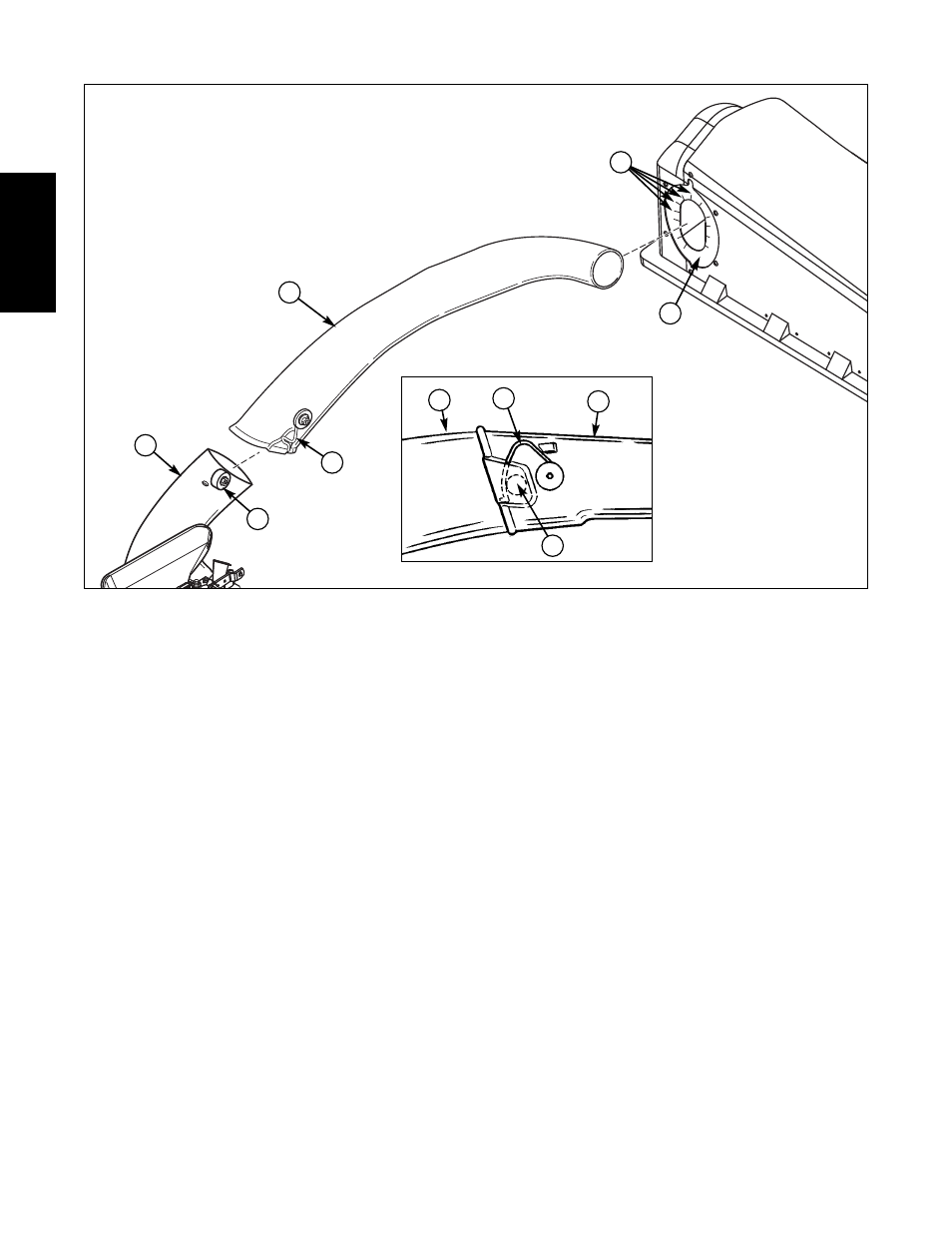

Figure 12. Install Discharge Tube
A. Boot
B. Discharge Tube
C. Seal
D. Puck, Metal
E. Wire Form
F. Slits
A
B E
D
E
F
