9
INSTALL COLLECTOR BAGS
1. Raise the cover (A, Figure 10).
2. Attach collector bags (B) using grass bag hanger
(C) to bag hanger post (D).

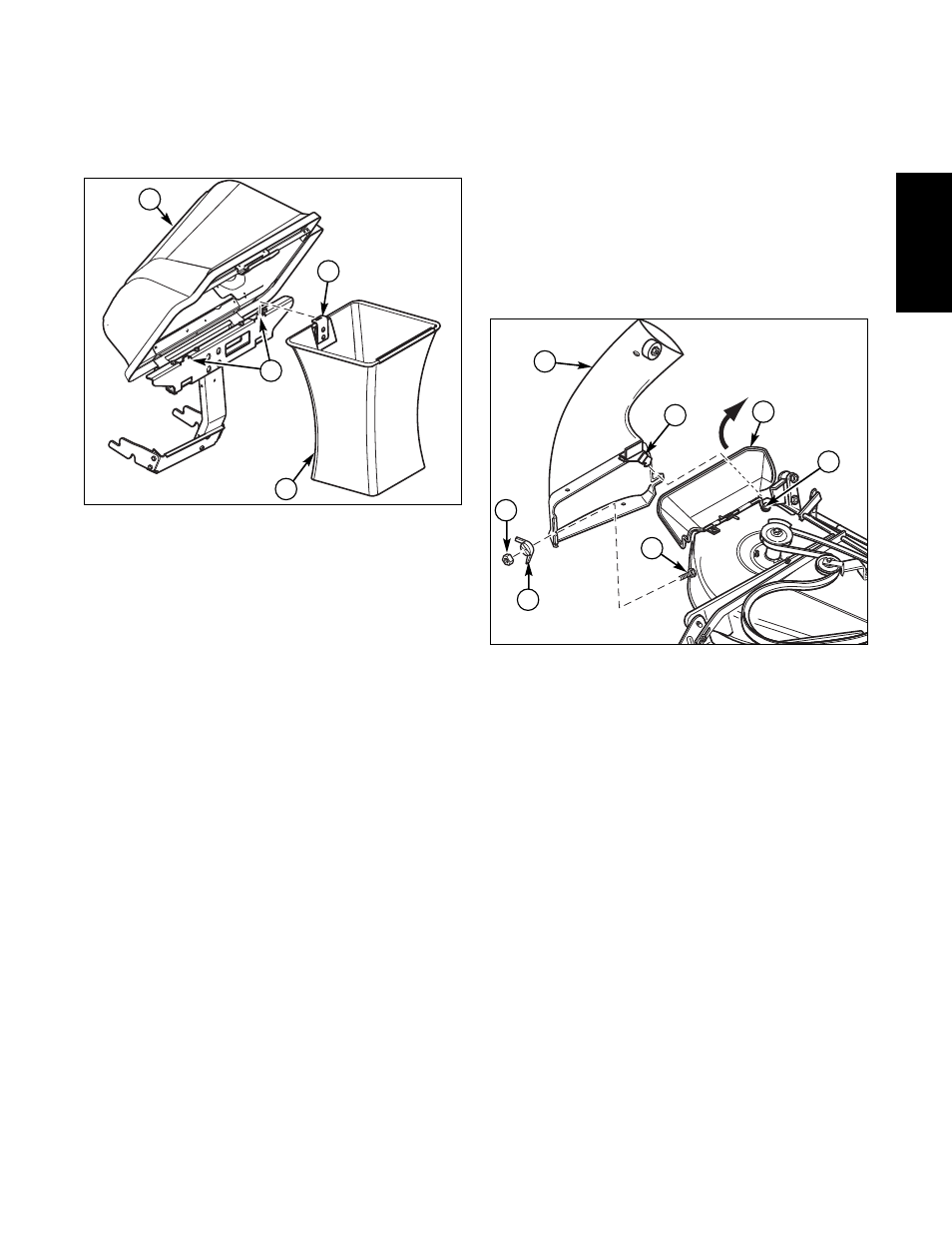

Figure 10. Install Collector Bags
A. Cover
B. Collector Bag
C. Grass Bag Hanger
D. Bag Hanger Posts
A
B
C
D
C
E
D
A
B
Figure 11. Install Lower Discharge Chute
A. Lower Chute
B. Wing Nut
C. Nut
D. Carriage Bolt
E. Discharge Deflector
F. Deflector Hinge Rod
G. Bracket
G
INSTALL LOWER DISCHARGE CHUTE
1. Lift discharge deflector up (E, Figure 11).
2. Slide the notch of bracket (G) on to deflector hinge
rod (F).
3. Secure the front of lower chute (A) to carriage bolt
(D) using wing nut (B) and locknut (C).
Note: Locknut (C) is intended to keep wing nut (B)
permanently on carriage bolt (D).
Assembly
F
