Page 9
Beckett
Instruction Manual –
Model AFII Oil Burner
Adjust, pipe, & wire burner

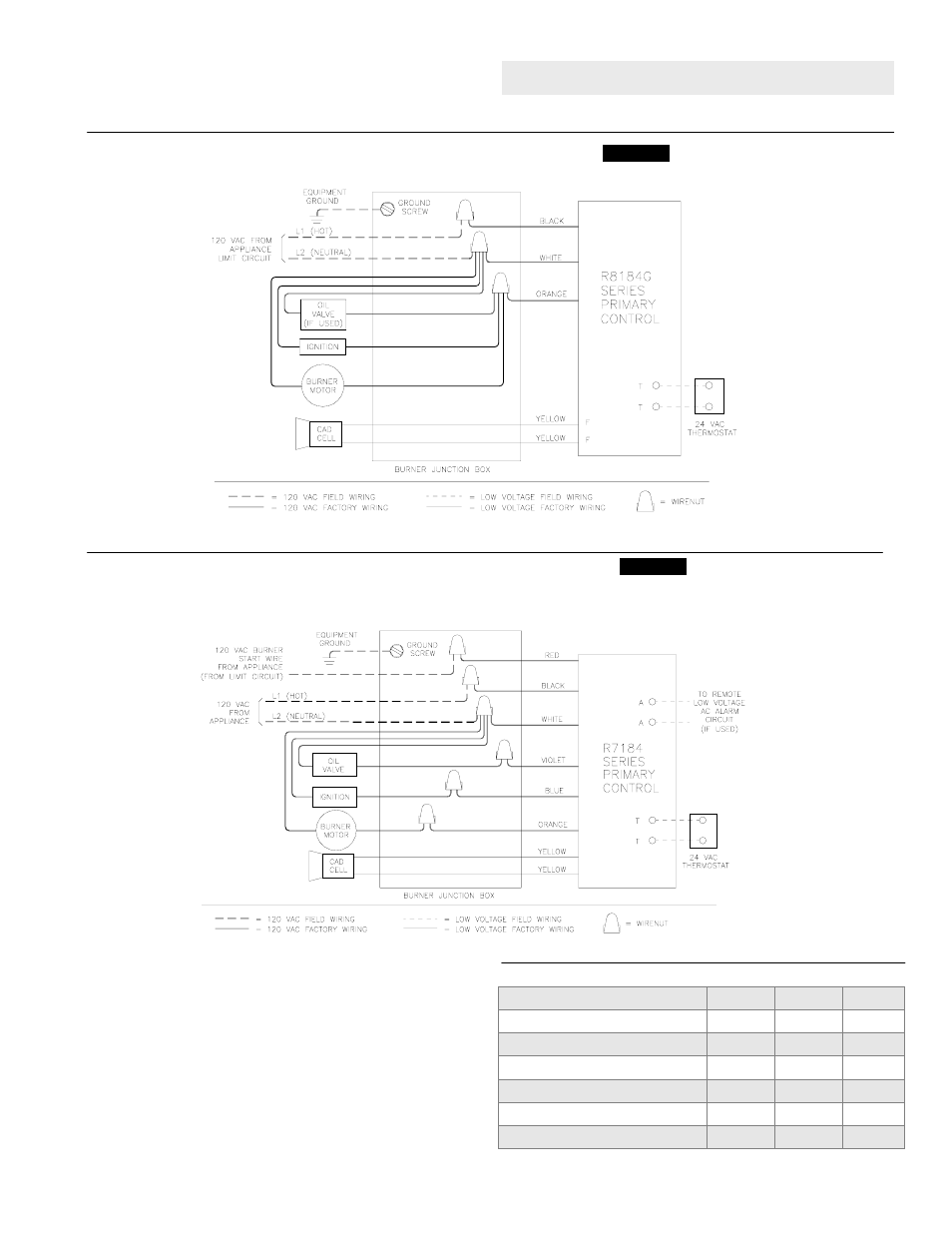

Figure 7 – Typical wiring, R7184 or equivalent primary control
Table 5 – R7184 primary control features
Figure 6 – Typical wiring, R8184G or equivalent primary control
Electrical shock hazard. Disconnect
power
before
servicing.
Electrical shock hazard. Disconnect
power before servicing.
DANGER
DANGER
SK9359
SK9437
Feature
R7184A
R7184B
R7184P
Interrupted ignition
YES
YES
YES
Limited reset, limited recycle
YES
YES
YES
Diagnostic LED, cad cell indicator
YES
YES
YES
Valve-on delay
YES
YES
Burner motor-off delay
YES
Alarm contacts
Optional
9
