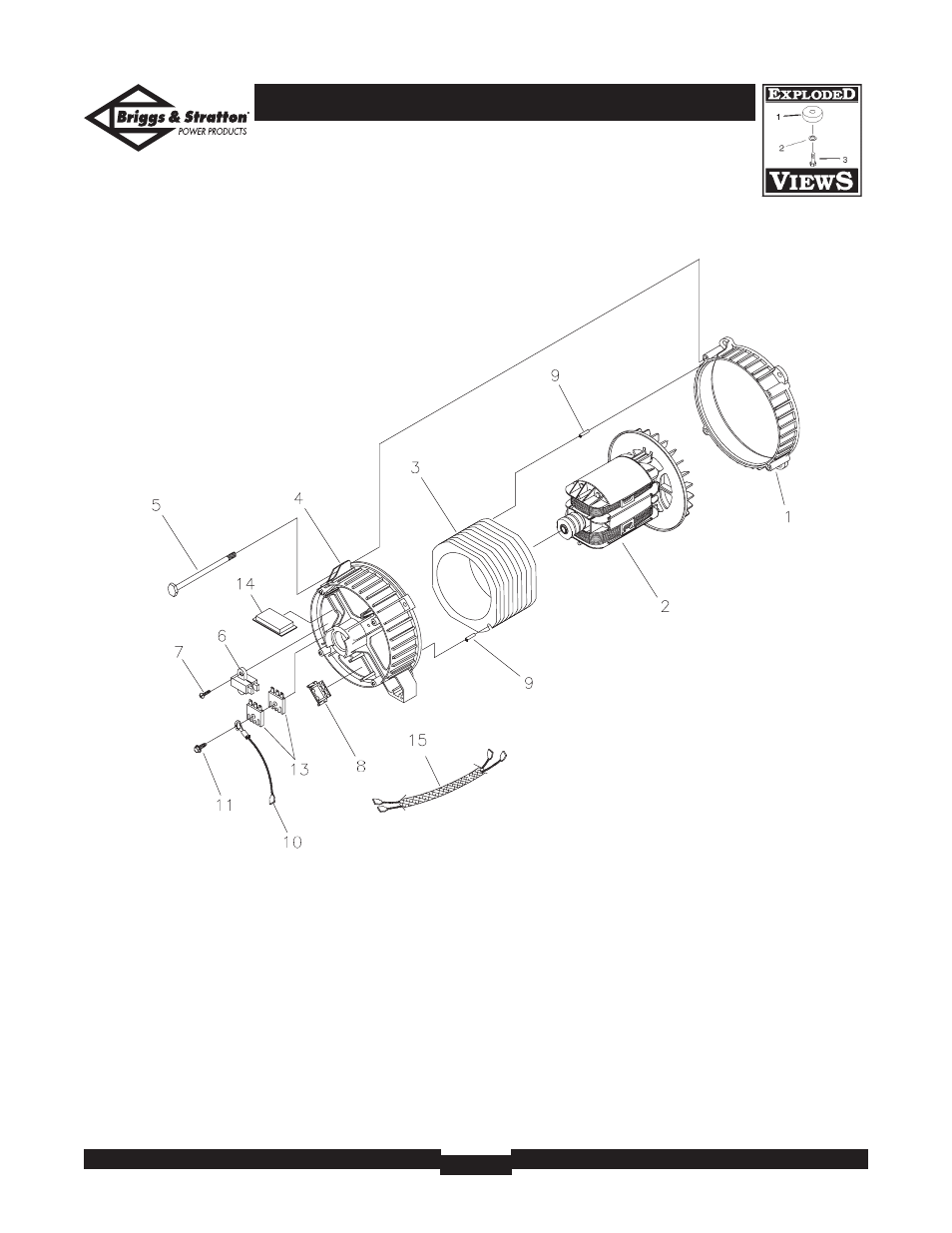

EXPLODED VIEW & PARTS LIST – ALTERNATOR
Item Part #
Description
1
186059GS
ADAPTER, Mounting, Alternator
2
192171GS
ROTOR
3
192186AGS
STATOR
4
193336GS
RBC, (with O-Ring p/n 189197GS)
5
86308KGS
SCREW
6
66386GS
ASSY, Holder, Brush
7
66849GS
SCREW
8
22694GS
RECEPTACLE, 6 pin
9
81917GS
PIN, Roll
10
193428AGS
ASSY,Wire, Ground
11
66849CGS
SCREW
13
65795GS
RECTIFIER
14
191653GS
BOARD, Circuit, System Control
15
193074GS
HARNESS,Wire DC Charge
