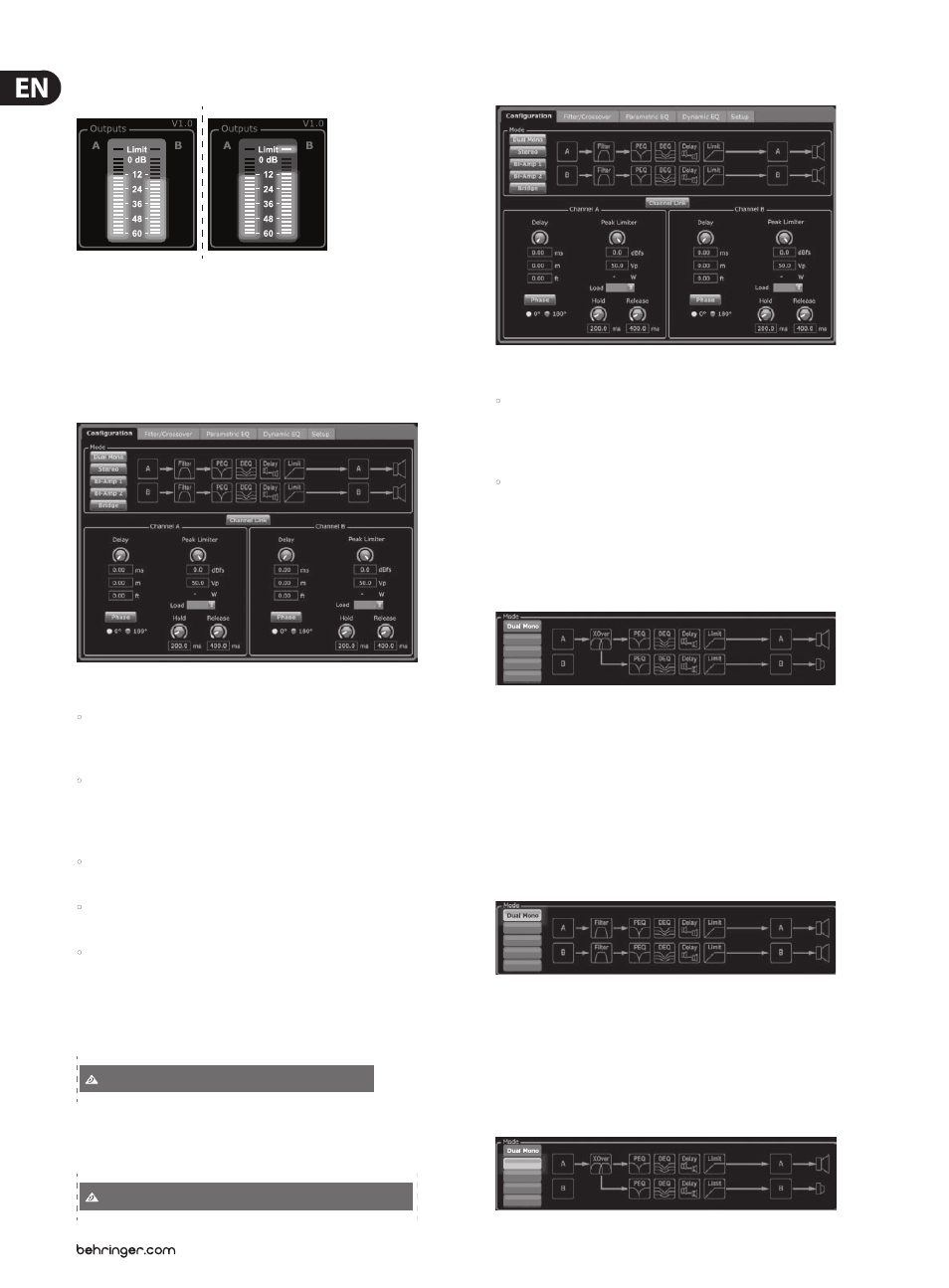

10 iNUKE NU6000DSP/NU3000DSP/NU1000DSP User Manual
Output Meters
The output meters show the signal level at the end of the DSP signal chain,
following the Limit module. If the signal activates the limiter, the red Limit
indicator will light over the channel experiencing an overload.
3.3.2 Function Tabs
The BEHRINGER Amp Remote window allows the user to access DSP functions via
embedded tabs accessible near the top of the software window.
The software window includes these tabbed screens:
• Configuration—controls the amplifier Mode setting for Dual Mono,
Stereo, and other routing options, as well setting controls for output delay
and limiting.
• Filter/Crossover—offers control over adjustable hi-pass and lo-pass
filters. In Bi-Amp 1 and Bi-Amp 2 configuration, this tab controls the
crossover point for splitting the blended, mono input signal into separate
high- and low-frequency mono signals for bi-amping.
• Parametric EQ—controls up to 8 adjustable parametric and shelving EQs
for each channel.
• Dynamic EQ—adjusts parameters for 2 bands of level-dependent, dynamic
equalization per channel.
• Setup—manages presets and networking options.
3.3.3 Connection Status
The software displays the connection status in the top header of the main
software window.
When the amp/software connection is active, the window heading displays the
name of the amplifier.
3.3.4 Configuration
The Configuration tab displays two main sets of software controls:
• Mode—controls the amplifier configuration. Choose between Dual Mono,
Stereo, Bi-Amp 1, Bi-Amp 2, and Bridge configurations. Each configuration’s
complete signal path appears in the display window, including the
arrangement of internal DSP modules and speaker outputs.
• Delay/Peak Limiter—controls settings for the Delay and Limit DSP
modules, as well as options for channel phase, Load settings (in Ohms) for
the limiter wattage display, Hold and Release for the Limiter, and channel
linking. The number of Delay/Peak Limiter controls change depending on the
amplifier Mode configuration.
Mode
Changing amplifier mode
The amplifier mode can be changed by clicking on the button for your desired
routing option along the left-hand side of the window. When you click on a
mode button, the software will launch a confirmation window. Click “Yes” in the
confirmation window to launch the new amplifier mode, and the new signal path
will appear in the display.
Mode descriptions
Dual Mono
Dual Mono mode routes each channel input, A and B, through completely
separate parallel signal paths with independent outputs for each channel.
Each channel may be processed with its own unique filter, equalization, delay,
and limiter settings. The Delay and Limit modules for A and B can be linked and
programmed with identical settings by clicking on the Channel Link button
below the Mode window.
Stereo
BEHRINGER Amp Remote [not connected!]
BEHRINGER Amp Remote [Device: NU1000DSP!]
Stereo
Bi-Amp 1
Bi-Amp 2
Bridge
Stereo
Bi-Amp 1
Bi-Amp 2
Bridge
Stereo
Bi-Amp 1
Bi-Amp 2
Bridge
