Brinkmann Gas Grill King - Manual (Page 24)

23

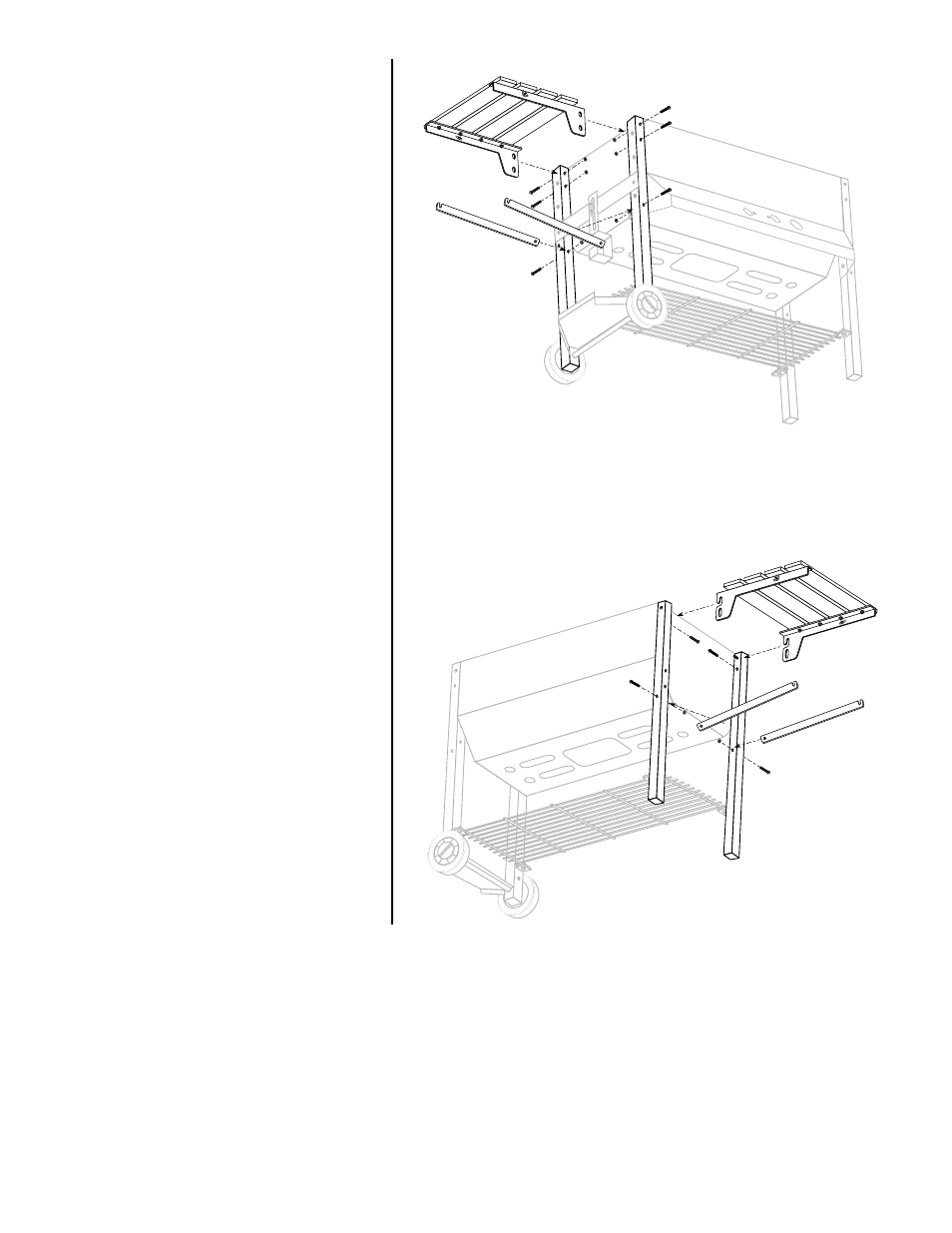

Step 17
Note: Tank side table is a
stationary table and does not
fold down.
Attach assembled tank side table to
grill legs by aligning the bolt holes in
the side table bracket with the holes
in the grill legs. Secure using two
6x50mm bolts and nuts.
Attach support arms to each leg for
the tank side table using 6x50mm
bolts and nuts. The support arm
brackets should be oriented with
the notch facing up as the support
arm bracket is held out from the leg.
Rotate support arms towards the
bottom of side table and secure
using the wing nut.
Step 18
Attach assembled folding side table
to grill legs by placing the slot over
the pivot stud on top of legs. Align
the lower slotted hole with the first
hole on the legs. Secure using two
shouldered screws.
Attach support arms to each leg for
the folding side table using 6x50mm
bolts and nuts. The support arm
brackets should be oriented with
the notch facing up as the support
arm bracket is held out from the leg.
Rotate support arms towards the
bottom of side table and secure
using the wing nut.
