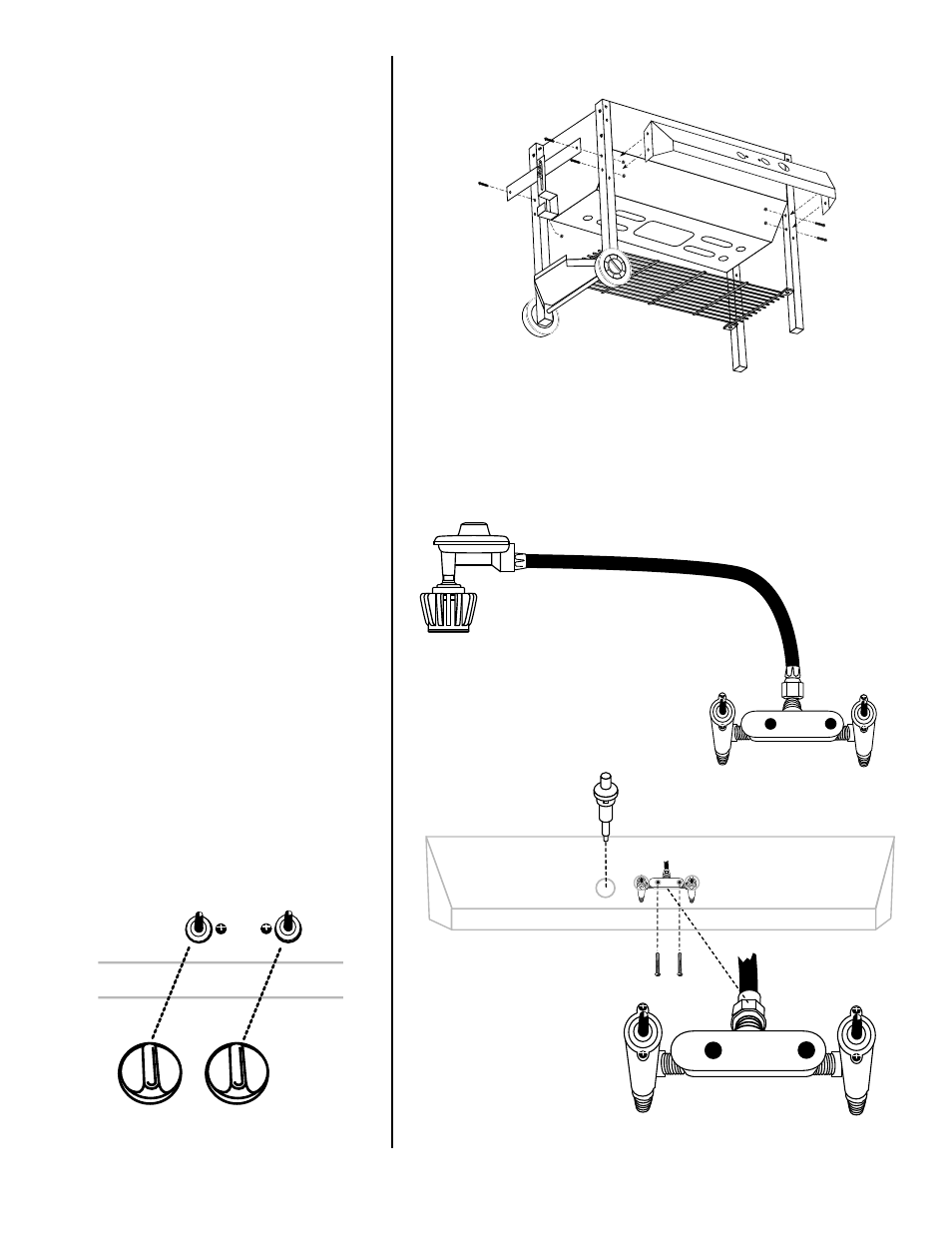

Step 6
Orient the grill so that the hood
hinge holes are at the back of the
grill. Align the control panel with the
upper set of holes on the legs just
below the bottom grill housing.
Fasten the control panel using two
6x50mm bolts and nuts.
Step 7
Align the tank hook strap to the
legs (on side with tank support
bracket). The threaded studs must
be facing away from the grill bottom
housing. Secure control panel and
tank strap using 6x50mm bolts and
nuts. Place the tank hook over the
threaded studs and secure using
two wingnuts.
Step 8
Attach the control valve manifold to
the back side of the control panel
using the two screws and lock
washers provided with the
manifold. One screw hole is offset
for proper installation. Attach the
control knobs by pressing them
onto the valve stems.
NOTE: Manifold will have offset
holes and can only be
installed by aligning
holes in manifold with
holes in control panel.
