ATTACHING THE AUXILIARY HANDLE (FIGURES F AND G)
• Push the auxiliary handle
(F1) onto the tube (F2).
• Slide the bolt (G1) through
the holes in the auxiliary
handle.
• Tighten the knob (G2) onto
the bolt by turning it
clockwise.
ADJUSTING THE POSITION OF THE AUXILIARY HANDLE
(FIG. G)
The auxiliary handle can be
adjusted to provide optimum
balance and comfort.
• Loosen the knob on the
bolt by turning it counter
clockwise.
• Gently slide the auxiliary
handle up or down the tube
to the desired height.
• Tighten the knob onto the
bolt by turning it clockwise.
8
WARNING: Before assembly, make sure that the tool is
switched off and the battery has been removed.
ASSEMBLY TOOLS REQUIRED (NOT SUPPLIED):
- Phillips Screwdriver
WARNING: Remove the
battery before attempting to
attach any of the following
components.

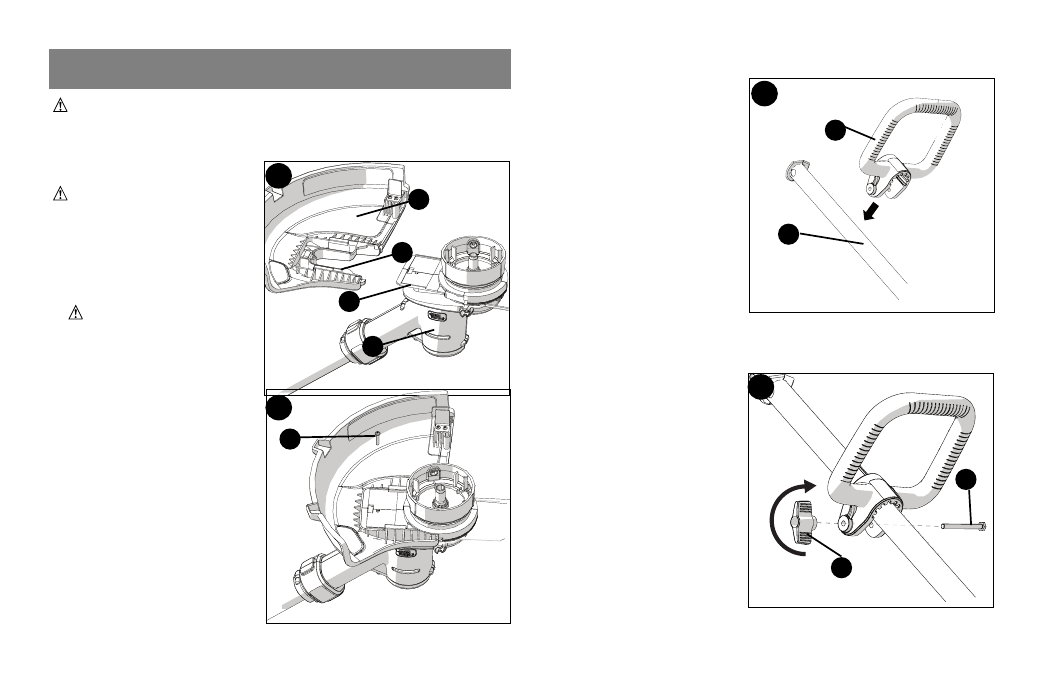

ATTACHING THE GUARD
(FIGURES D AND E)
WARNING: NEVER
OPERATE TOOL
WITHOUT GUARD FIRMLY
IN PLACE. The guard must
always be properly attached
on the tool to protect the user.
• Remove the screw from
the guard.
• Keeping the guard square
to the trimmer head slide it
into place until the retaining
tab clicks into place (Ensure
that the guide rails (D1) on
the guard (D2) are correctly
aligned with the guide rails
(D3) on the trimmer head
(D4) (figure D).
• Secure the guard with the
screw (E1) (figure E).
D
D2
D1
D3
D4
E
E1
F
F1
F2
G
G2
ASSEMBLY & ADJUSTMENT
G1
