Parts List 31
Model 12226
1 1100043 Hex Hd. Screw, 3/8-16 x 1-1/4*................... 16
2 1270-2A Bolo Tine–single, right hand tine used on left
side of tiller (Incl. two of each Ref. No.'s
1 and 3)......................................................
8
3 1733398 Hex Locknut, 3/8-16 .................................... 18
5 1982612 Hex Hd. Screw, 3/8-16 x 2, GRADE 8 .......... 2
7 1270-1A Bolo Tine–Single, left hand tine used on right
side of tiller (Incl. two of each Ref. No.'s
1 and 3)......................................................
8
8 1902154001 Tine Holder–for bolo tines, left and
right sides .................................................. 2
-- 1901118 Replacement set of 16 Bolo Tines– includes
eight each of right hand and left hand tines,
and sixteen each of Ref. No.’s 1 and 3 .......
1
10 1917487 Wheel & Tire Assembly................................ 2
11 9380 Clevis Pin–.312 x 1-3/4 long ........................ 2
12 9338 Hitch Pin ...................................................... 2
IMPORTANT: Left and right sides of tiller are determined by standing in the operator position and facing the direction of forward travel.
* Specify GRADE 5 if ordering part locally.
REF PART
No. No. DESCRIPTION QTY.
REF PART
No. No. DESCRIPTION QTY.

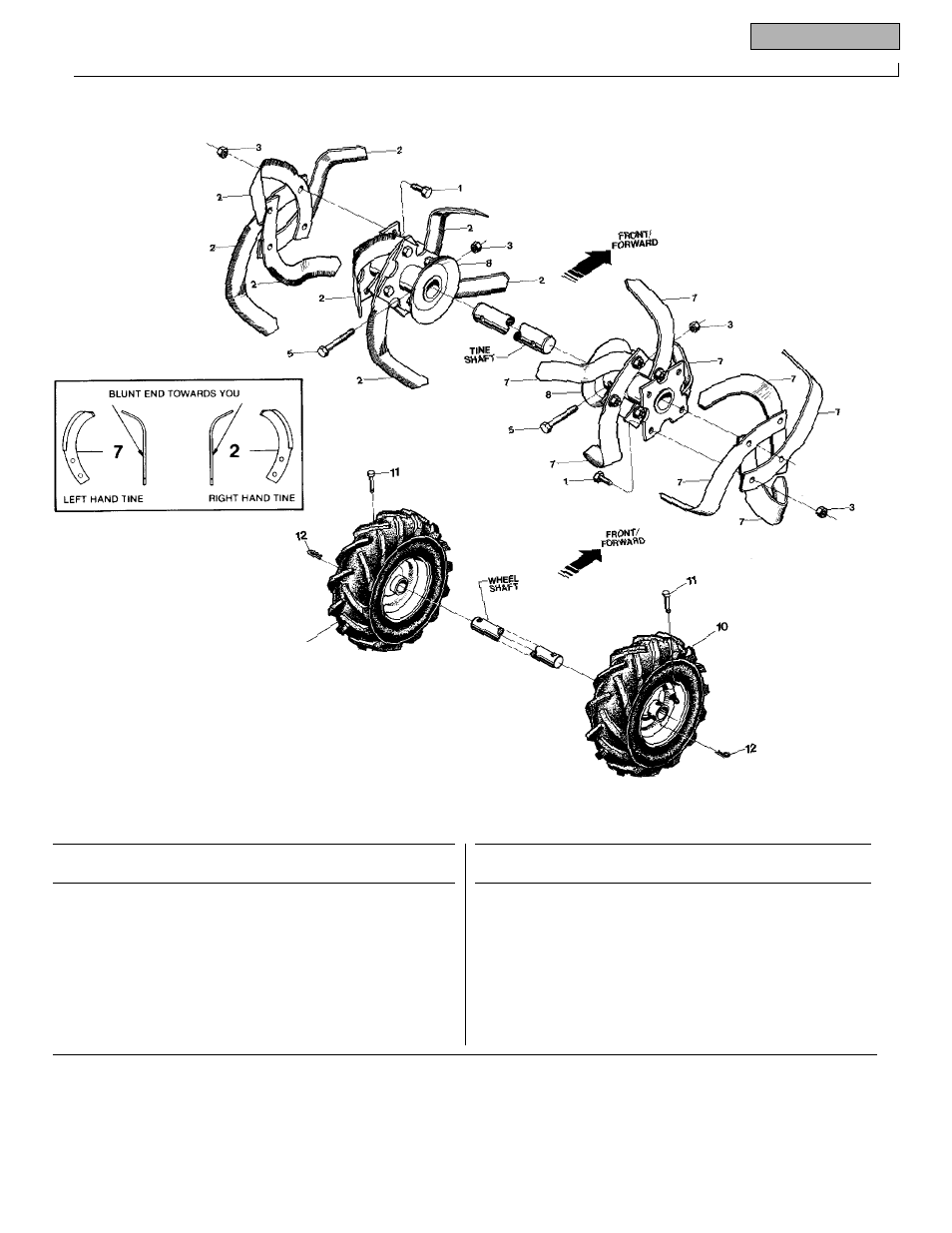

DRAWING NO. 6
10
