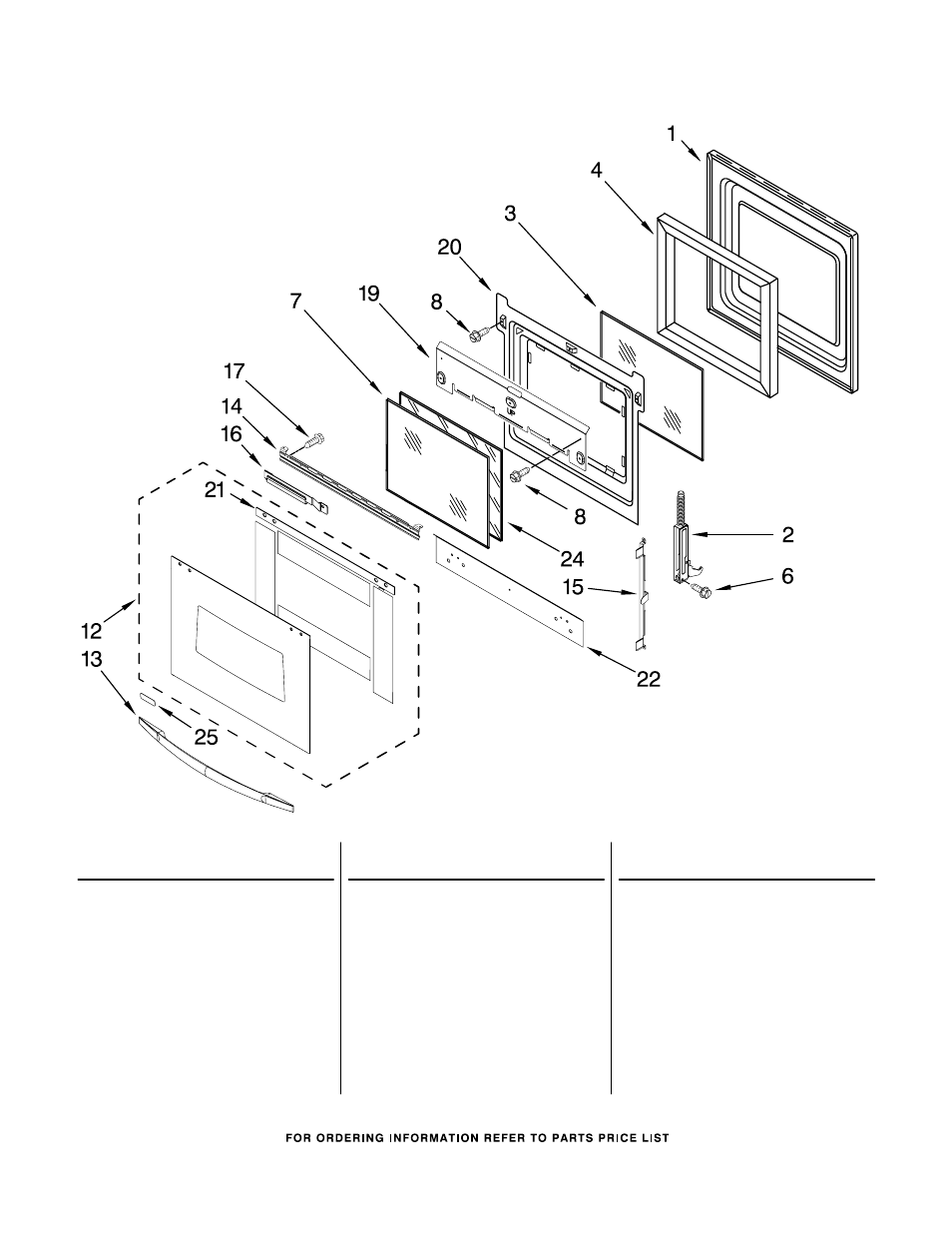

OVEN DOOR PARTS
4
For Models: RBS245PRB02, RBS245PRQ02, RBS245PRT02, RBS245PRS02
(Black) (Designer White) (Biscuit) (Stainless)
W10208654
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 8303698 Door Liner
2 Hinge, Door
9760567 Right
9760568 Left
Stainless Model
Hinges
9760569 Right
9760570 Left
3 4449247 Glass, Inner
4 4451720 Insulation, Door
6 4449743 Screw
7 9759223 Glass, Inner
8 4449809 Screw
12 Assembly, Door
Glass
8303328 Black
8303337 White
8303340 Biscuit
8303312 Stainless
13 Door Handle
8302807 Black
8302808 White
8302809 Biscuit
14 W10136471 Bracket, Handle
15
9759229 Bracket(2nd Glass)
16 9759230 Bracket(3rd Glass)
17 4451040 Screw
19 4457101 Shield, Heat
20 4457130 Retainer, Glass
21 8303876 Seal, Door Top
22 4457112 Shield, Heat
Bottom
24 9759226 Glass, Inner
25 8303811 Nameplate
