Buffalo Technology WBMR-G54 - Manual (Page 81)

WBMR-G54 Wireless ADSL Router User Guide
RIP
The Router supports RIP v1 and RIP v2 used to share routing tables with other Layer 3 routing devices on your local
network or remote LAN.

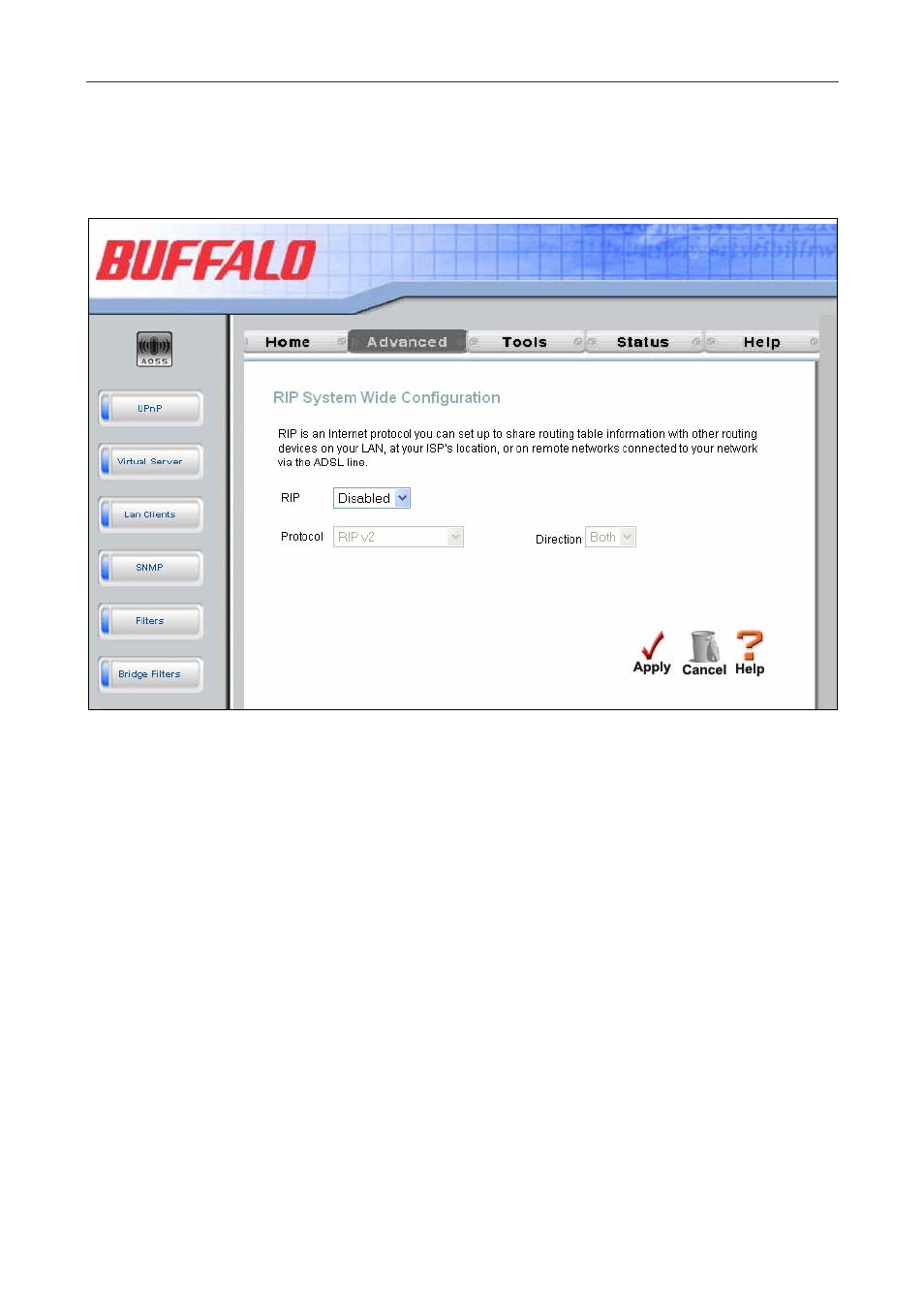

RIP System Wide Configuration window
To enable RIP, select Enabled from the RIP pull-down menu, select the Protocol (RIPv1 and RIPv1 Compatible) and
Direction (In, Out, or Both), and click Apply.
The RIPv1 Compatible option will transmit RIPv2 broadcast packets and receive both RIP v1 and RIP v2 packets.
The direction configuration refers to the RIP request. Select In to allow RIP requests from other devices. Select Out to
instruct the Router to make RIP requests for routing tables from other devices. Select Both to share routing tables in
both directions.
71
