34
Step 3: Connect to the electricity
supply
This appliance must be connected by
a competent person, using fixed
wiring via a double pole switched
fused spur outlet, with a contact
separation of 3mm at all poles.
Use a 13 amp fuse.
We recommend that the appliance is
connected by a qualified electrician,
who will comply with the I.E.E. and
local regulations.
Warning:
This appliance must be
earthed.
The wires in the mains lead are
coloured in accordance with the
following code: Green & Yellow =
earth, Blue = neutral, Brown = live.
As the colours of the wires in the mains
lead for the appliance may not
correspond with the coloured markings
identifying the terminals in your spur
box, proceed as follows:
1. The wire which is coloured green
and yellow must be connected to
the terminal marked E (Earth)
or
coloured green.
2. The wire which is coloured blue
must be connected to the terminal
marked N (Neutral)
LOAD
or
coloured Black.
3. The wire which is coloured brown
must be connected to the terminal
marked L (Live)
LOAD
or coloured
Red.
If the supply cord is damaged, obtain
a special cord from the Customer
Support Helpline, which must be fitted
by a qualified person.
Installation Instructions
USE A 13 AMP FUSE
FUSE
ON

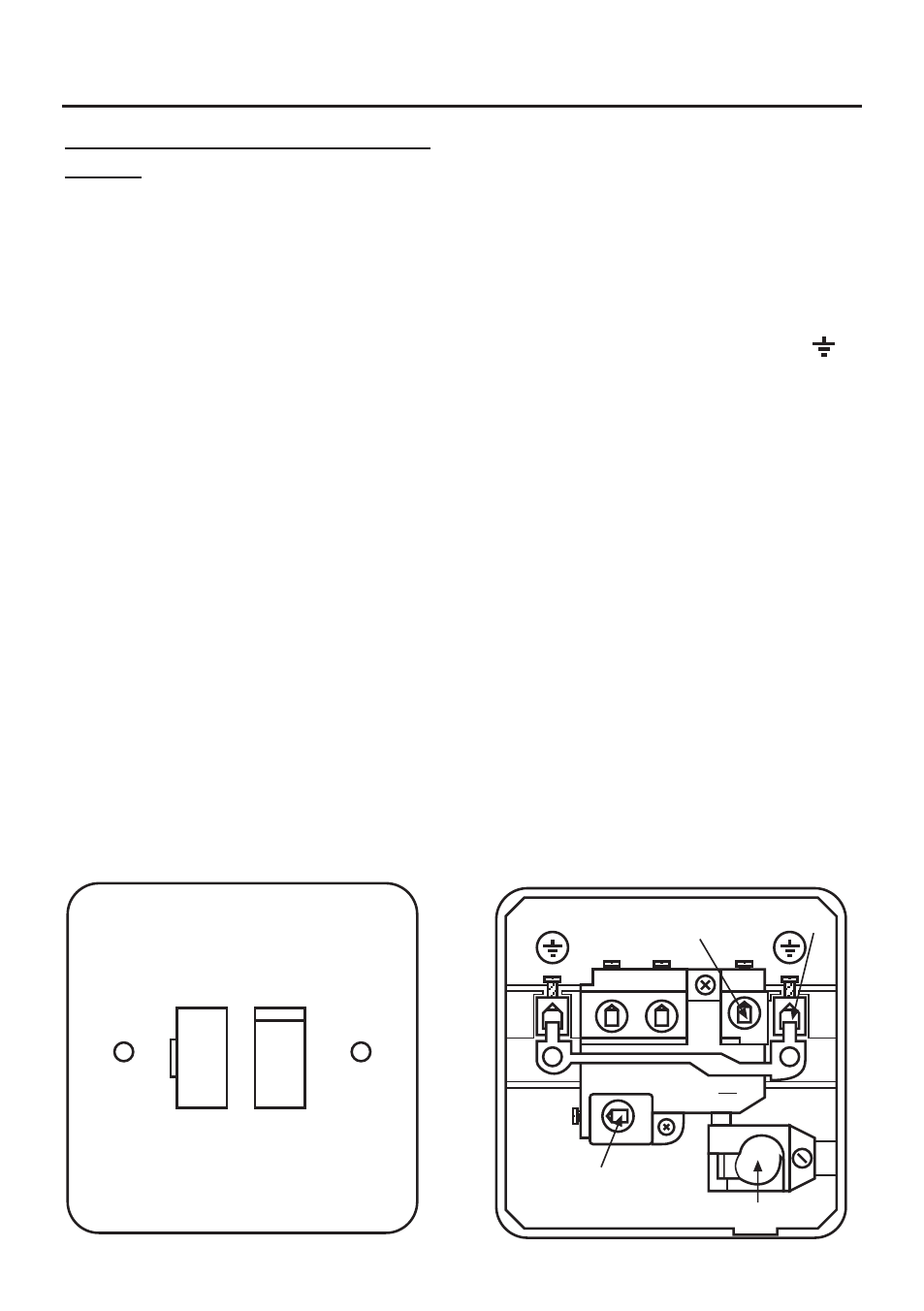

Typical example of a double
pole fuse spur outlet
Live
Earth
Neutral
Cable
N L OAD
L OAD L N
SUPPLY
L
13
250
~
