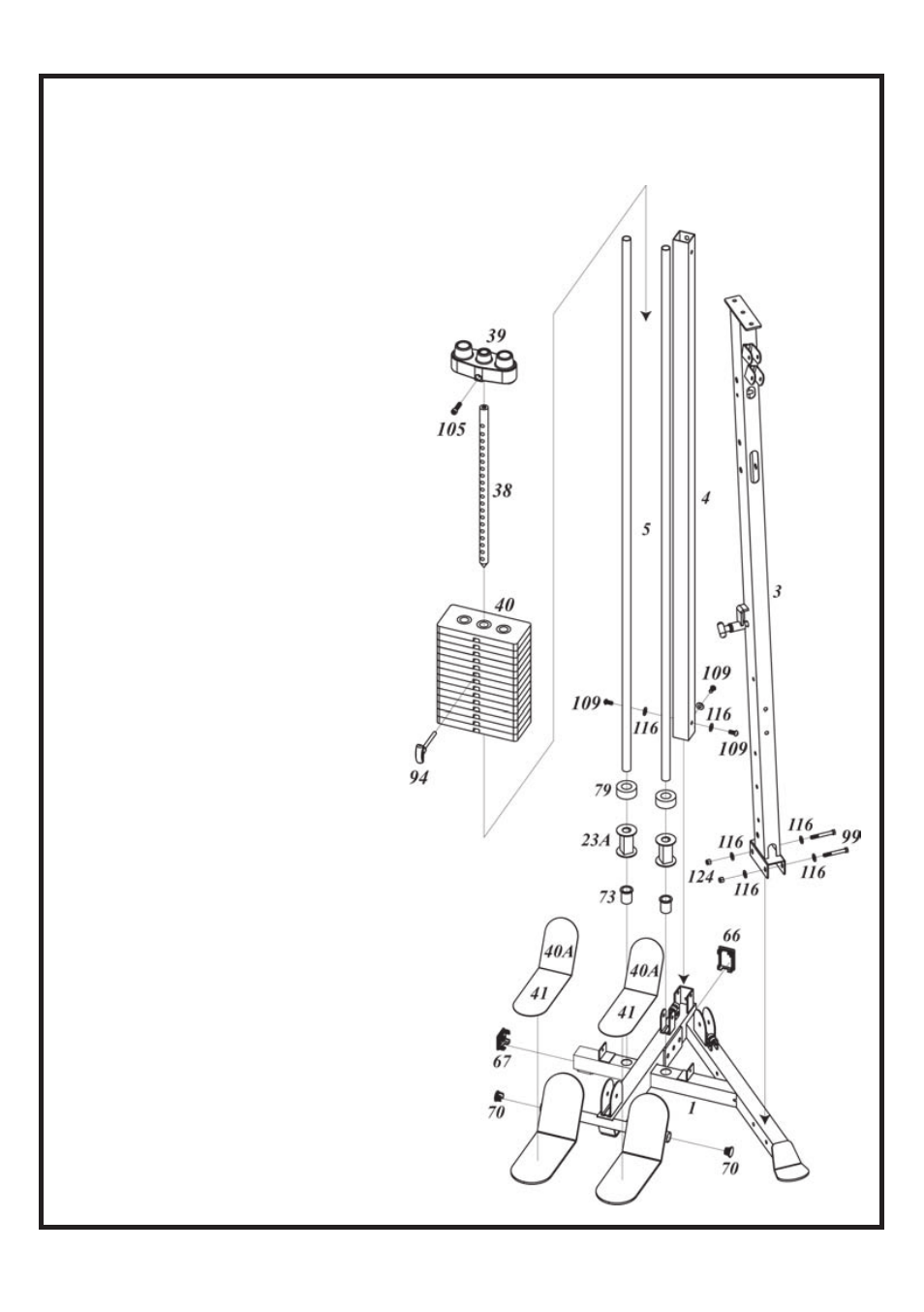

STEP 1 ASSEMBLE BASE FRAME
2. Attach Rear Upright (4) to Base Frame
(1), using three 3/8" X 3/4" Hex
Screws (109) and three 3/8" Washers
(116).
3. Insert two 1" ID Plastic Guide Rod
Holders (73) into the holes on the
Base Frame (1). Insert the Guide
Rods (5) into the 1" ID Plastic Guide
Rod Holders (73). Slide the 200Lbs
Stack Spacers (23A) onto the guide
rods, followed by the Rubber Cushions
(79).
Important: If you have purchase the
optional 200Lbs pound weight
stack, please use the 200Lbs
Shorter Stack Spacers (23A) in
place of the 150Lbs Longer Stack
Spacers (23).
4. Slide the Weight Plates (40) onto
the Guide Rods (95), making sure to
orient the selector holes toward the
front and bottom. Attach the Top Plate
(39) to the Selector Rod (38) using the
Top Plate Bolt (105). Tighten the Top
Plate Bolt (105) using a hex key. Slide
the Top Plate onto the guide Rods,
running the Selector Rod (94) down
through the center holes of the Weight
Plates (40).
5. Install the plastic end caps as shown.
Insert the two 1-1/4" Round End Plugs
(70) into the ends of the round Foot
Plate Tube. Insert one 50 X 75mm
Rect. End Cap (66) into the rear of the
Base Frame (1). Insert one 50mm Sq.
End cap into the side of the Base
Frame (1).
To ease the assembly process, Do Not tighten bolts until instructed.
1. Attach Front Upright (3) to Base Frame (1), using two 3/8" X 3"
Hex Bolts (99), four 3/8" Washers (116) and two 3/8" Nuts
(116).
