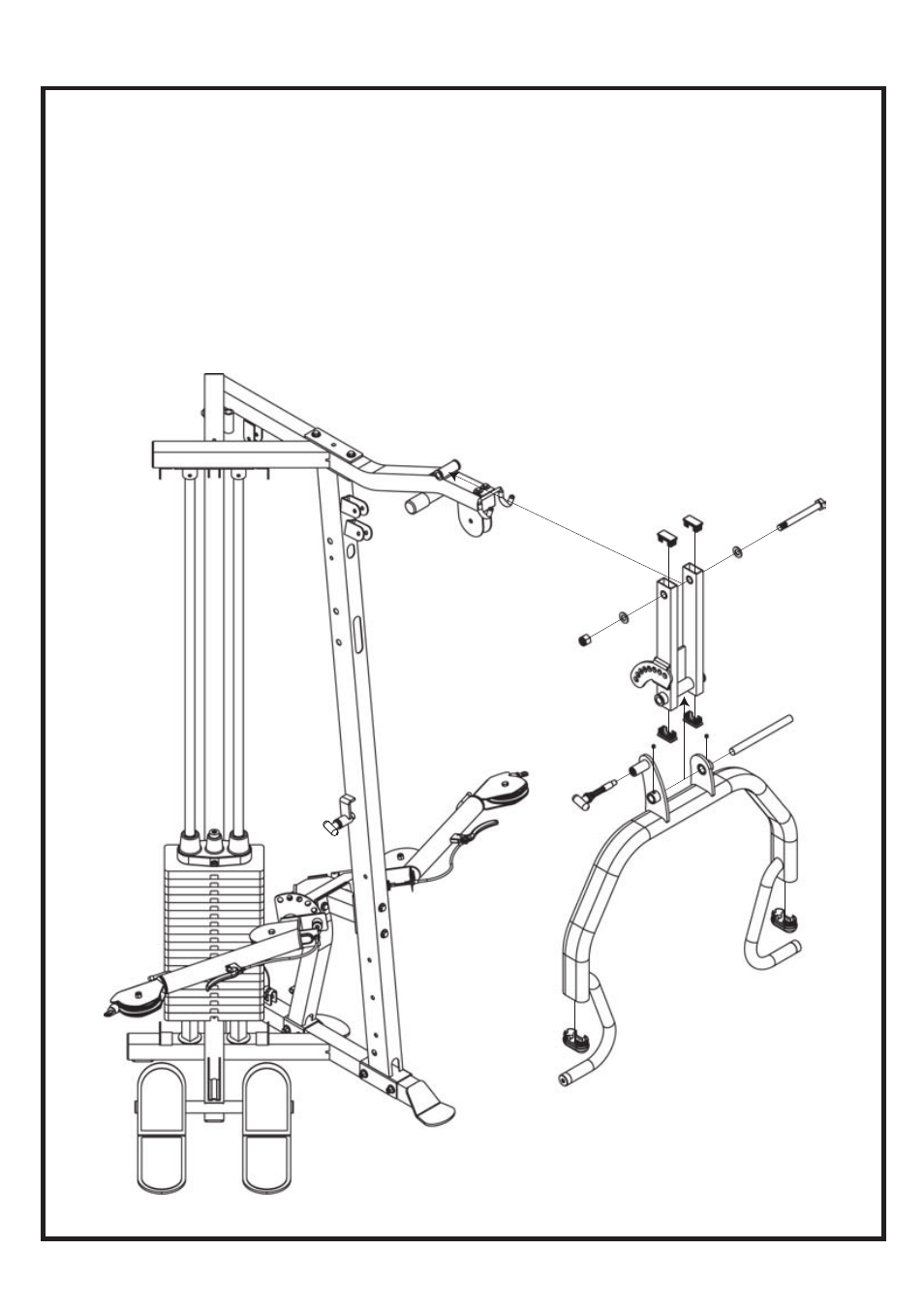

STEP 4 ASSEMBLE PRESS STATION
95
115
115
123
112
28
7
69
69
112
85
13
2
68
68
1. Attach Press Arm Support (13) to the Top Frame (2) by aligning the holes and inserting
the 5/8" X 5-1/2" Hex Bolt (95) with two 5/8" Washers (115) and one 5/8" Nylon Nut
(123).
2. Attach four 25 X 50mm Rect. End Caps (68) to Press Arm Support (13).
3. Attach Press Arm (7) to the Press Arm Support (13) by aligning the holes and inserting
the Press Arm Axle (28). Tighten the pre-installed 5/16"X 1/4" Set Screws (112) on the
Press Arm (7). Make sure the Longer Red Pop Pin (85) is seated in one of the
adjustment holes on the Press Arm Support (13).
