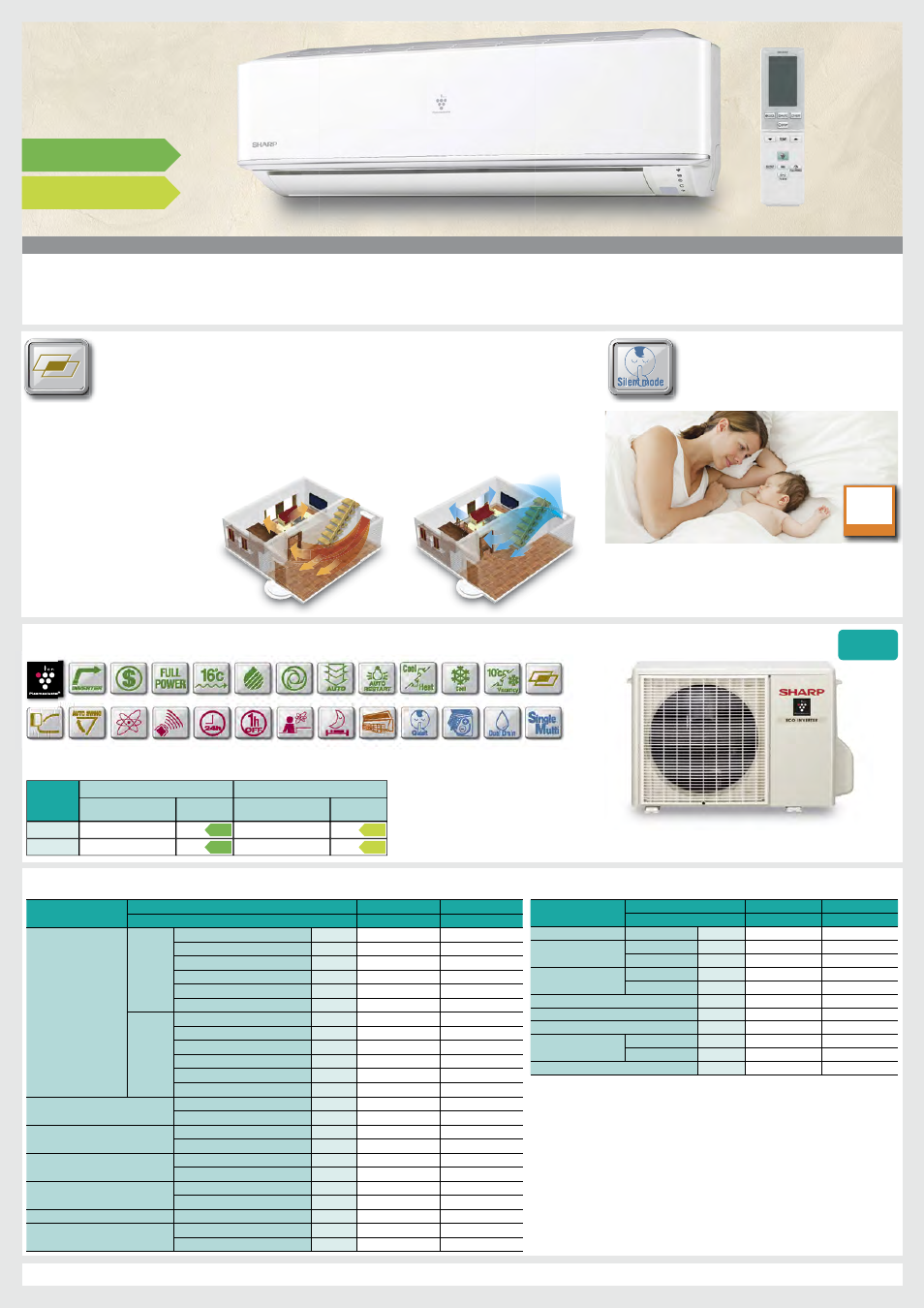

Ay-xpc9/12phr, R410a, Seer a++ scop a – Sharp AY-XP9RMR-AE-X9RMR User Manual
Page 9: Super deluxe new, Specifi cation, Heating cooling

8
SEER A++
SCOP A+
Super Deluxe
NEW
AY-XPC9/12PHR
Multi Space function controls the airfl ow for quick,
constant conditioning
Only 21 dB
Pressing Multi Space button will keep several rooms comfortable. By placing
an indoor unit in the living room, stairwell, or wherever you wish, this function
will quickly heat or cool a number of rooms to the set temperature. Then, the
fan speed and the louver
angle are automatically
controlled to circulate
warm or cool air gently
and uniformly to every
corner.
Pressing the Silent button switches to an extra low
fan speed with 21-dB silence. This combines with
high-density Plasmacluster ions to provide good,
sound sleep.
Specifi cation
HEATING COOLING
Q u i e t
21
dB
Features
Cool/Dry/Heat
Outdoor unit
AE-X9PHR AE-X12PHR
R410A
• Plasmacluster ion device
• Coanda Airfl ow System
• Can be used singly or in
a multi split system
(except for the AY- XPM7PHR)
Model
AY-XPC9PHR
AY-XPC12PHR
3.20 (0.90 – 4.70) 4.0
Heating operation
Capacity (kW)
(Min. – Max.)
SCOP
4.00 (0.90 – 5.00) 4.0
+A
+A
2.50 (0.90 – 3.00) 6.3
Cooling operation
Capacity (kW)
(Min. – Max.)
SEER
3.50 (0.90 – 3.80) 6.3
++A
++A
Model
Indoor
AY-XPC9PHR
AY-XPC12PHR
Outdoor
AE-X9PHR
AE-X12PHR
Preformance*1
Cooling
Energy Effi ciency Class
A++
A++
SEER
6.3
6.3
Pdesign
kW
2.5
3.5
Capacity (Min. – Max.)
kW
2.50 (0.90 – 3.00)
3.50 (0.90 – 3.80)
Input (Min. – Max.)
W
580 (200 – 800)
1,000 (200 – 1,250)
Annual electricity consumption*2
kWh/a
138
193
Heating
(Average
Climate)
Energy Effi ciency Class
A+
A+
SCOP
4.0
4.0
Pdesign
kW
3.2
3.4
Capacity (Min. – Max.)
kW
3.20 (0.90 – 4.70)
4.00 (0.90 – 5.00)
Input (Min. – Max.)
W
800 (170 – 1,380)
1,080 (170 – 1,420)
Annual electricity consumption*2
kWh/a
1,100
1,180
Nominal Effi ciency*3
EER
4.31
3.50
COP
4.00
3.70
Nominal Current*3
Cooling
A
3.2
4.6
Heating
A
3.8
5.0
Sound Pressure Level*4 (Cool)
Indoor (Hi/Lo)
dB(A)
39/26
42/27
Outdoor
db(A)
48
49
Sound Power Level (Cool)
Indoor (Hi)
54
56
Outdoor
62
64
Airfl ow Volume (Hi, Cool)
m3/min
9.7
10.8
Operation Range (Outdooor)
Coolong
°C
-10 – 46
-10 – 46
Heating
°C
-15 – 24
-15 – 24
Model
Indoor
AY-XPC9PHR
AY-XPC12PHR
Outdoor
AE-X9PHR
AE-X12PHR
Power Supply
Outdoor
V/Phase/Hz 220 – 240/single/50 220 – 240/single/50
Dimensions
Indoor (WxHxD)
mm
920x290x240
920x290x240
Outdoor (WxHxD)
mm
780x540x269
780x540x269
Weight
Indoor
kg
10
10
Outdoor
kg
36
38
Min. – Max. Pipe Lenght
m
3 – 20
3 – 20
Max. Height Difference
m
10
10
Max. Chargless Lenght
m
10
10
Pipe Diameter
Liquid Side
inch
1/4
1/4
Gas Side
inch
3/8
3/8
Refrigerant (GWP*5)
kgCO
2
eq.
R410A (1975)
R410A (1975)
*1 According to EN14825
*2 Energy consumption “XYZ” kWh per year, based on standard test results. Actual energy
consumption will depend on how the appliance is used and where it is located.
*3 According to EN14511
*4 Sound pressure level is measured according to JIS C 9612.
*5 Refrigerant leakage contributes to climate change. Refrigerant with lower global
warming potential (GWP) would contribute less to global warming than a refrigerant
with higher GWP, if leaked to the atmosphere. This appliance contains a refrigerant fl uid
with a GWP equal to 1975. This means that if 1 kg of this refrigerant fl uid would be leaked
to the atmosphere, the impact on global warming would be 1975 times higher than 1 kg
of CO
2
, over a period of 100 years. Never try to interfere with the refrigerant circuit
yourself or disassemble the product yourself and always ask a professional.
