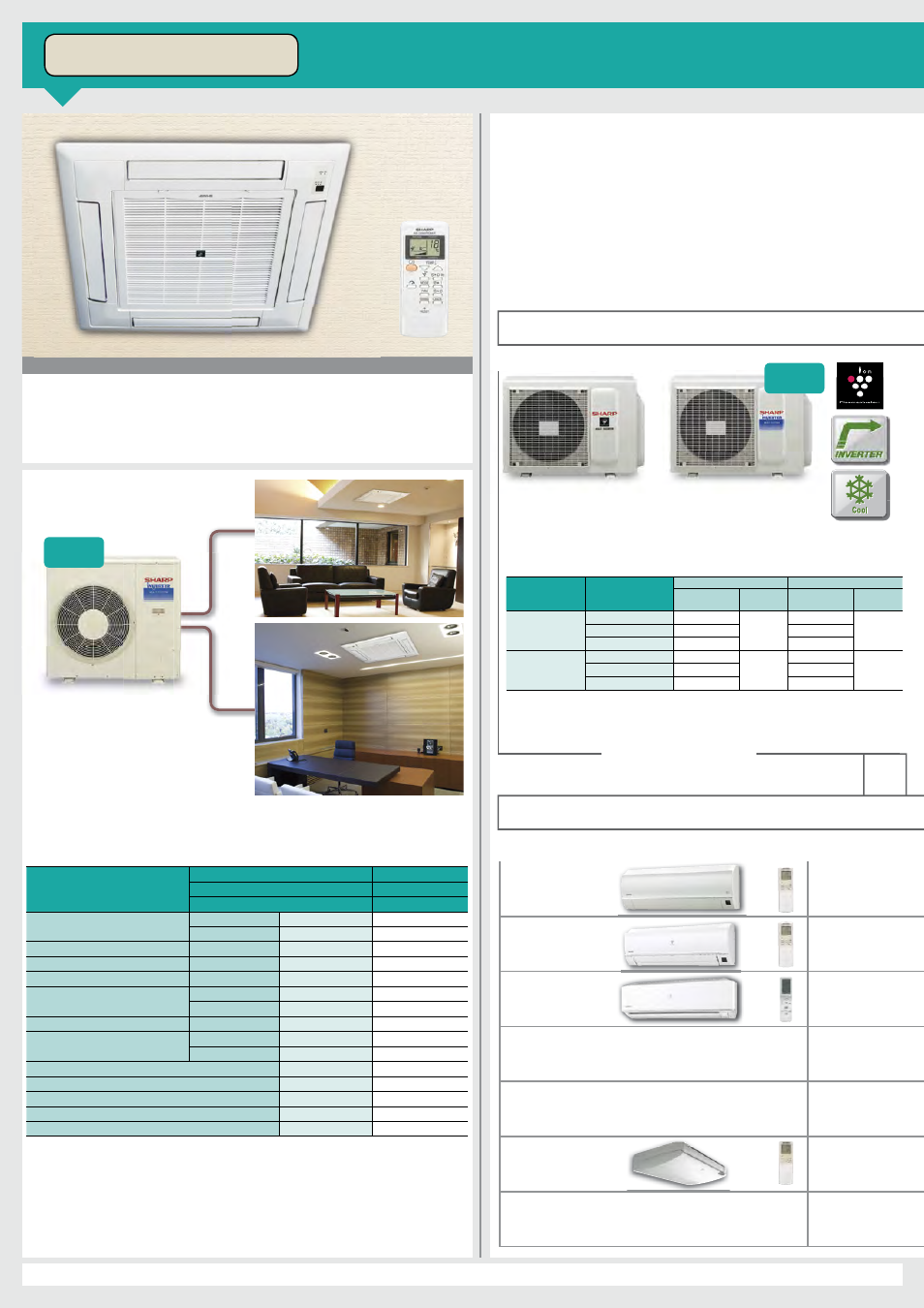

15
Cassette
NEW
GX-XPC18PR
AE-XM30GR
Features
A wide variety of choices
Sharp’s multi-split air conditioning systems allow you to
combine up to four indoor
units with a single outdoor unit. The indoor units can be wall
mounted types, fl oor/ceiling types,
or fl oor standing types. This wide-ranging choice of indoor
units offers you more fl exible
coordination for each room.
* See the specifi cation table for multi type indoor and outdoor units on page 17.
*1 AE-X2M14LR Representative connection (7+7)
*2 AE-X2M18KR Representative connection (9+9)
* Two indoor units must be connected.
* See the capacity table on page 17 for permissible combinations.
R410A
• Compact design for easy installation
• Low noise level
• Wireless remote control
• Energy save setting
• Automatic swing louvers
Model
Indoor
GX-XPC18PR*
Panel frame
AZ-XP18PR
Outdoor
AE-XM30GR
Capacity*1
Cool (Max. – Min.)
kW
8.4 (4.3 – 9.0)
Heat (Max. – Min.)
kW
9.0 (4.4 – 10.6)
Power Supply
Outdoor
V/Phase/Hz
230/single/50
Sound Pressure Level*2
Indoor (Hi/Lo)
dB(A)
42/40
Sound Power Level
Indoor (Hi)
55
Dimensions
Indoor (WxHxD)
mm
840x265x840
Outdoor (WxHxD)
mm
950x60x950
Weight
Indoor
kg
20
Pipe Diameter
Liquid Side
inch
1/4
Gas Side
inch
1/2
Min. – Max. Pipe Lenght (per Indoor Unit)
m
3 – 20
Maximum Length (total)
m
40
Max. Height Difference
m
10
Max. Chargless Lenght (total)
m
40
Refrigerant (GWP*3)
kgCO
2
eq.
R410A (1975)
*1 According to EN14511/ tested 2 units of GX-XPC8PR with AE-XM30GR.
*2 Sound pressure level is measured according to JIS C 9612.
*3 Refrigerant leakage contributes to climate change. Refrigerant with lower global warming potential (GWP)
would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere.
This appliance contains a refrigerant fl uid with a GWP equal to 1975. This means that if 1 kg of this
refrigerant fl uid would be leaked to the atmosphere, the impact on global warming would be 1975 times
higher than 1 kg of CO
2
, over a period of 100 years. Never try to interfere with the refrigerant circuit yourself
or disassemble the product yourself and always ask a professional.
* This product is designed to have two cassette units connecting to AE-XM30GR only.
Outdoor unit lineup
AE-X2M14LR
Example of indoor unit combinations
7
9
AE-X2M18KR
2 indoor units
Outdoor Unit
Indoor Unit
Cooling Operation
Heating Operation
Capacity (kW)
(Min. – Max.)
SEER
Capacity (kW)
(Min. – Max.)
SCOP
AE-X2M14LR
Cool/Heat/Dry
12 + 7
3.8 (1.8 – 4.3)
6.4
*1
4.4 (1.9 – 5.4)
4.4
*1
9 + 9
3.8 (1.8 – 4.3)
4.4 (1.9 – 5.4)
7 + 7
3.8 (1.8 – 4.3)
4.4 (1.9 – 5.4)
AE-X2M18KR
Cool/Heat/Dry
12 + 7
5.2 (1.8 – 6.0)
6.2
*2
5.8 (1.9 – 7.3)
4.2
*2
9 + 9
5.2 (1.8 – 6.0)
5.8 (1.9 – 7.3)
9 + 7
4.7 (1.8 – 5.6)
5.4 (1.9 – 7.0)
2 ROOMS
R410A
Connection indoor units
Wall mounted
AY-XPM7FR
Wall mounted
AY-XPM9FR
Wall mounted
AY-XPM12FR
Wall mounted
AY-XPC7JR
Wall mounted
AY-XPC9JR
Wall mounted
AY-XPC12JR
Wall mounted
AY-XPM7PHR
NEW
Wall mounted
AY-XPC9PHR
NEW
Wall mounted
AY-XPC12PHR
Wall mounted
AY-XPC18LR
Floor standing
GS-XPM9FGR
Floor standing
GS-XPM12FGR
Floor standing
GS-XPM18FGR
For AE-XM30GR only*
Floor/ceiling
GS-XPM7FR
Floor/ceiling
GS-XPM9FR
Floor/ceiling
GS-XPM12FR
NEW
GS-XPC18PR
INVERTER
MULTI TYPE
