ASSEMBLING TABLE
TO MACHINE
1. Locate table locking lever (shown disassembled)
Fig. 4, M10 flat washer (B) and 4mm wrench (C).
2. Using the 4mm wrench (C) Fig. 4, supplied, remove
screw (D) and spring (E) from handle (A) and remove
handle from nut (G). Do not lose spring (E).
3. Place table (H) Fig. 5, onto the band saw frame so
that stud (J) Fig. 6, and keepers (K) protrude through
the slot of trunnion (L) Fig. 7.
4. Open hinged door. (See section “OPENING AND
CLOSING DOOR”.)
5. While pressing in on stud (M) Fig. 8 with a pencil,
place an M10 flat washer (B) Fig. 7, onto stud and
thread nut (G) onto stud as shown in Fig. 7.
WARNING: FOR YOUR OWN SAFETY, DO NOT
CONNECT THE MACHINE TO THE POWER SOURCE
UNTIL THE MACHINE IS COMPLETELY
ASSEMBLED AND YOU READ AND UNDERSTAND
THE ENTIRE INSTRUCTION MANUAL.

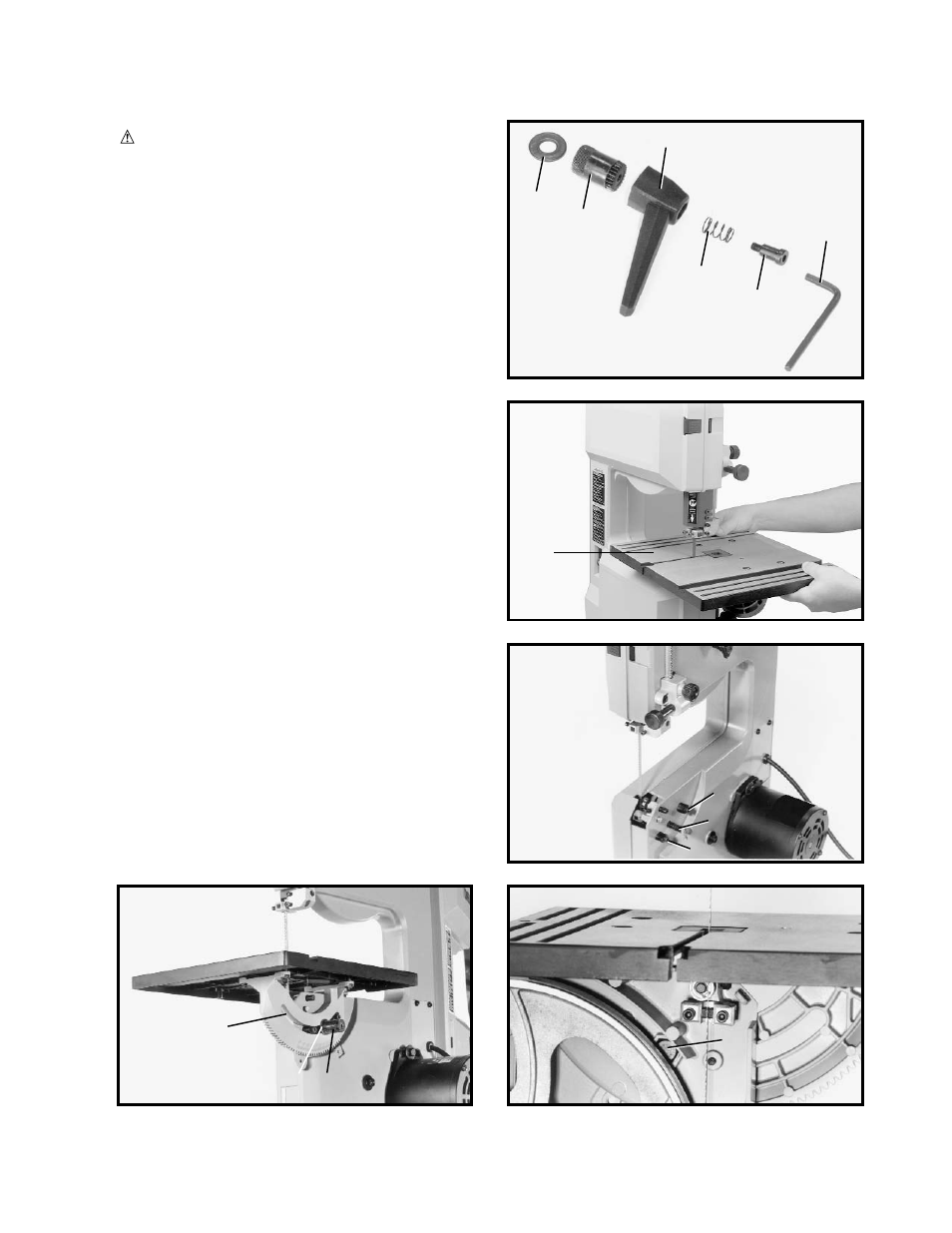

Fig. 4
