Page 6

background image

6

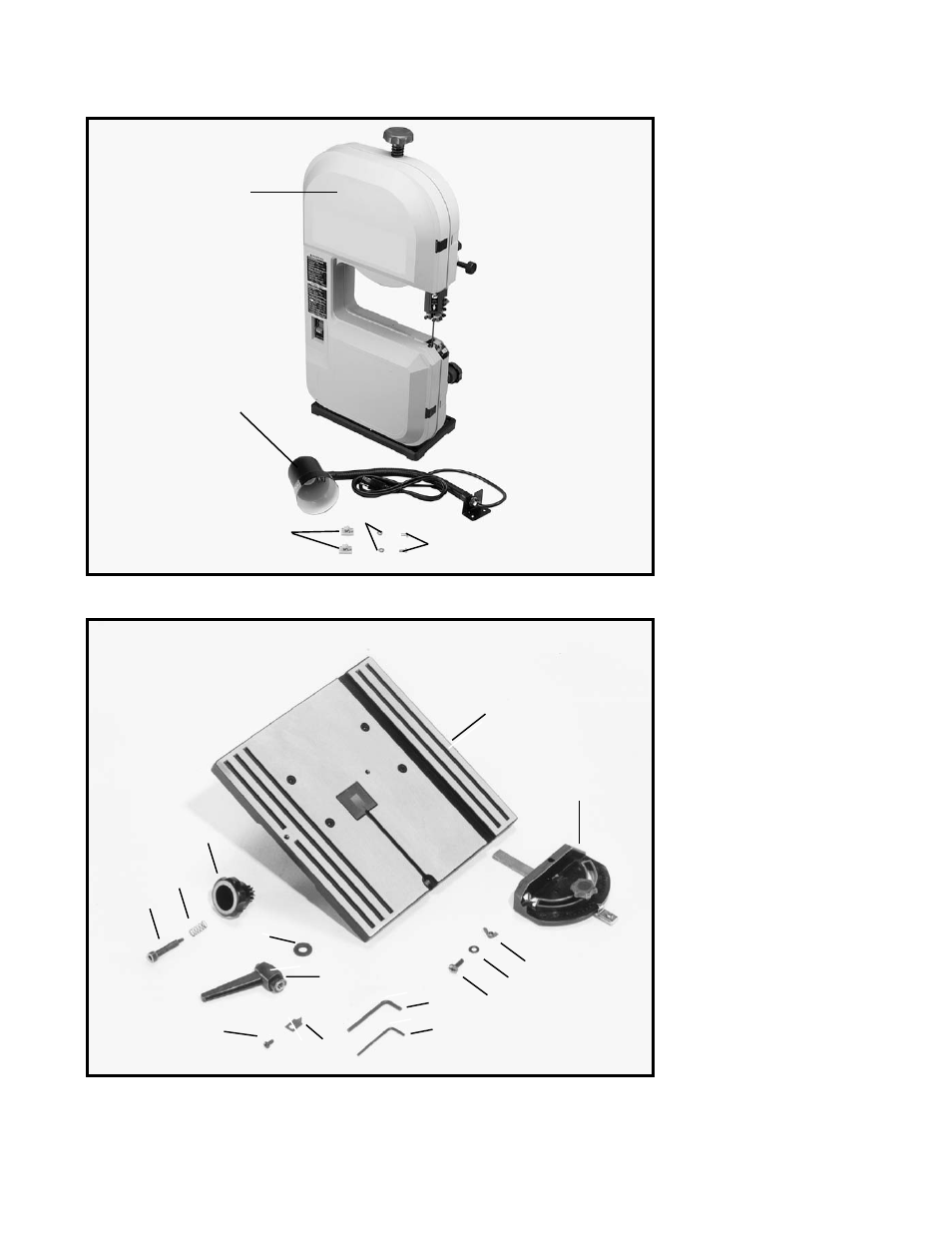

1 - Band Saw

2 - Lamp

3 - Lamp Cord Clamps(2)

4 - 1/4in. Lockwashers (2)

5 - M6x1x12mm Cap

Head Screws (2)

Fig. 2

6 - Table

7 - M6x1 Wing Nut

8 - M6 Flat Washer

9 - M6x1x30mm Pan

Head Screw

10 - 4mm Hex Wrench

11 - 3mm Hex Wrench

12 - Pointer

13 - M5x.8x10mm Pan

Head Screw

14 - M10 Flat Washer

15 - Lever Assembly

16 - Pinion Knob

17 - Spring

18 - Special Screw

19 - Miter Guage

Fig. 3

6

7

8

9

10

11

12

13

15

14

16

17

18

1

2

3

4

5

19

(Optional)

9 IN. BENCH BAND SAW PARTS
