FM antenna connections
1. Plug the antenna connector into the FM ANTENNA jack on the back of the Lifestyle ® music
center.
2. Spread out the antenna arms. Experiment with both the placement and the angle of this
antenna to provide optimum FM reception.
AM antenna connections
Note: To install the AM antenna on a wall, follow the instructions enclosed with the antenna.
1. Loosen the AM ANTENNA screw terminals on the back of the Lifestyle ® music center.
2. Slide the wire connectors around the screw terminals. Tighten the screws over the con-
nectors.
3. Stand the loop antenna on the base, following the instructions enclosed with the antenna.
4. Move the loop part of the antenna at least 20 inches (50 cm) from the music center.
Experiment with the orientation of the loop for optimum AM reception.
Note: Outdoor antennas may be used with the music center antenna connections. To install
an outdoor antenna, consult a qualified installer. Follow all safety instructions.
Connecting to a cable radio signal
To connect your system to the FM signal available from some cable TV companies, contact
your cable provider for assistance. The connection is made to the FM 75
Ω EXTERNAL
antenna connector on the back of the system.
CAUTION: Be certain that the installation includes a signal splitter so that only the FM band,
not the cable TV band, is transmitted to the system. It is necessary to use a splitter that filters
the signal to prevent any re-emissions of the TV spectrum through the system.
Attach the wire cover
To hide the wires and jacks from view, after all the connections are completed, attach the wire
cover to the music center. The five tabs on the wire cover snap into matching slots on the
music center back panel.
Figure 12
The wire cover
Connect the antennas

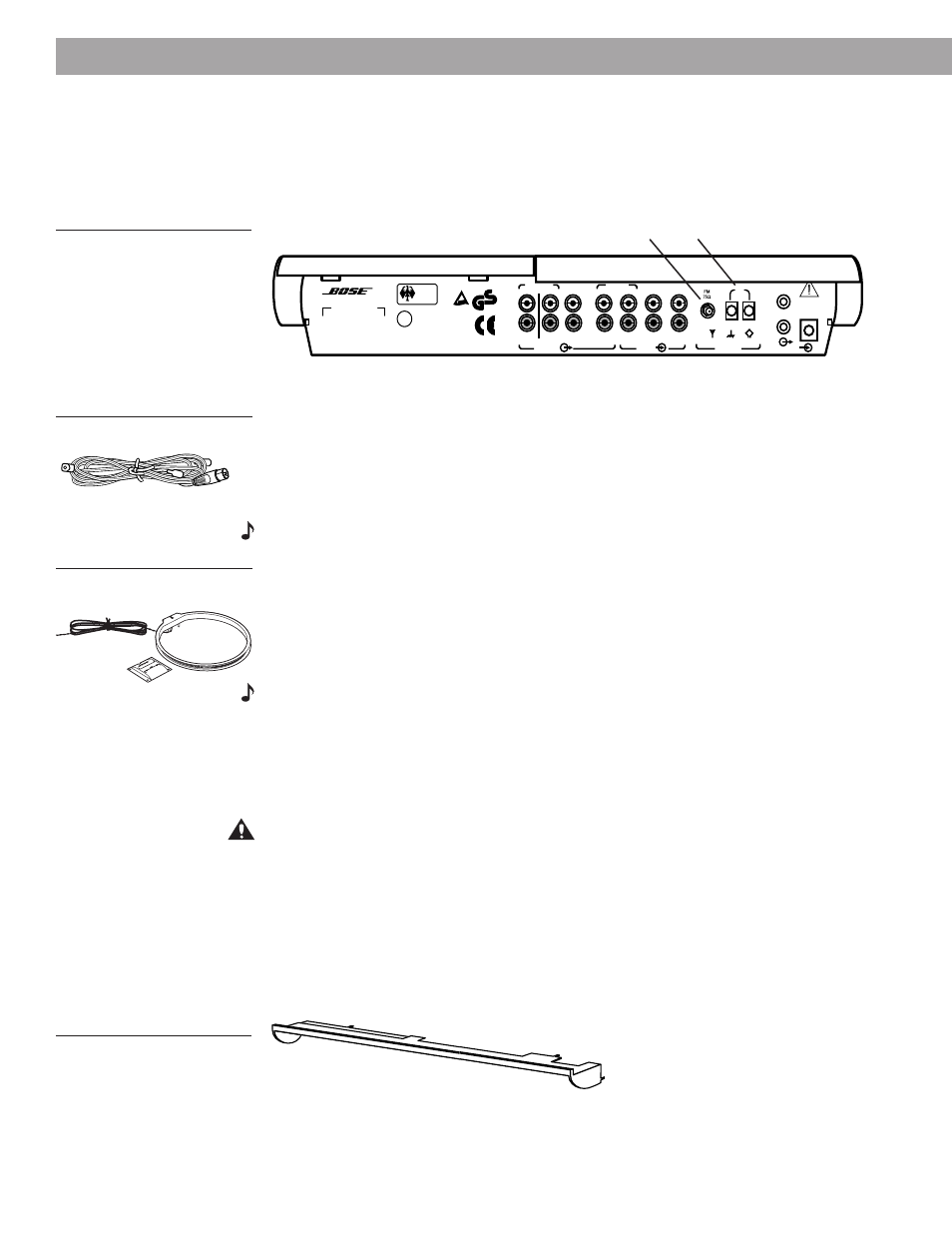

The rear panel of your Lifestyle ® music center provides connections for AM and FM antennas
(Figure 9). Unwind each antenna’s wires. Antennas provide better reception when their wires
are not bundled.
Figure 9
The antenna connections
Setting Up
POWER
12VAC IN ~
1.0A
SYSTEM
CONTROL
1
2
AM
LOOP
ANTENNA
AUX VIDEO SOUND
B
R
INPUT
PLAY REC
OUTPUT
A
L
R
L
SPEAKERS FIXED TAPE B
Z
T G642
950 D S
BOSE Corporation
UL
®
LISTED 917D
AUDIO
EQUIPMENT
MANUFACTURED:
geprüdfte
Sicherheit
93
TÜV Rheinland
BOSE CORPORATION, FRAMINGHAM, MA 01701-9168 MADE IN USA
®
LIFESTYLE MODEL 5 MUSIC CENTER ®
AM antenna
terminals
FM antenna
jack
Figure 10
The FM dipole antenna
Figure 11
The AM loop antenna
