AM251174_03_V.pdf October 22, 2001 11
Connecting other components to the Lifestyle ® 5 music system
Use standard audio cables to connect other components to your Lifestyle ® music system,
matching the red connector to R (right) and white or black connector to L (left). For additional
assistance with connecting other components, see your components manuals.

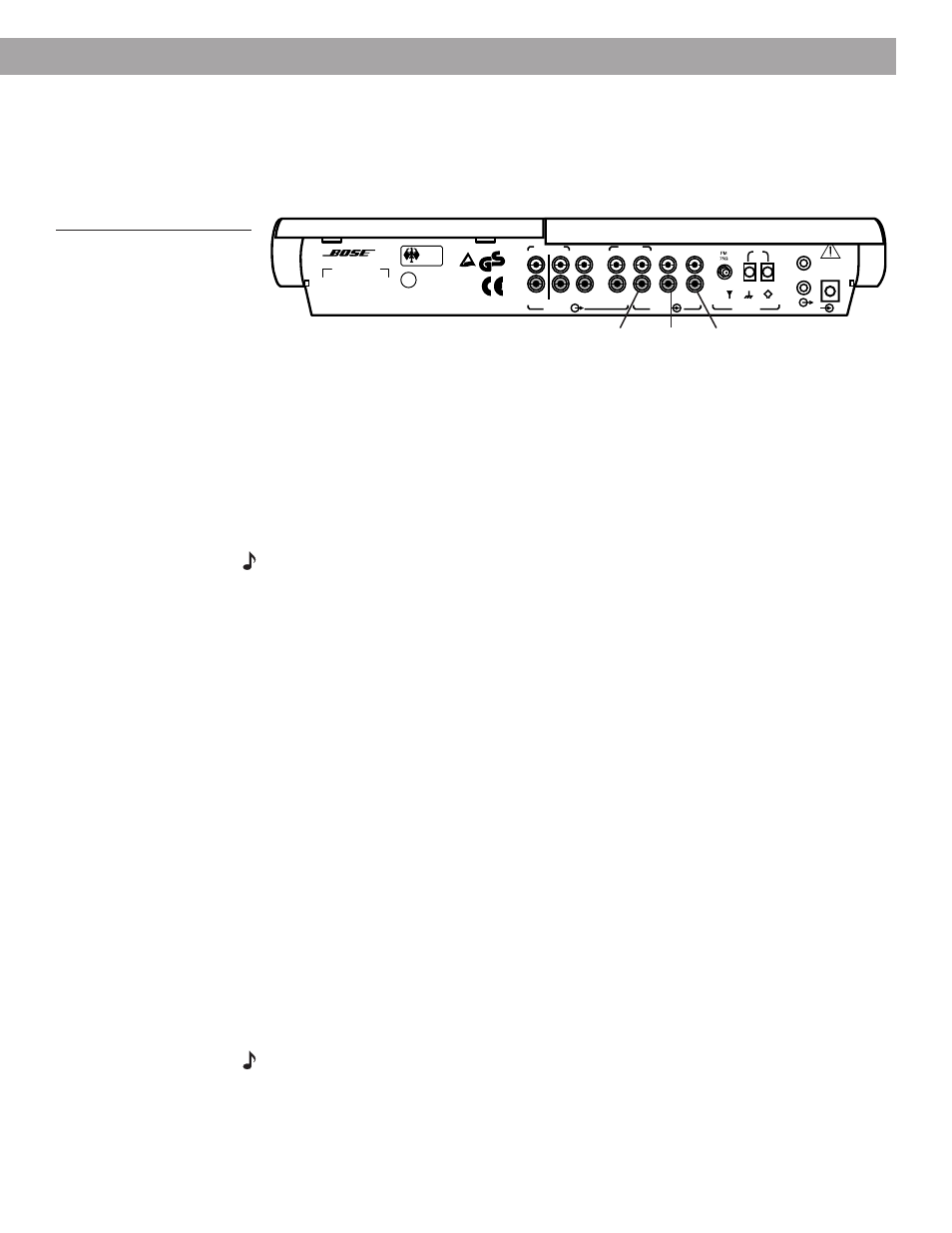

Figure 8
Music center connectors
Setting Up
POWER
12VAC IN ~
1.0A
SYSTEM
CONTROL
1
2
AM
LOOP
ANTENNA
AUX VIDEO SOUND
B
R
INPUT
PLAY REC
OUTPUT
A
L
R
L
SPEAKERS FIXED TAPE B
Z
T G642
950 D S
BOSE Corporation
UL
®
LISTED 917D
AUDIO
EQUIPMENT
MANUFACTURED:
geprüdfte
Sicherheit
93
TÜV Rheinland
BOSE CORPORATION, FRAMINGHAM, MA 01701-9168 MADE IN USA
®
LIFESTYLE MODEL 5 MUSIC CENTER ®
Tape input
jacks
Auxiliary
input jacks
Video sound
input jacks
Video components
To play video sound through your Lifestyle ® music system, connect the R and L audio outputs
(fixed outputs preferred) of your stereo TV, stereo VCR, DVD, or laserdisc player to the music
center VIDEO SOUND input jacks. You can use a Y-adapter (available at electronics stores) to
connect a mono source. However, the left and right speakers then play the same monaural
sound.
Your TV is the display for the video (picture) signal. The video signal should not be connected
to the Lifestyle
® music system.
Note: To ensure proper stereo sound, connect the L and R audio outputs from your stereo
VCR directly to your music center L and R VIDEO SOUND inputs.
If you prefer to connect the audio outputs from your TV to the music center, be sure to use the
L and R audio outputs and the video output from the VCR to the TV, in addition to coaxial
cable.Then, for proper playback of stereo-encoded video tapes, use the TV remote control to
select the correct TV inputs (for example, change from “ANTENNA A” to “VIDEO 1” to receive
the sound transmitted through the L and R connections). See your TV owner’s manual for
assistance.
Other connections
Tape deck
To use an external tape recorder (analog audio cassette, analog open reel, digital audio tape,
Digital Compact Cassette, or MiniDisc), connect the inputs from the tape deck to the music
center TAPE REC OUTPUT jacks. Connect the outputs from the tape deck to the music
center TAPE PLAY INPUT jacks, matching the red plug to R (right) and black or white plug to
L (left).
CD changer, CDI player, DVD player, or laserdisc player
To use one of these components, connect its audio outputs to the music center AUX INPUT
jacks, matching the red plug to R (right) and black or white plug to L (left).
Turntable
To connect a turntable, you may need a phono preamplifier (with RIAA equalization). Consult
your dealer for the appropriate model. Connect the audio outputs of the phono preamplifier to
the music center AUX INPUT jacks, matching the red plug to R (right) and black or white plug
to L (left).
Note: The Lifestyle ® music system cannot turn a connected component on or off.
