6
English
Installation and important information
Where to install
Locate the television away from direct sunlight and
strong lights, soft, indirect lighting is recommended
for comfortable viewing. Use curtains or blinds to
prevent direct sunlight falling on the screen.

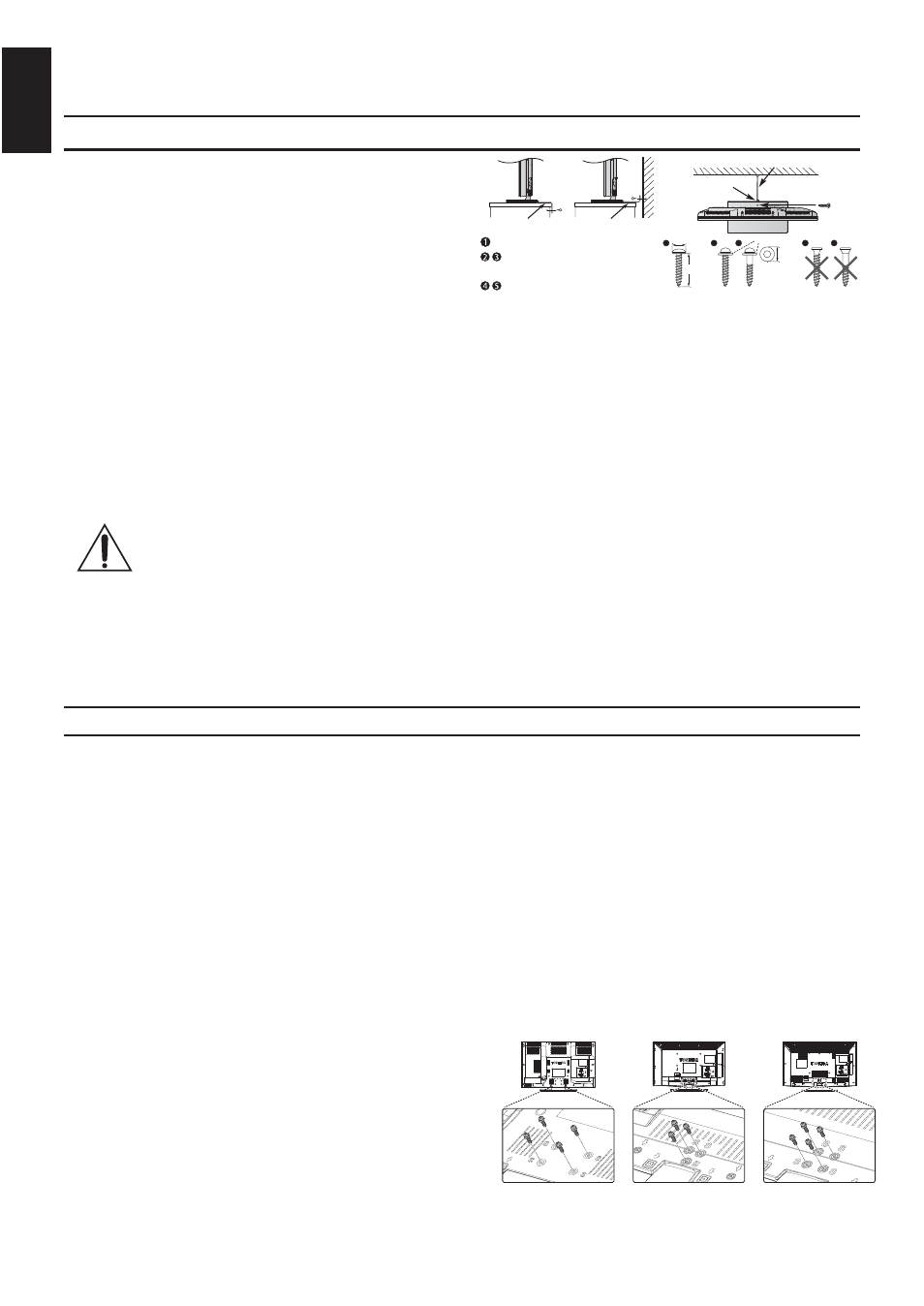

Place the TV set on a stable, level surface that can
support the weight of the TV. As an additional safety
measure you secure the TV to the level surface or a
wall, as shown in the illustration, using sturdy strap.
Otherwise secure the TV on the level surface using
the mounting screw.
The LCD display panels are manufactured using an
extremely high level of precision technology, how-
ever sometimes some parts of the screen may be
1 2 3 4 5
Sturdy tie (as short as possible)
Stand clip
Screw
(not supplied)
Fixing strap Fixing strap
‡ The screw type is dependent on the actual mounting surface.
The metric thread size is 3.8-4.1mm.
‡ Place the stand on a stable, level surface and secure the TV set
by using a single screw (not supplied) through the fall prevention
screw hole.
‡ 0DNH VXUH WR VHFXUH \RXU 79 VHW WR D ¿UP DQG DGHTXDWHO\ WKLFN
surface.
*Stand style is dependent on model
missing picture elements or have luminous spots. This is not a sign of a malfunction.
Make sure the television is located in a position it cannot be pushed or hit by objects, as pressure will
break or damage the screen. Also, please be certain that small items cannot be inserted into slots or
openings in the case.
Avoid using chemicals (such as air refreshers, cleaning agents, etc.) on or near the TV
pedestal. Studies indicate that plastics may weaken and crack over time from the combi-
nation effects of chemical agents and mechanical stress (such as weight of TV). Failure
to follow these instructions could result in serious injury and/or permanent damaged to TV
and TV pedestal.
Cleaning the screen and cabinet...
Turn off the power, and clean the screen and cabinet with a soft, dry cloth. We recommend that you
do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.
When using a Wall Bracket
Please use a wall bracket appropriate for the size and weight of the LCD TV.
‡ Two people are required for installation.
‡ To install a wall-mount from another manufacturer.
1. Unplug and remove any cables and/or other component connectors from the rear of the TV.
2. &DUHIXOO\ OD\ WKH IURQW RI WKH XQLW IDFH GRZQ RQ D ÀDW FXVKLRQHG VXUIDFH VXFK DV D TXLOW RU EODQNHW
3. Follow the instructions provided with your wall bracket. Before proceeding, make sure the appro-
priate bracket(s) are attached to the wall and the back of the TV as described in the instructions
provided with the wall bracket.
4. Always use the screws supplied or recommended by the wall mount manufacturer.
Removing the Pedestal Stand:
1. Carefully lay the front of the unit face down on
D ÀDW FXVKLRQHG VXUIDFH ZLWK WKH VWDQG KDQJLQJ
over the edge.
32AV93*G |
32/40LV93*G x 4
26EL93*G x 3
32EL93*G x 4 |
32/40HL93*G x 4
2. Remove the screws.
3. After the screws are removed, hold the pedestal
stand in place, then remove it from the TV by
sliding away from the bottom of the TV.
NOTE: Extreme care should always be used when
removing the pedestal stand to avoid dam-
age to the LCD panel.
9~10mm
10mm
/ • PP
metal washer Panhead Screw: advised
Roundhead / Ovalhead Screw:
a washer is required
Flathead screw: cannot be used
