Legal Footnote (Wireless LAN)
For more information regarding Wireless LAN, please refer to the
section.
TOSHIBA Keyboard Dock

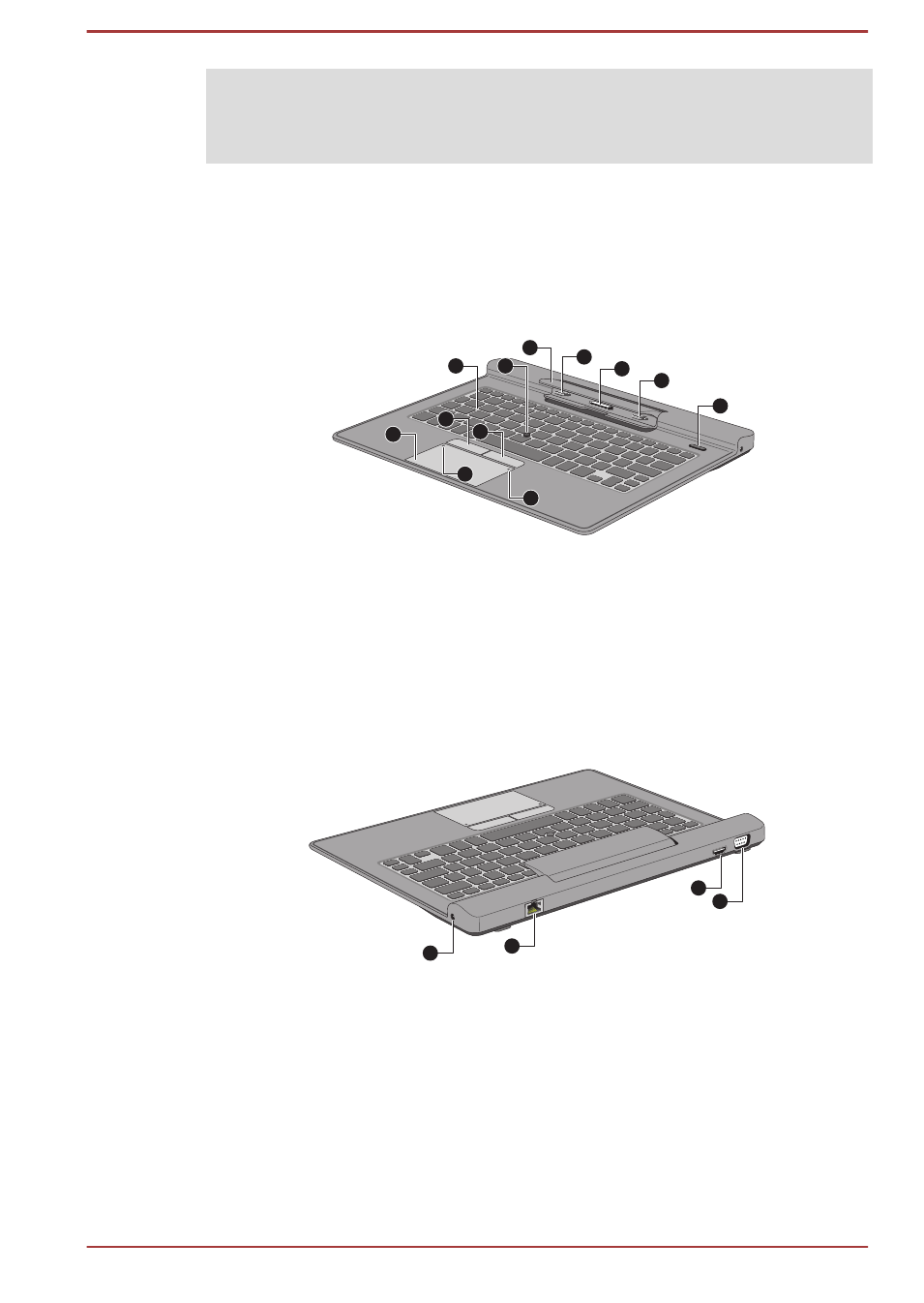

The following figure shows each important component of the keyboard
dock.
Figure 3-2 Front view of the keyboard dock
4
2
3
1
5
7
8
12
11
9
10
6
1. Touch Pad
7. AccuPoint
2. Touch Pad ON/OFF indicator
8. Computer holder
3. TOSHIBA eco indicator
9. Hook
4. Touch Pad control button
10. Docking connector
5. Touch Pad control button
11. Hook
6. Keyboard
12. Eject button
Product appearance depends on the model you purchased.
Figure 3-3 Back view of the keyboard dock
13
14
15
13. DC IN 19V jack
15. HDMI port
14. LAN jack
16. External RGB monitor port
Product appearance depends on the model you purchased.
