13 Setting up the sewing computer

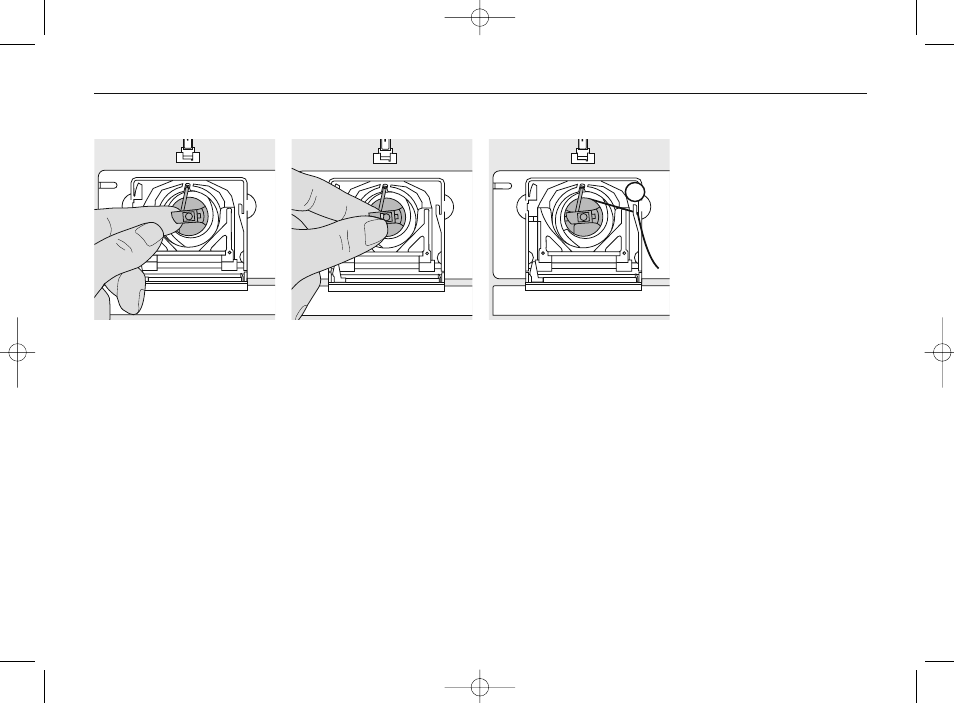

Bobbin case
To remove the bobbin case
• raise the needle
•
turn power switch to «0»
•
open the bobbin cover
•
grasp the latch of the bobbin
case
• remove case
To insert the bobbin case
• hold the bobbin case latch
•
the finger on the case should
point upwards
•
insert so that it clicks into
place
Bobbin thread cutter
• insert the bobbin case
•
take the thread over cutter A
•
thread is cut
•
close the bobbin cover
Note:
The bobbin thread does not
have to be brought up as
the loose end is just the right
length to start sewing.
Refer to the safety instruction!
A
