The Grand Tour
Front with the display open
This section shows the computer with the LCD display panel open. Refer to
the appropriate illustration for details. To open the display, slide the display
latch on the front of the LCD display panel and lift up. Position the LCD
display panel at a comfortable viewing angle.

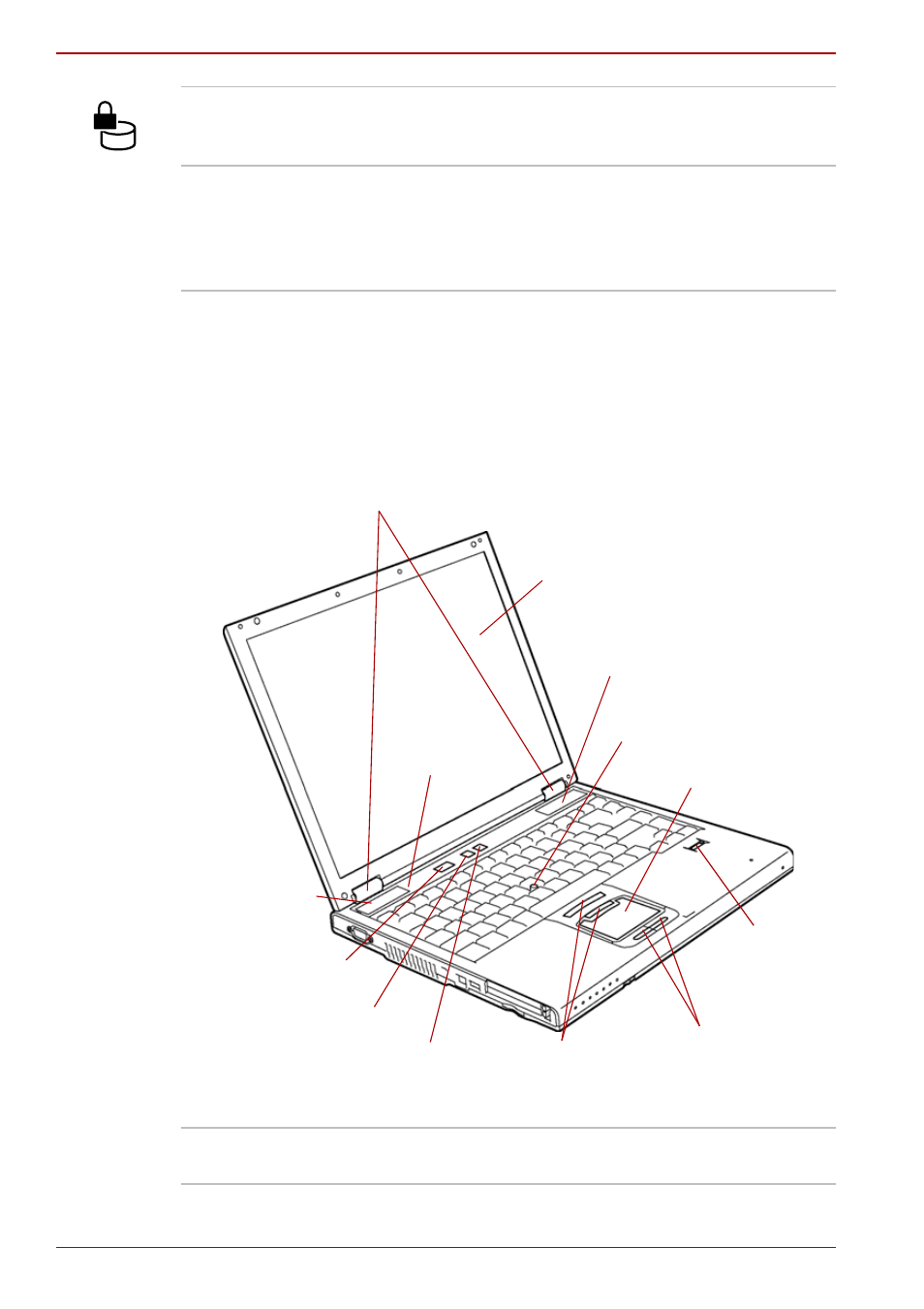

The front of the computer with the LCD panel open
HDD pack cover
screw
One screw secures the HDD cover.
Hard disk drive
cover
A HDD disk drive pack is under this, which can
be removed and reinstalled. For more
information on how to remove or reinstall the
, refer to the section on the
in Chapter 8,
Display screen
Display hinges
AccuPoint
Touch Pad
control buttons
Stereo speaker
(Left)
LCD Sensor switch
(Not shown)
TOSHIBA Presentation button
Power button
Fingerprint
Sensor
Stereo speaker (Right)
TOSHIBA Assist button
AccuPoint control button
Touch Pad
Display hinge
The display hinge holds the LCD display panel at
easy-to-view angles.
