GREASING PROCEDURES
TO THE DRIVING CHAIN
1. Shut off the engine
2. Add light amounts of machine oil or chain grease to the driving chain. (Too
much machine oil or chain grease may cause splattering to occur.)
Attention:
The chain should be replaced when the adjusting limit has reached it’s maximum.
ADJUSTMENT OF CHAIN
1. When chain adjustment is needed, loosen 4 bolts under engine.
2. Move engine forward to tighten chain or backward to loosen chain.
3. Tighten bolts under engine Torque bolts to 25 ft./lbs.
4. Repetitively check tension of chain.

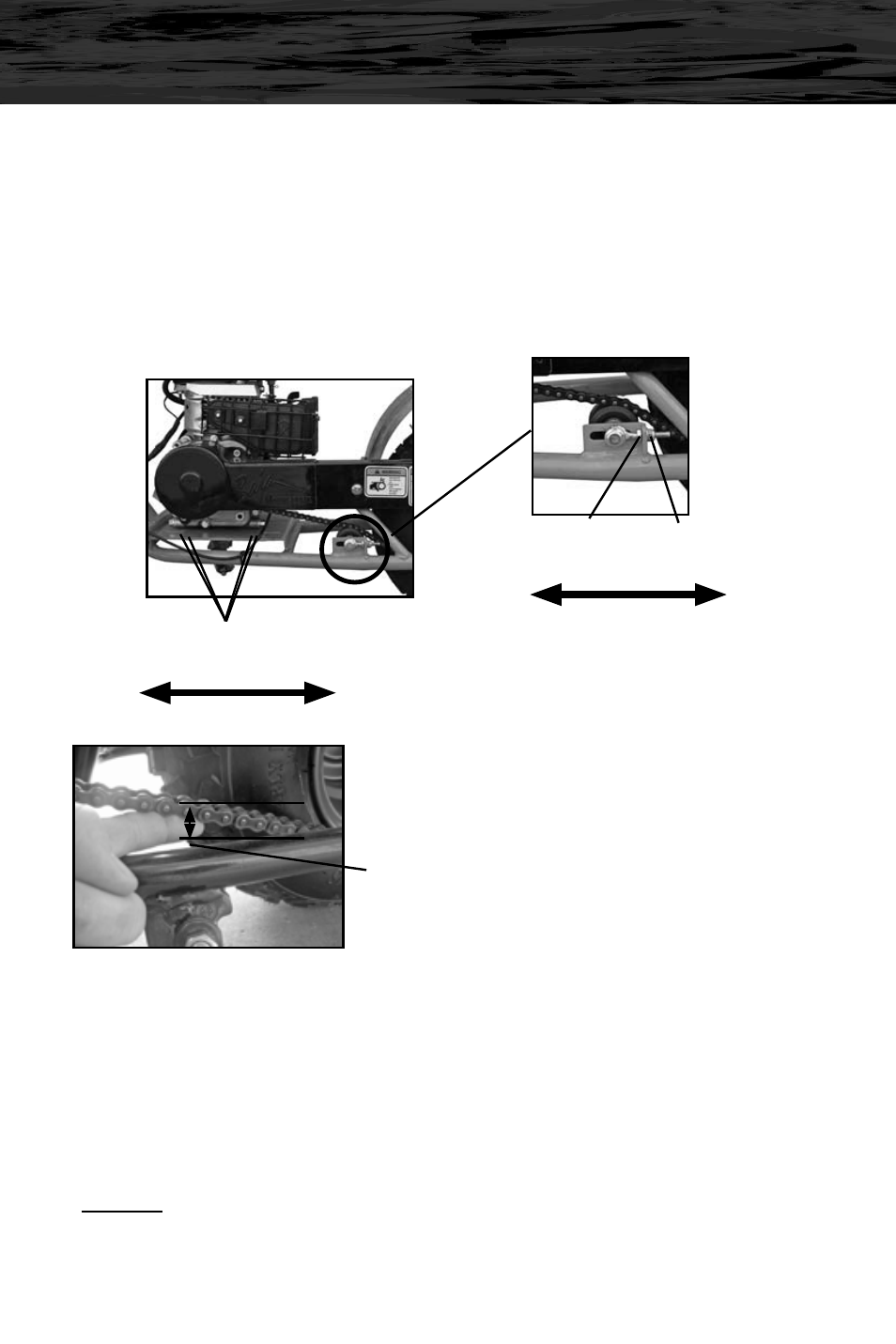

MINOR CHAIN
ADJUSTMENT
1. When minor chain adjustment
is needed, loosen “Nut 2”. Turn
“Nut 1” clockwise to tighten
chain or counterclockwise to
loosen chain.
2. When adjustment is
accomplished, tighten Nut 2.
19-25mm
3/4 in. - 1 in.
Engine adjusting bolts
Tighten
Chain
Loosen
Chain
Nut 1 Nut 2
Loosen
Chain
Tighten
Chain
